2WD Model

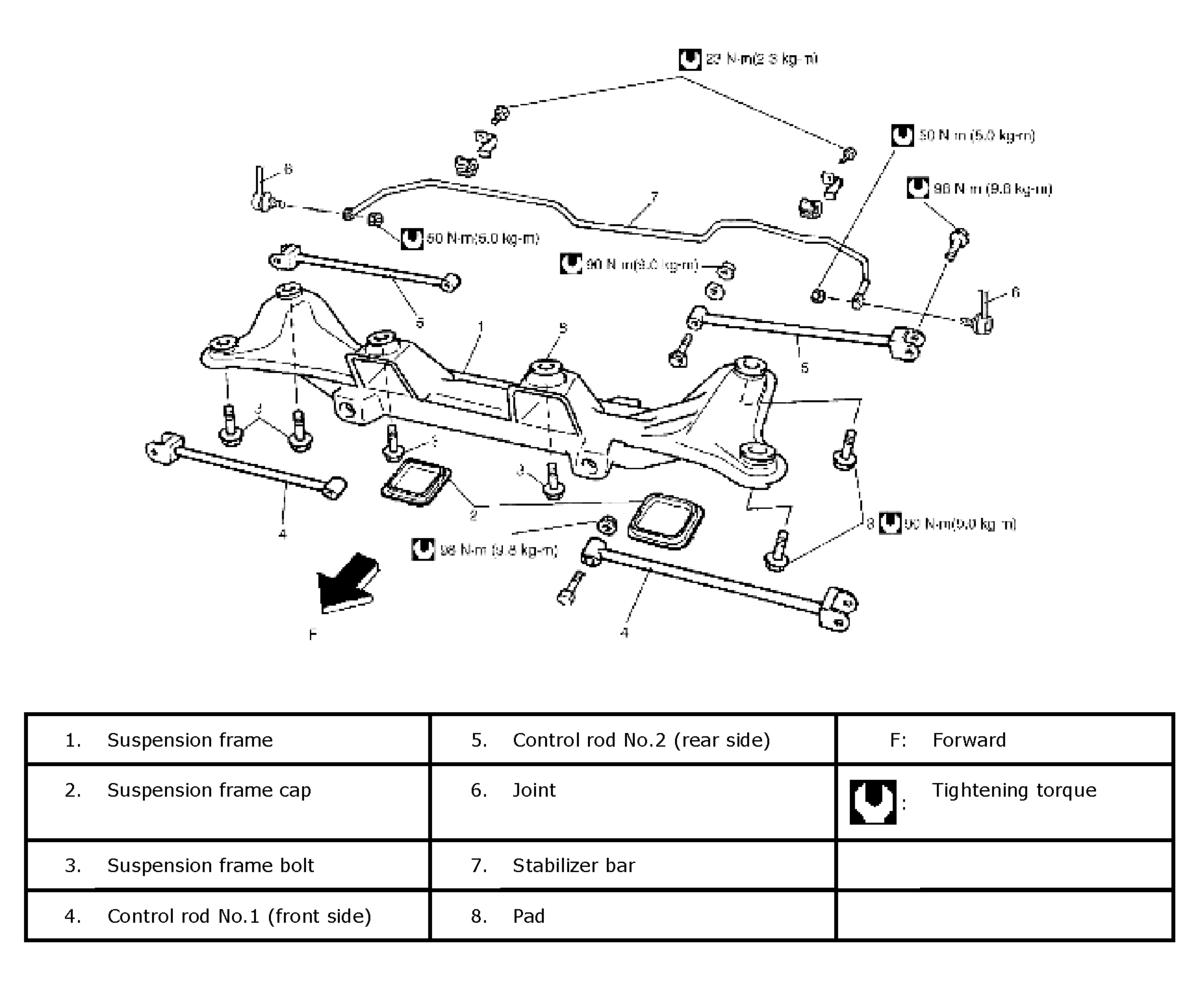

Fig 1: Identifying Rear Suspension Frame Components (2WD Model) (With Tightening Torques)
G04590209Courtesy of SUZUKI OF AMERICA CORP.
