Rear Stabilizer Bar and/or Bushings Components

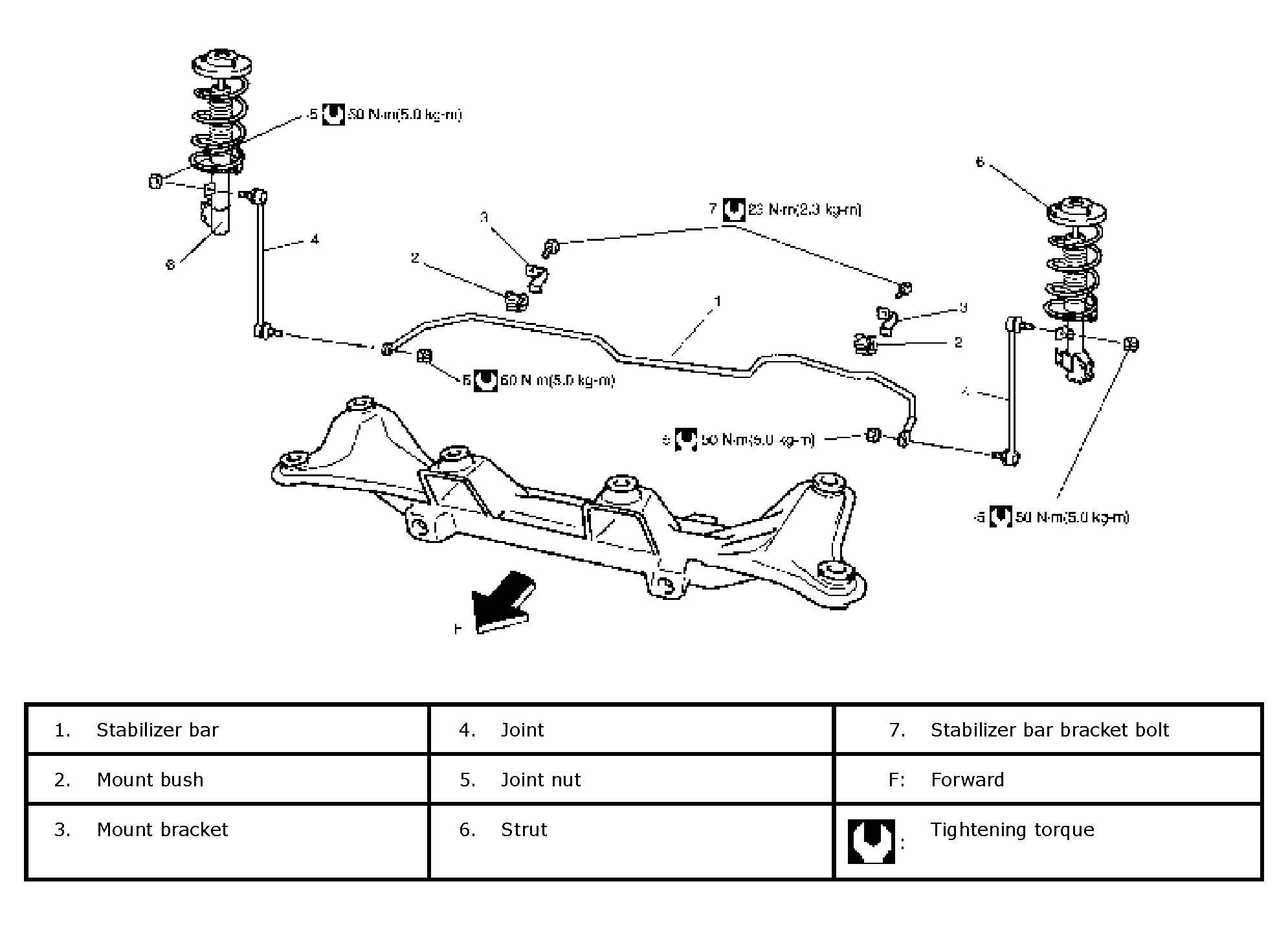

Fig 1: Identifying Rear Stabilizer Bar And/Or Bushings Components (With Tightening Torques)
G04590182Courtesy of SUZUKI OF AMERICA CORP.
