Suspension Control Arm / Bushing Removal and Installation: Removal

  1. Remove suspension control arm ball joint bolt (1) and nut (2).
    Fig 1: Removing Suspension Control Arm Ball Joint Bolt And Nut
    G04590148Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove suspension control arm bolts (1).
  3. Remove suspension control arm (2).

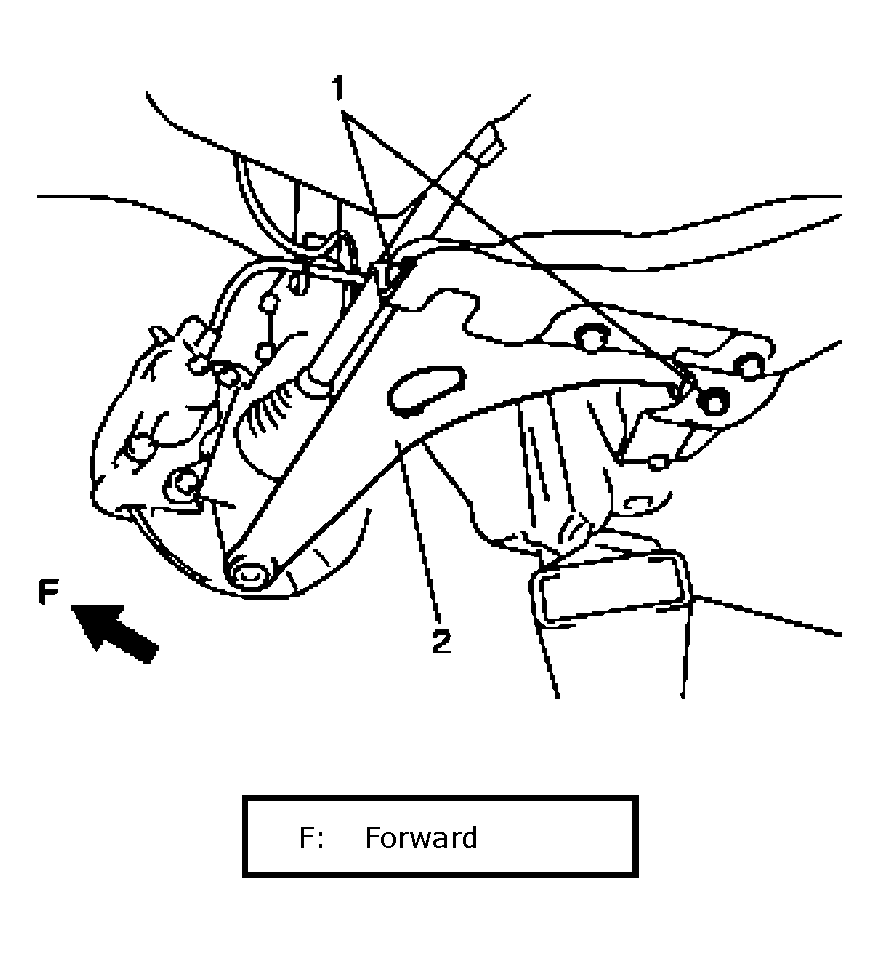

    Fig 2: Removing Suspension Control Arm
    G04590149Courtesy of SUZUKI OF AMERICA CORP.
