Front Wheel Hub and Steering Knuckle Removal and Installation: Installation
For installation, reverse removal procedure, noting the following instructions.
- Using special tool, drive wheel hub (1) into steering knuckle (2) and then install steering knuckle (2) to strut and lower ball joint.
Special Tool
(A): 09913-75520

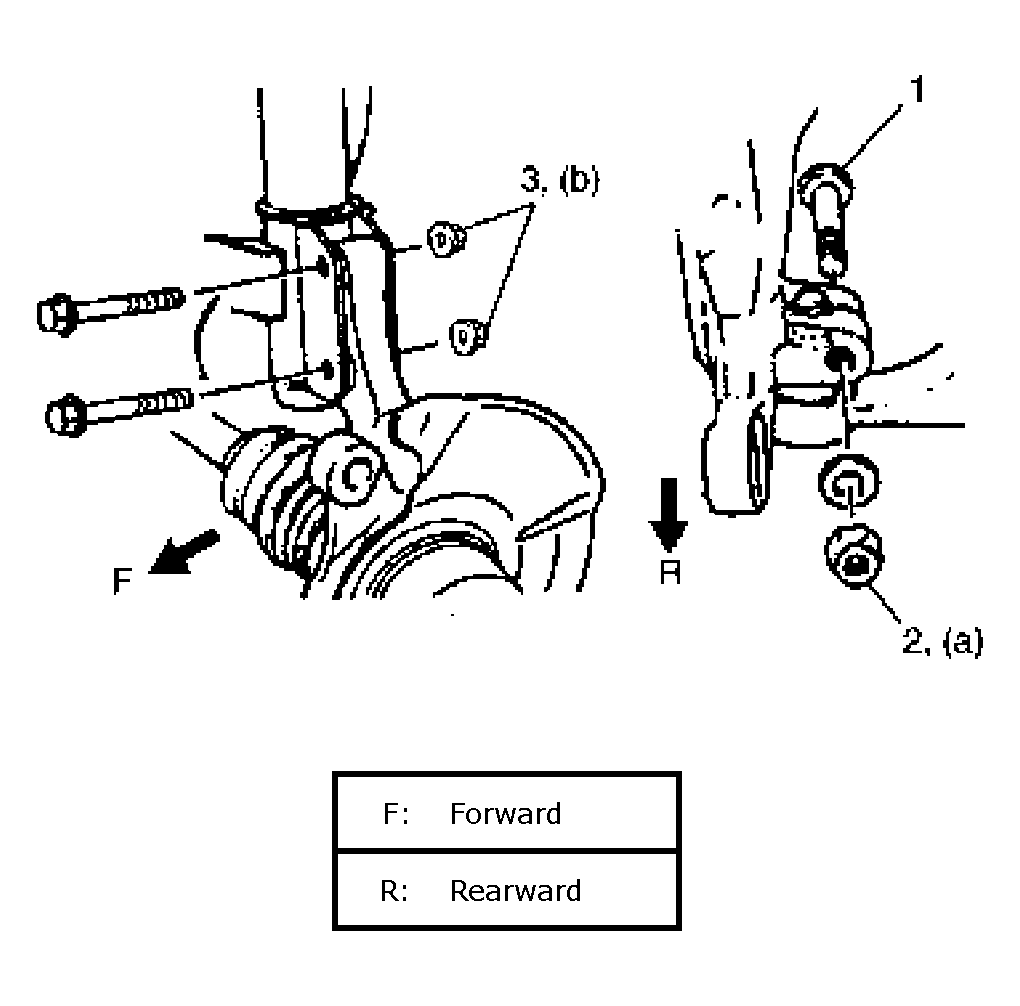

CAUTION: Replace wheel bearing with new one whenever the wheel hub has been removed. - Install ball joint bolt (1) and nut (2) from the direction as shown.
- Tighten suspension arm ball joint nut (2) to specified torque.
Tightening torque
Suspension arm ball joint nut a: 60 N.m (6.0 kg-m, 43.5 lb-ft)
- Tighten strut bracket nuts (3) to specified torque.
Tightening torque
Strut bracket nut b: 105 N.m (10.5 kg-m, 76.0 lb-ft)

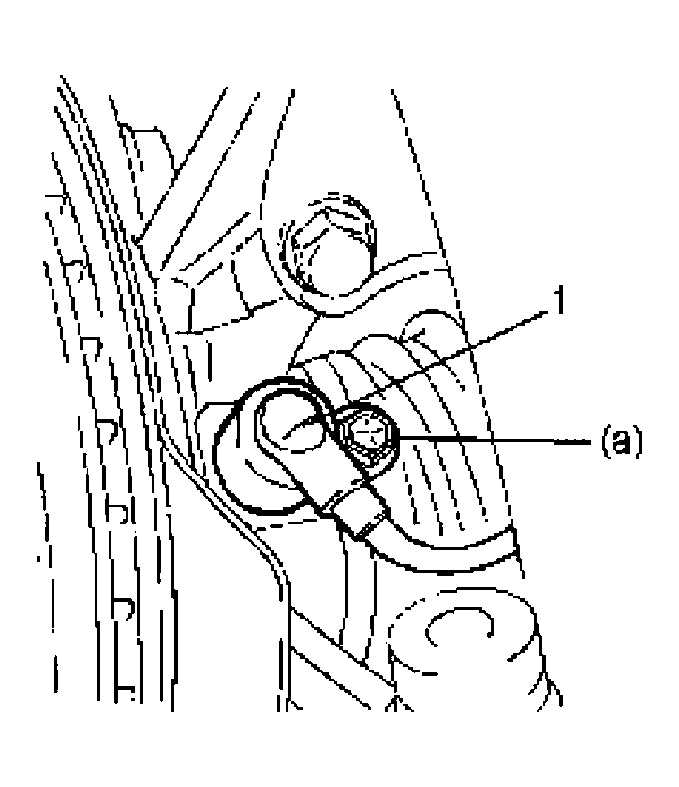

- Install ABS wheel speed sensor (1) (if equipped with ABS).
Tightening torque
ABS wheel speed sensor mounting bolt a: 23 N.m (2.3 kg-m, 17.0 lb-ft)
- Connect tie-rod end (1) to steering knuckle (2). Tighten castle nut (3) until holes for split pin (4) are aligned, but only within specified torque.
Tightening torque
Tie-rod end castle nut a: 45 N.m (4.5 kg-m, 32.5 lb-ft)
- Install new split pin (4).

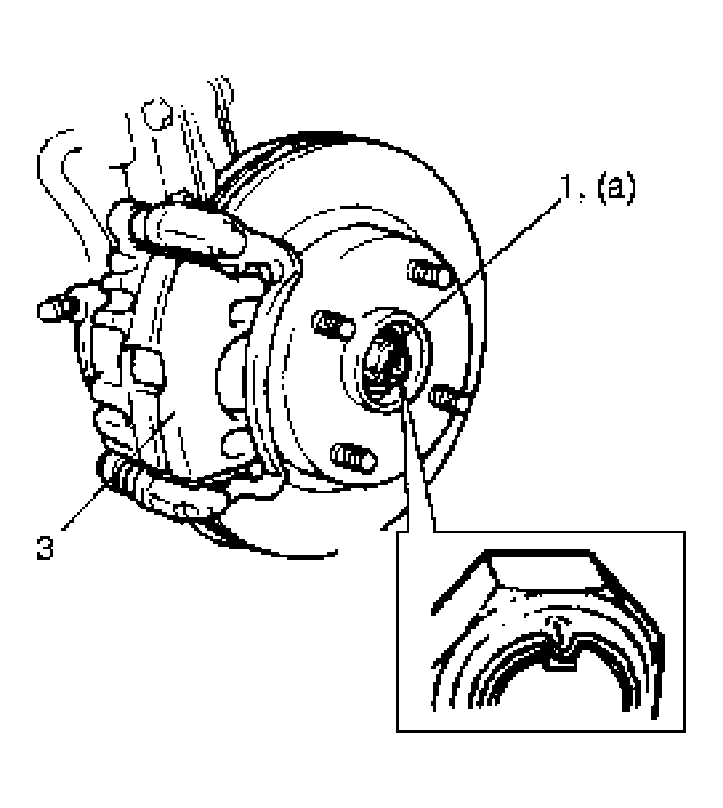

- Install brake caliper (3).
- Tighten caliper carrier bolt to specified torque.
Tightening torque
Caliper carrier bolt: 85 N.m (8.5 kg-m, 61.5 lb-ft)
- Depress foot brake pedal and hold it there.
Tighten new drive shaft nut (1) to specified torque.
Tightening torque
Drive shaft nut a: 175 N.m (17.5 kg-m, 127.0 lb-ft)
CAUTION: Never reuse drive shaft nut (1). - Caulk drive shaft nut (1) as shown.CAUTION: Be careful while caulking nut so that no crack will occur in caulked part of nut. Cracked nut must be replaced with new one.
- Tightening wheel nut to specified torque.
Tightening torque
Wheel nut: 85 N.m (8.5 kg-m, 61.5 lb-ft)
