Front Wheel Hub and Steering Knuckle Disassembly and Assembly: Disassembly

Uncaulk and remove dust cover (1).

Fig 1: Removing Dust Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove circlip.
Using hydraulic press (1) and special tool, remove wheel bearing.
Special Tool

(A): 09913-75520

CAUTION: When installing wheel bearing, replace it with new one.

Fig 2: Pressing Wheel Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Remove wheel bearing outside inner race (1).
Special Tool
1. (C): 09913-65810
2. (D): 09913-85230

  Fig 3: Removing Wheel Bearing Outside Inner Race
  Courtesy of SUZUKI OF AMERICA CORP.

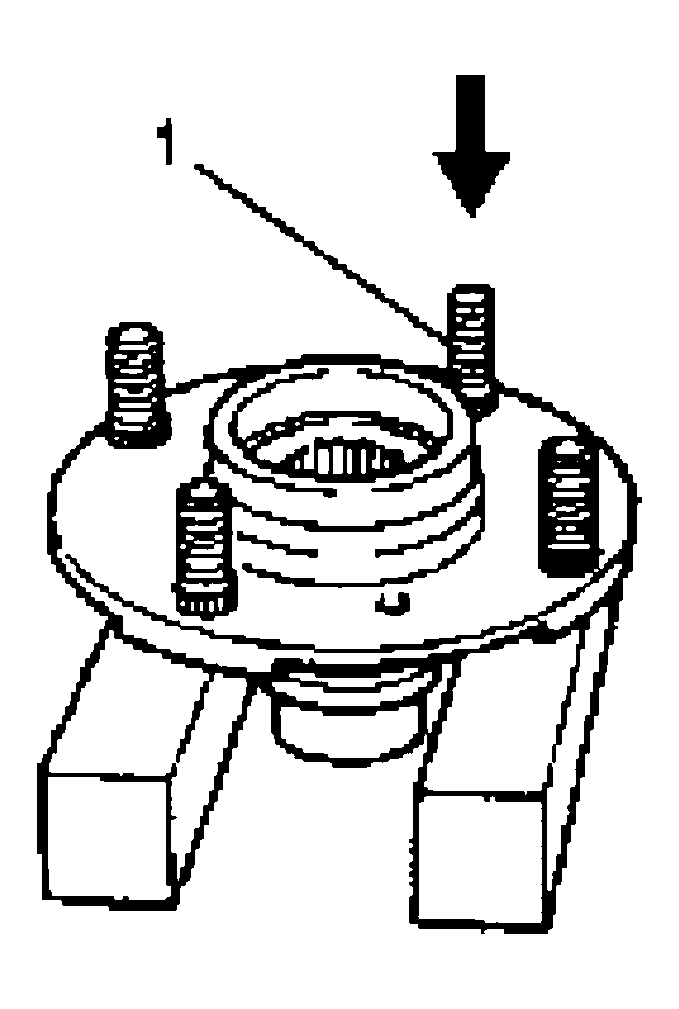

Remove hub bolts (1) with copper hammer or hydraulic press.
CAUTION: Never remove bolt unless replacement is necessary.
Be sure to use a new bolt for replacement.

Fig 4: Removing Hub Bolts
Courtesy of SUZUKI OF AMERICA CORP.
