Steering Angle Check and Adjustment

When tie-rod or tie-rod end was replaced, check toe and then also steering angle with turning radius gauge (1).

If steering angle is not correct, check if right and left tie-rods are equal in length "A".

Steering angle

Inside: 37.5 °+/- 3 °

Outside: 32.5 °+/- 3 °

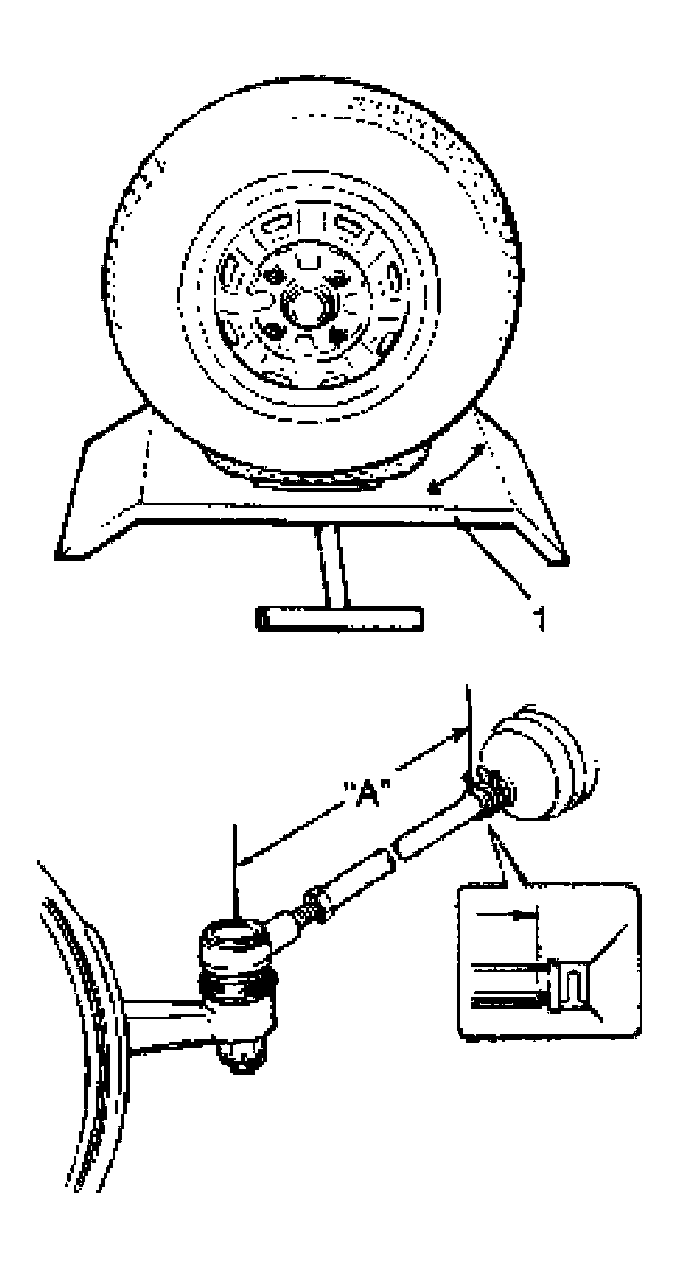

Fig 1: Checking Steering Angle

Courtesy of SUZUKI OF AMERICA CORP.
