Front Suspension Frame Removal and Installation: Installation

Reference: FRONT SUSPENSION FRAME CHECK

1. Install suspension frame (1) to body, and tighten bolt to specified torque.

   Tightening torque

   Suspension frame mounting bolt a: 90 N.m (9.0 kg-m, 65.0 lb-ft)

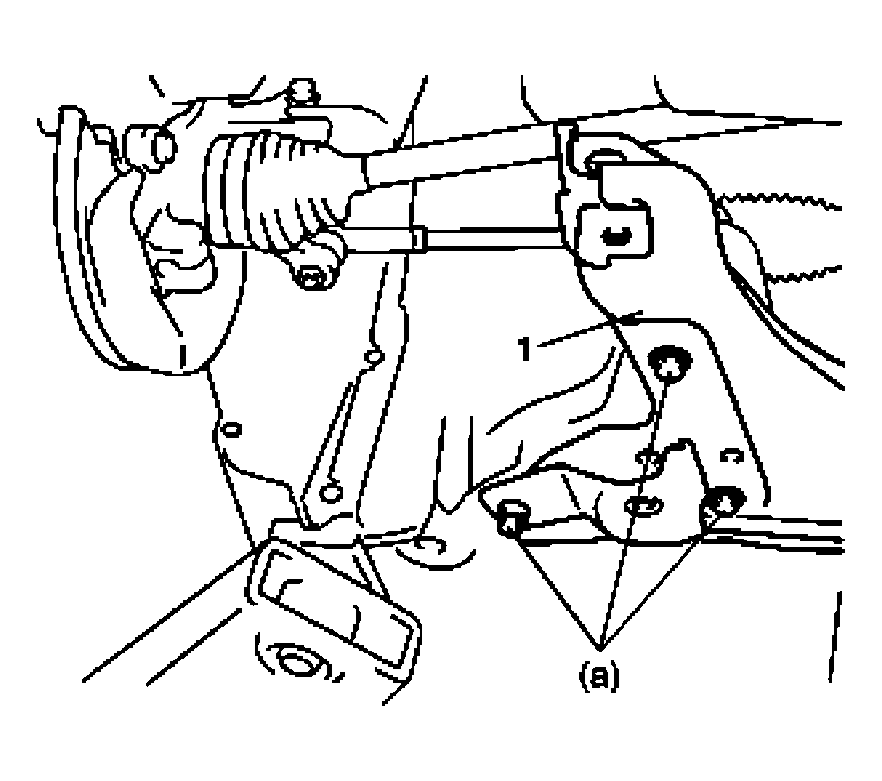

   Fig 1: Installing Suspension Frame To Body

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install mounting member (2), spacers and cushions to suspension frame (1) if removed and tighten bolts and nuts to specified torque.

   Tightening torque

   Mounting member nut b: 55 N.m (5.5 kg-m, 40.0 lb-ft)

   Engine rear mounting nut g: 45 N.m (4.5 kg-m, 33.0 lb-ft)

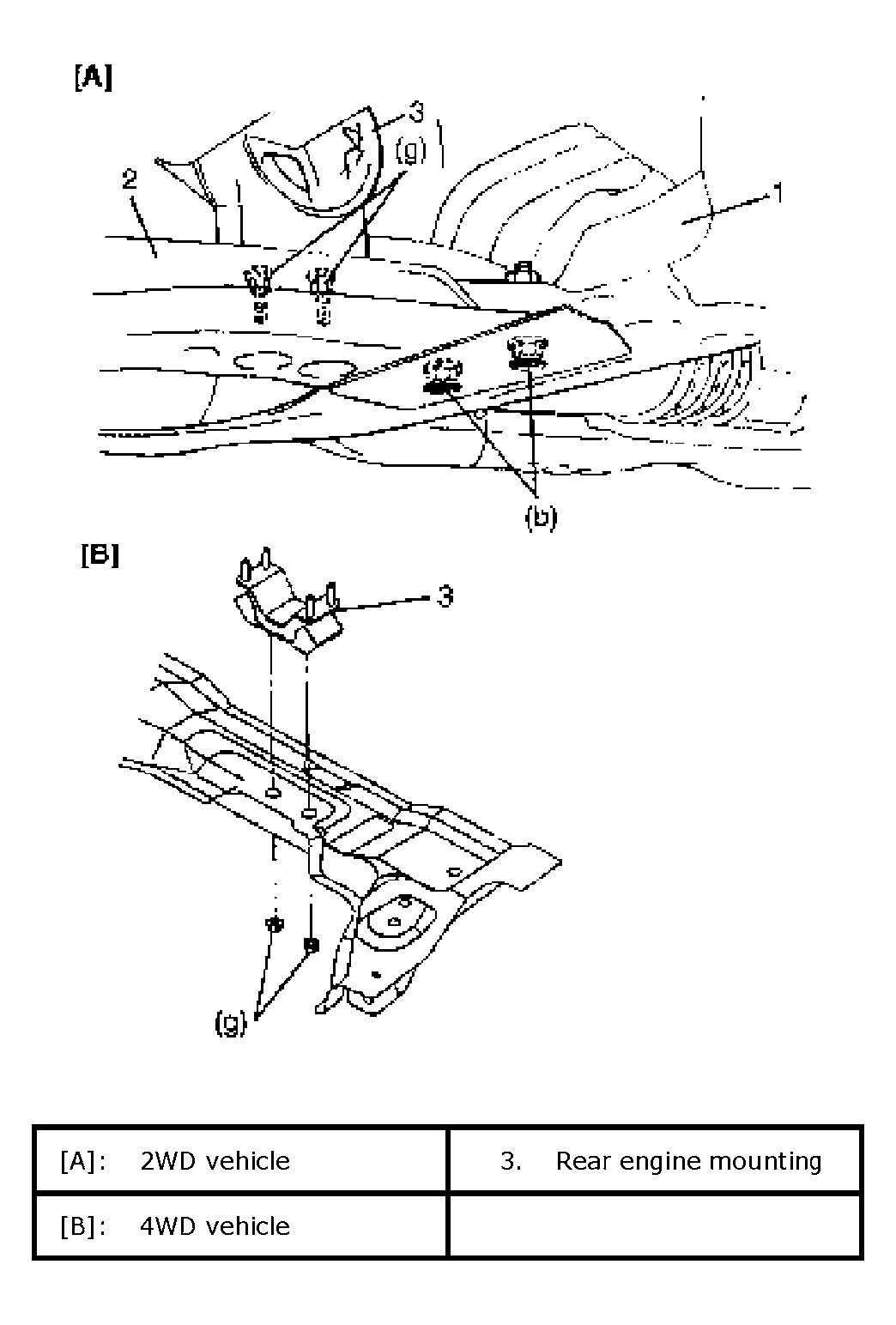

   Fig 2: Installing Mounting Member Spacers And Cushions To Suspension Frame

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install suspension arms (2) (right & left). Refer to SUSPENSION CONTROL ARM / BUSHING REMOVAL AND INSTALLATION .
4. Install stabilizer bar (3). Refer to FRONT STABILIZER BAR AND/OR BUSHINGS REMOVAL AND INSTALLATION .
5. Tighten bolts and nuts to each specified torque.

   Tightening torque

   Control arm mounting bolt c: 90 N.m (9.0 kg-m, 65.0 lb-ft)

   Suspension arm ball joint nut d: 60 N.m (6.0 kg-m, 43.5 lb-ft)

   Stabilizer bar mounting bracket bolt e: 23 N.m (2.3 kg-m, 17.0 lb-ft)

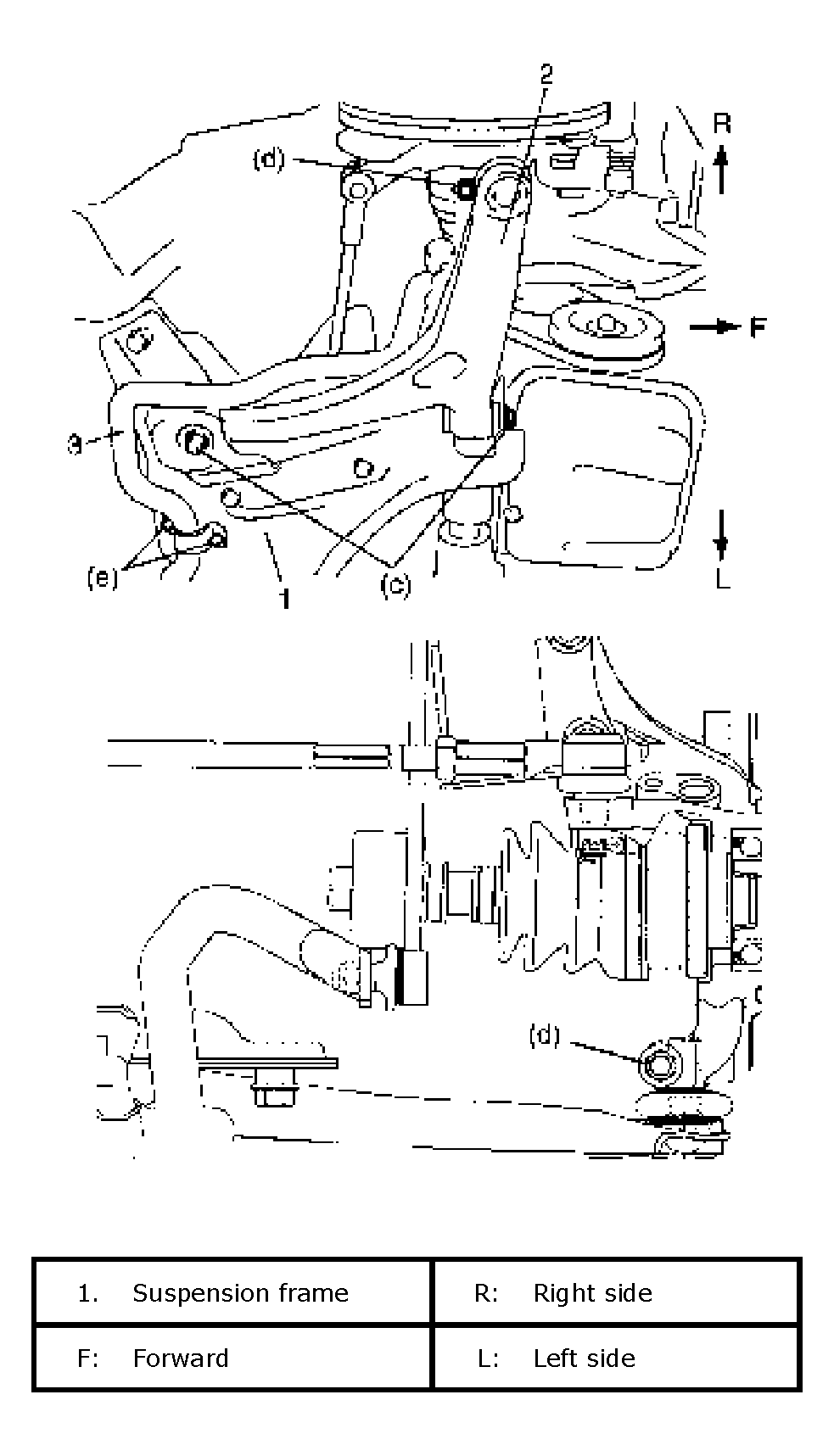

   Fig 3: Installing Stabilizer Bar

   Courtesy of SUZUKI OF AMERICA CORP.
6. Install wheels (right & left) and lower hoist.
7. Confirm front wheel alignment referring to FRONT WHEEL ALIGNMENT INSPECTION AND ADJUSTMENT .
