Front Stabilizer Bar and/or Bushings Removal and Installation: Removal

  1. Remove stabilizer joints.

    When loosening joint nut, hold stud with wrench.

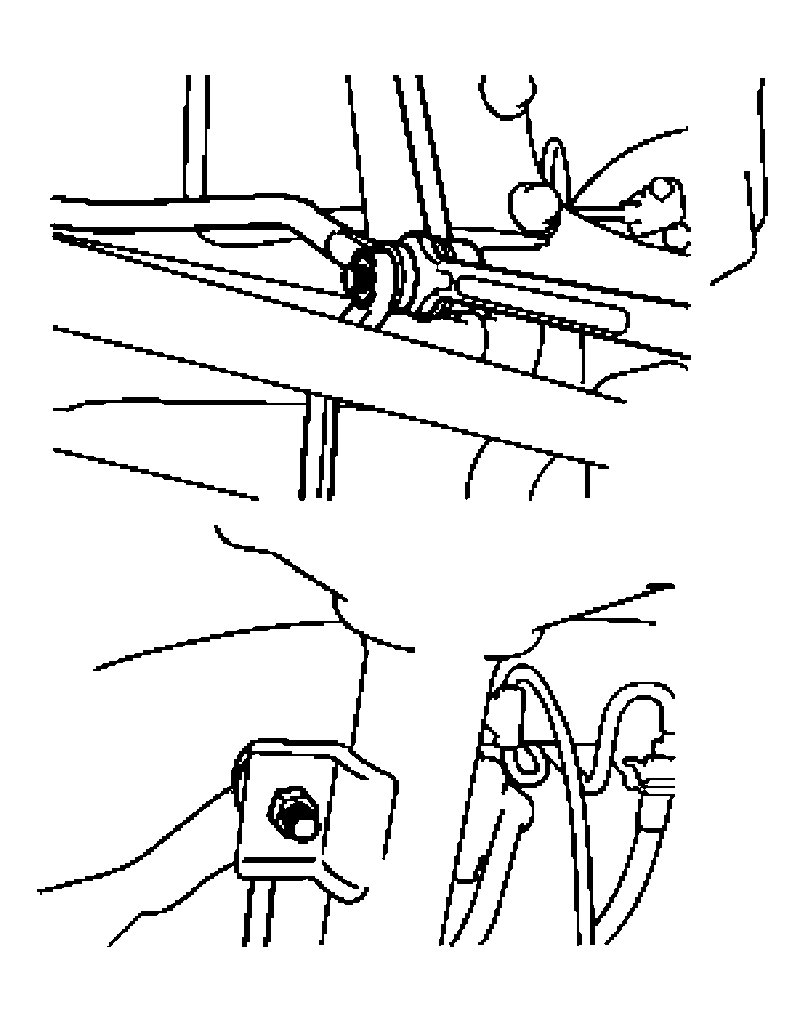

    Fig 1: Removing Stabilizer Joints
    G04590107Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove stabilizer mount brackets.
  3. Remove stabilizer.
