Front Seat Belt Removal and Installation: Installation

Reference: FRONT SEAT BELT INSPECTION

Install in reverse order of removal, noting the following.

• Seat belt anchor bolts should have an unified fine thread (7/16-20 UNF). Under no circumstances should any different sized or metric screw threads be used.
• Connect Yellow connector (1) to seat belt pretensioner securely.
  1. Connect connector.
  2. Lock connector with lock slider (2).

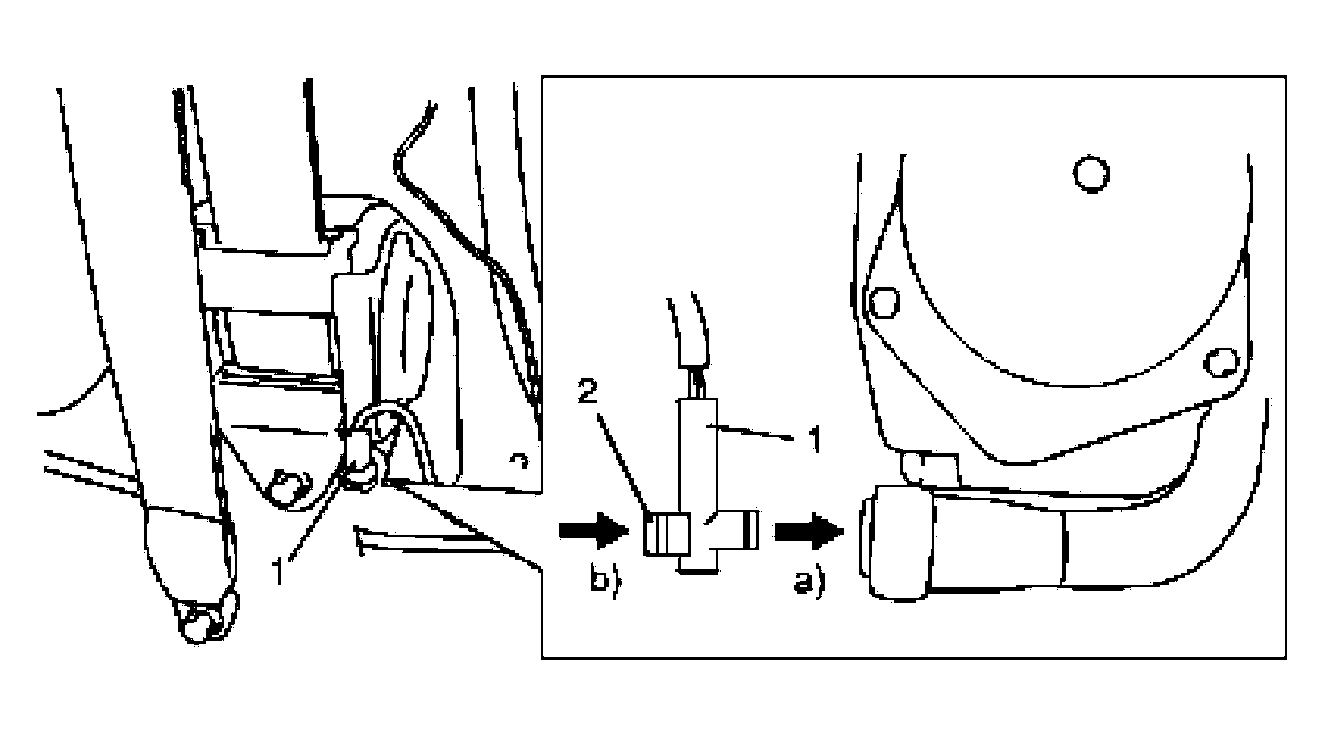

     Fig 1: Installing Front Seat Belt

     Courtesy of SUZUKI OF AMERICA CORP.
• Enable air bag system. Refer to AIR BAG SYSTEM -- AERIO article.
