Seat Belt Construction: Notes

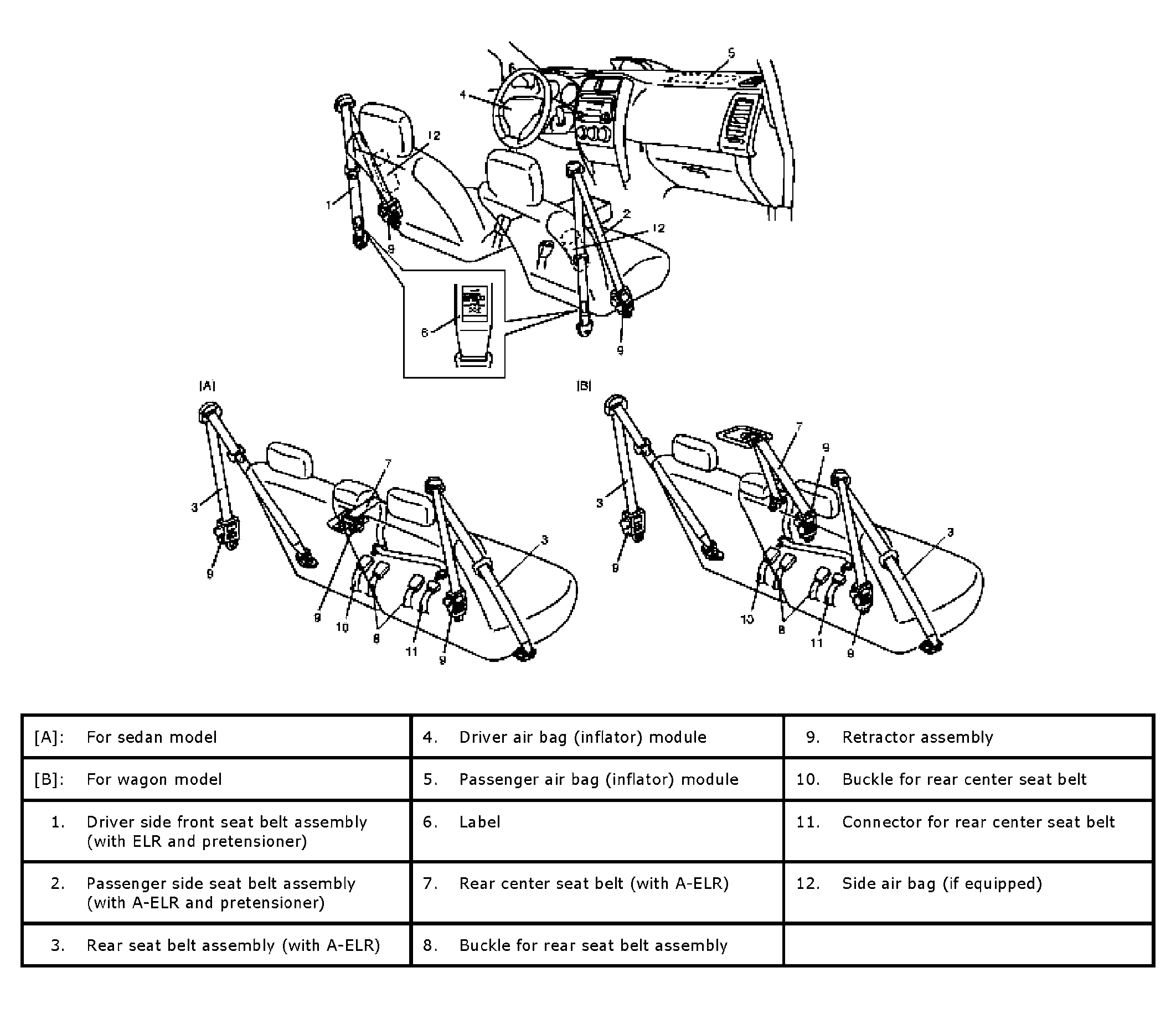

Fig 1: Identifying Seat Belt Construction
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
