Side Air Bag (Inflator) Module Removal and Installation: Installation

Connect side air bag (inflator) module connector as shown in the figure.
1. Connect connector.
2. Lock connector with lock button.

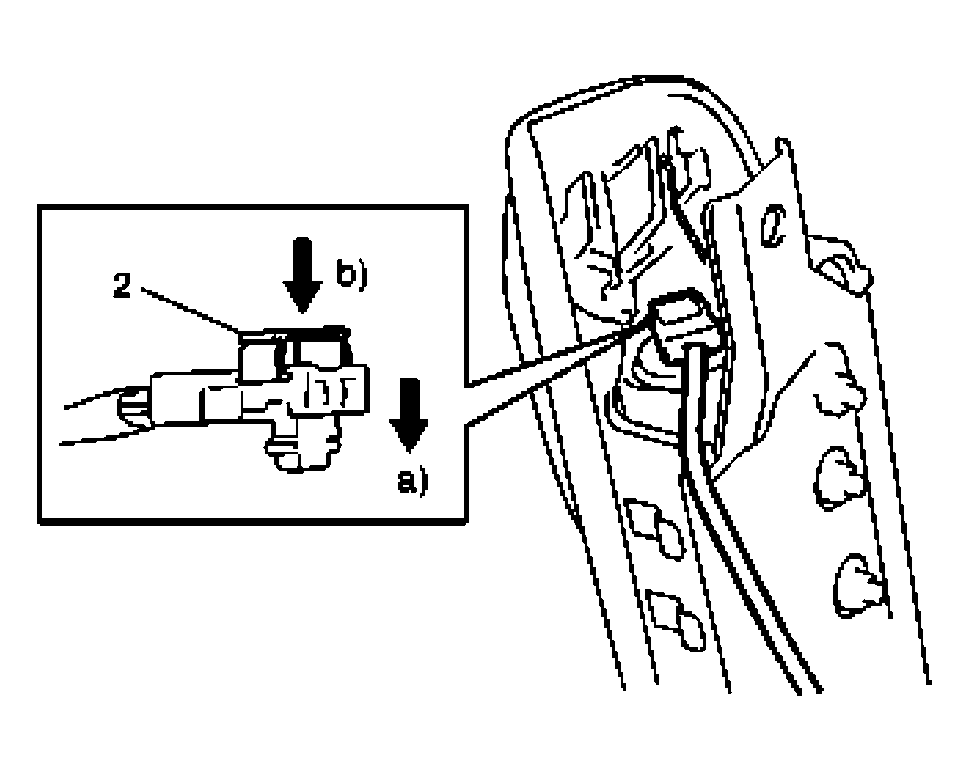

  Fig 1: Connecting Side Air Bag (Inflator) Module Connector
  Courtesy of SUZUKI OF AMERICA CORP.
Install side air bag (inflator) module as follows.
1. Hang claw (1) of side air bag (inflator) module on installation hole (2).
2. Tighten side air bag (inflator) module mounting bolt to specified torque.
3. Install side air bag (inflator) module cover.
  Tightening torque

  Side air bag (inflator) module mounting bolt a: 23 N.m (2.3 kg-m, 16.5 lb-ft)

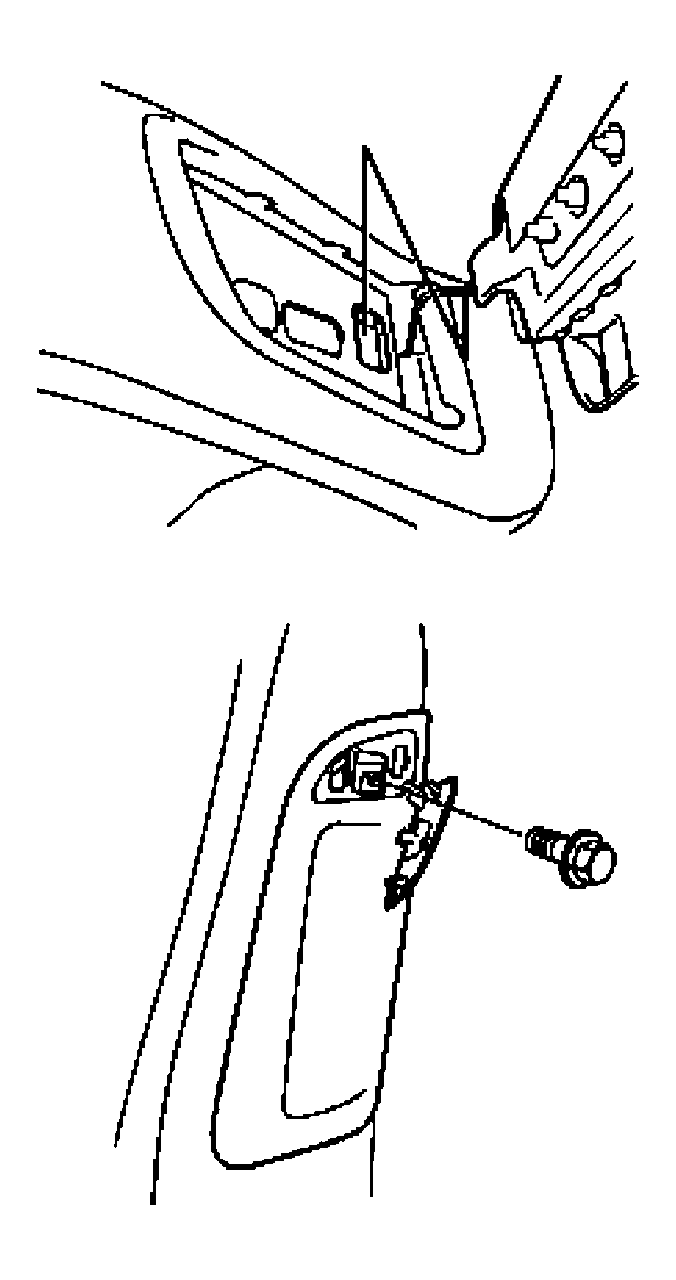

  Fig 2: Installing Side Air Bag (Inflator) Module
  Courtesy of SUZUKI OF AMERICA CORP.
