Seat Position Sensor Inspection

Reference: SEAT POSITION SENSOR REMOVAL AND INSTALLATION: ADVANCED AIR BAG

• Check sensor and its bracket for dents, cracks, deformation or rust.
• Check sensor connector (sensor side and harness side) and sensor connector lock mechanism for damage or crack.
• Check connector terminals for bend, corrosion or rust.

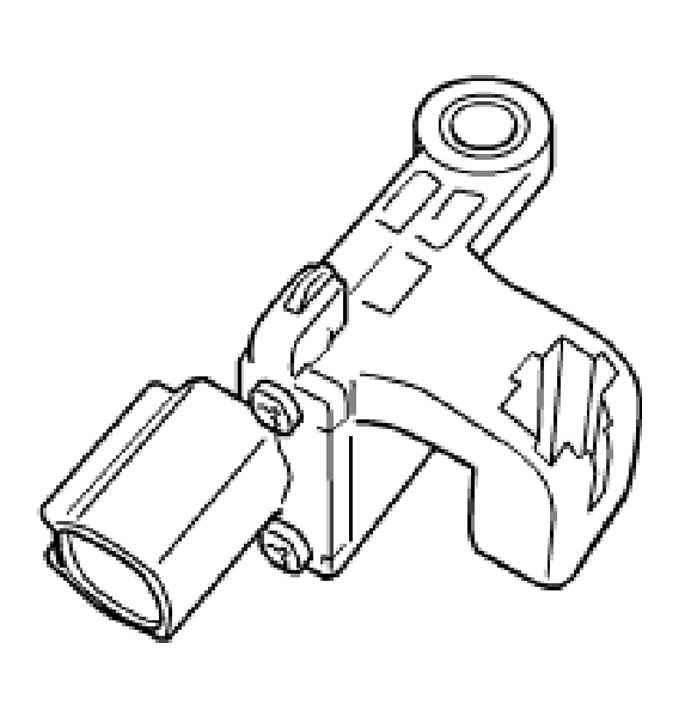

  Fig 1: Identifying Seat Position Sensor Bracket

  Courtesy of SUZUKI OF AMERICA CORP.
