Enabling Air Bag System
- Confirm that battery negative (-) cable is disconnected.
- Turn ignition switch to "LOCK" position and remove key.

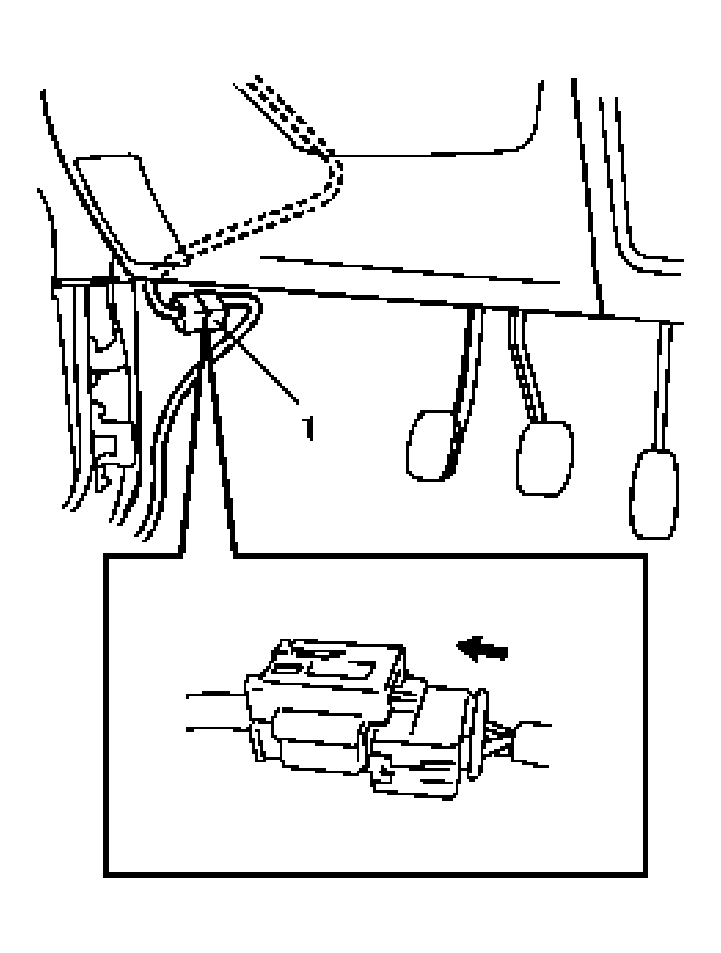

- Connect yellow connector (1) of contact coil and combination switch assembly by pushing connector till clicks heard from it.
Courtesy of SUZUKI OF AMERICA CORP.

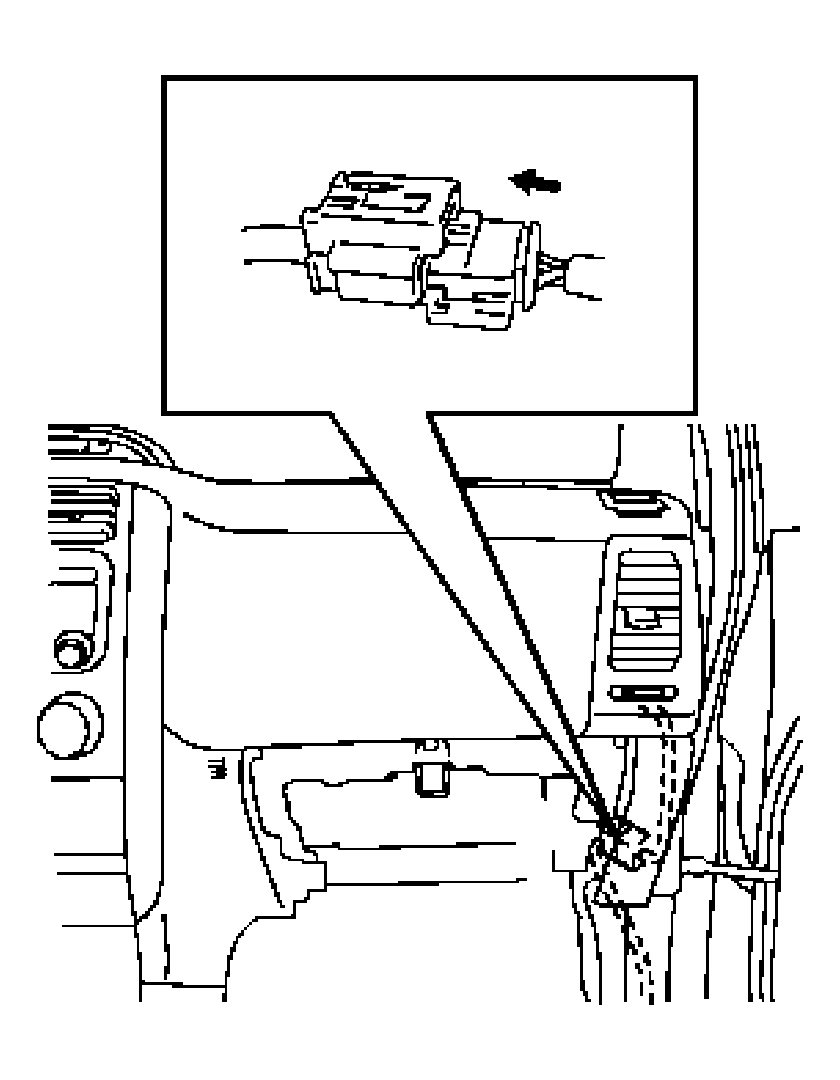

- In case of passenger air bag (inflator) module, connect yellow connector (1) of passenger air bag (inflator) module by pushing connector till click is heard from it.
Courtesy of SUZUKI OF AMERICA CORP.
- Install glove box.

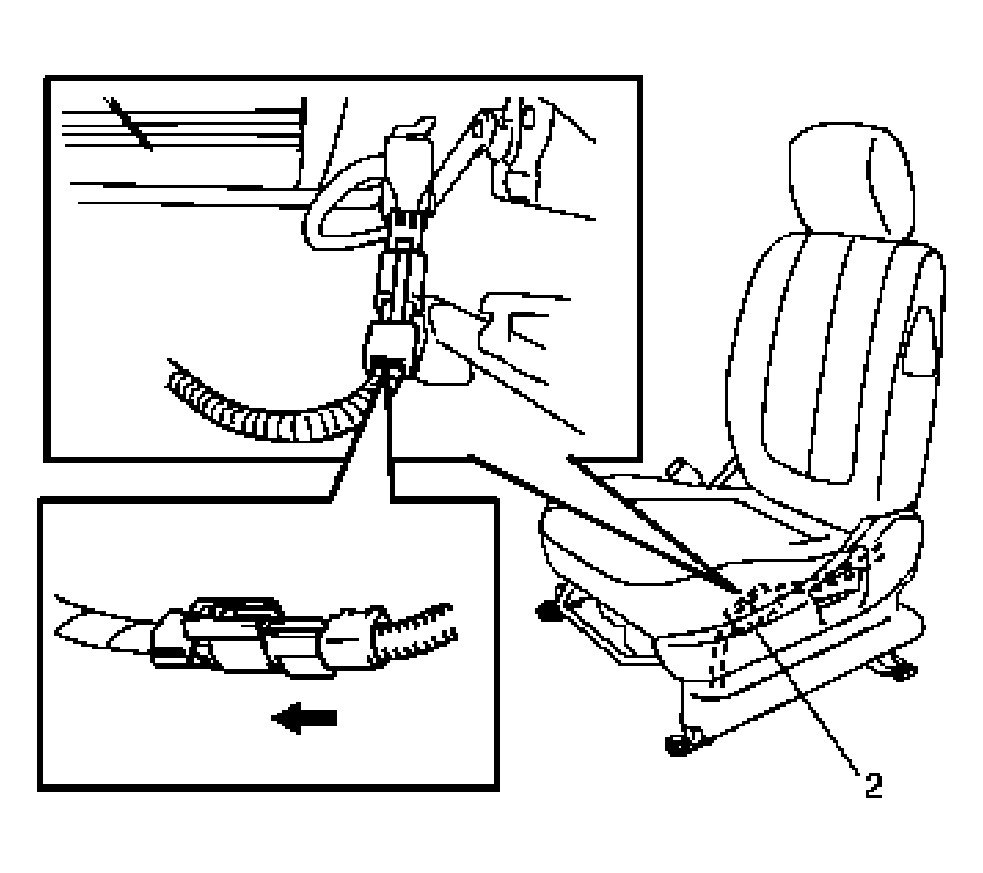

- If equipped with side air bag (inflator) module, connect yellow connector (2) of side air bag (inflator) module by pushing connector till click is heard from it.
Courtesy of SUZUKI OF AMERICA CORP.
- Install "AIR BAG" fuse to fuse box.
- Connect negative (-) cable at battery.
- Turn ignition switch to ON position and verify that "AIR BAG" warning lamp flashes 6 times and then turns OFF. If it does not operate as described, perform AIR BAG DIAGNOSTIC SYSTEM CHECK: ADVANCED AIR BAG .
