Not Using SUZUKI Scan Tool
- Turn ignition switch to ON position and wait about 6 seconds or more.

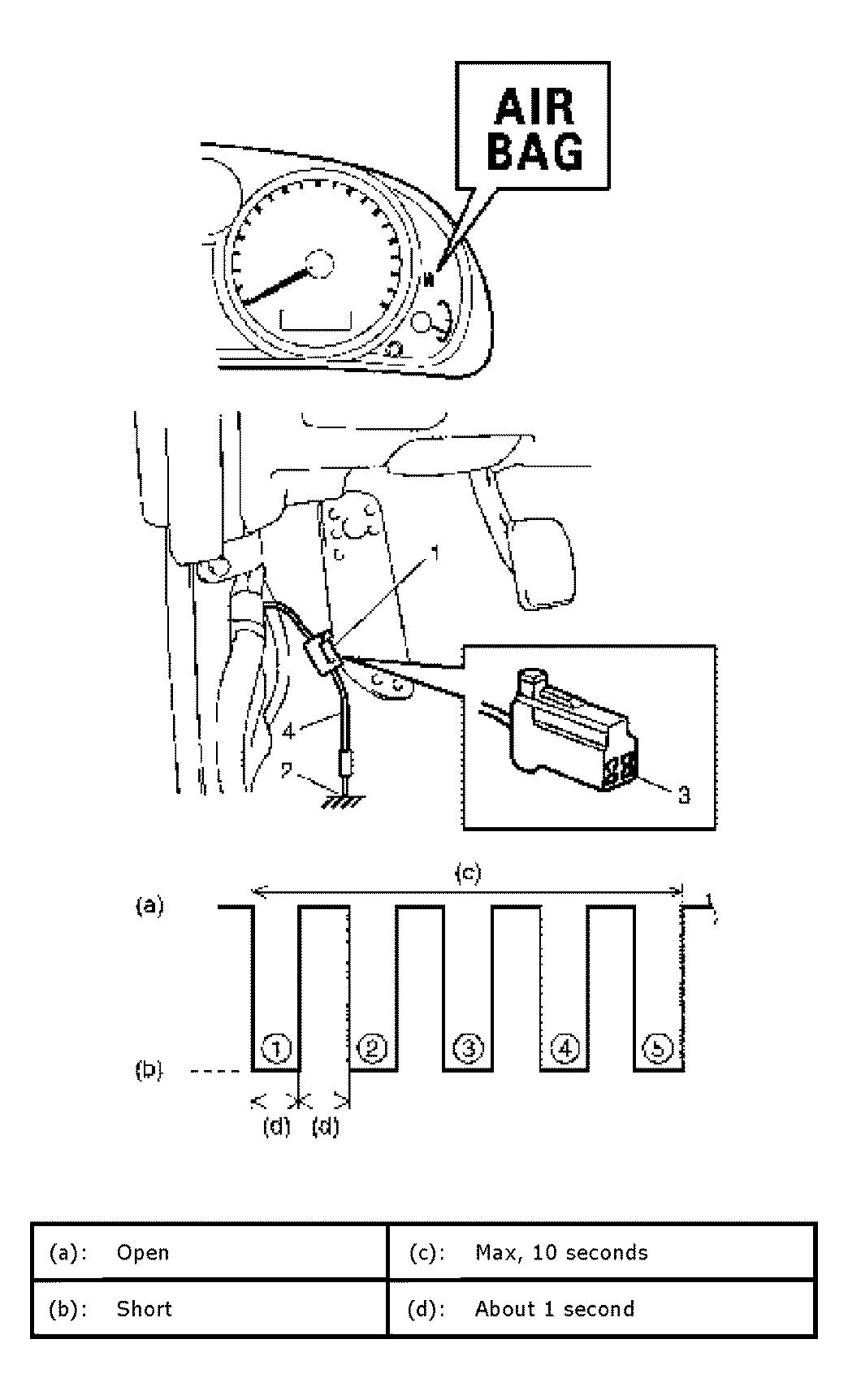

- Using service wire (4), repeat shorting and opening between diagnosis switch terminal (3) on "AIR BAG" monitor coupler (1) and body ground (2) 5 times at about 1 second intervals.
- Perform DTC CHECK FOR SDM: ADVANCED AIR BAG and confirm that normal DTC (No.0000) is displayed and not malfunction DTC.NOTE: If DTC B1013, DTC B1021 or DTC B1027 is stored in SDM, it is not possible to clear DTC.
