Service Manual Update: DTC Troubleshooting For Passenger Seat Weight Sensor DTC B1203 Thru B1206 (TS 02 08077)

Publication date: 2007-08-07
Reference number: TS 02 08077

SERVICE MANUAL UPDATE: DTC TROUBLESHOOTING FOR PASSENGER SEAT WEIGHT SENSOR DTC B1203 THRU B1206

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 02 08077, Date of Issue: September 7, 2007

SUZUKI:	2005~2007 AERIO (RH423)
SECTION:	Restraints

CONDITION

The troubleshooting for the passenger seat weight sensor described in the service manual is incorrect.

CAUSE

Incomplete diagnostic information.

CORRECTION

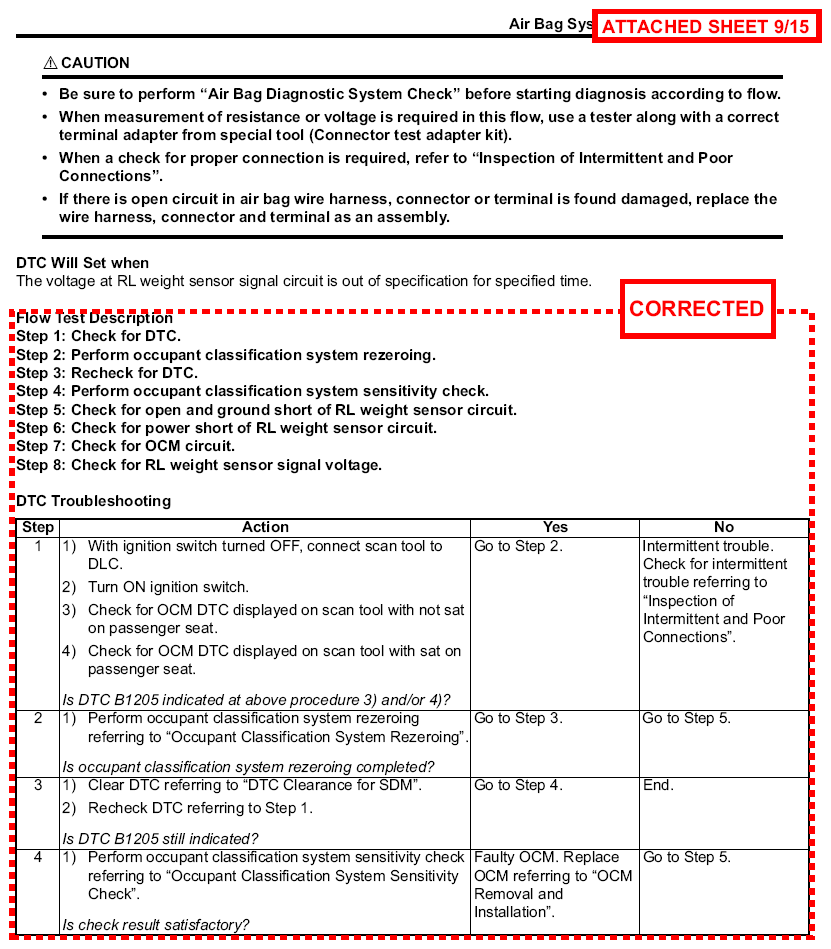

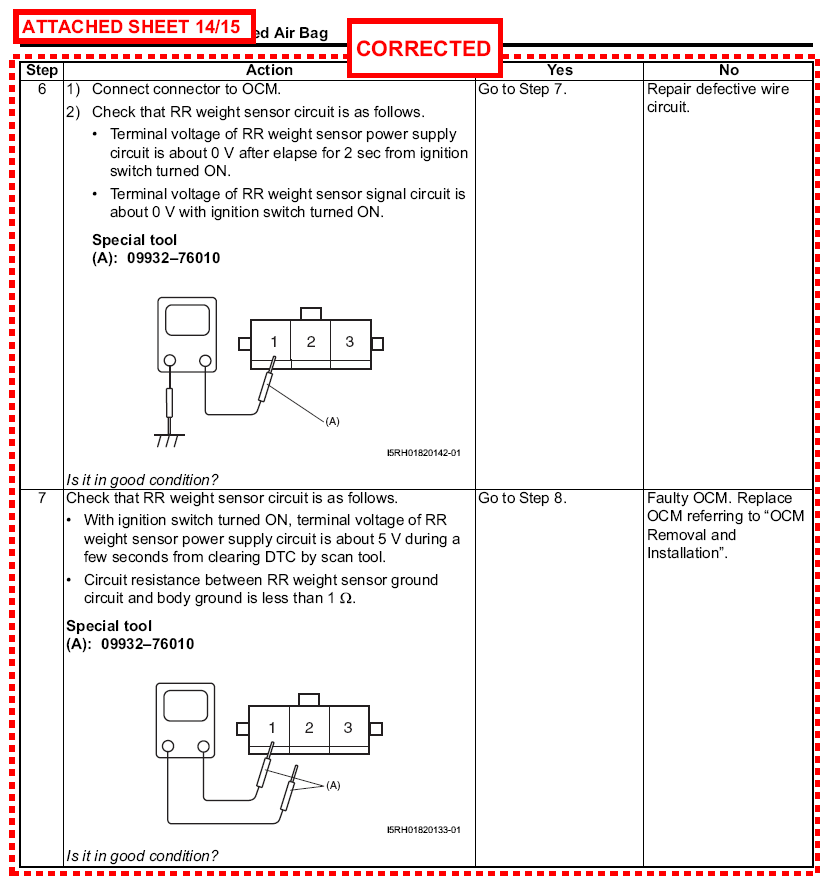

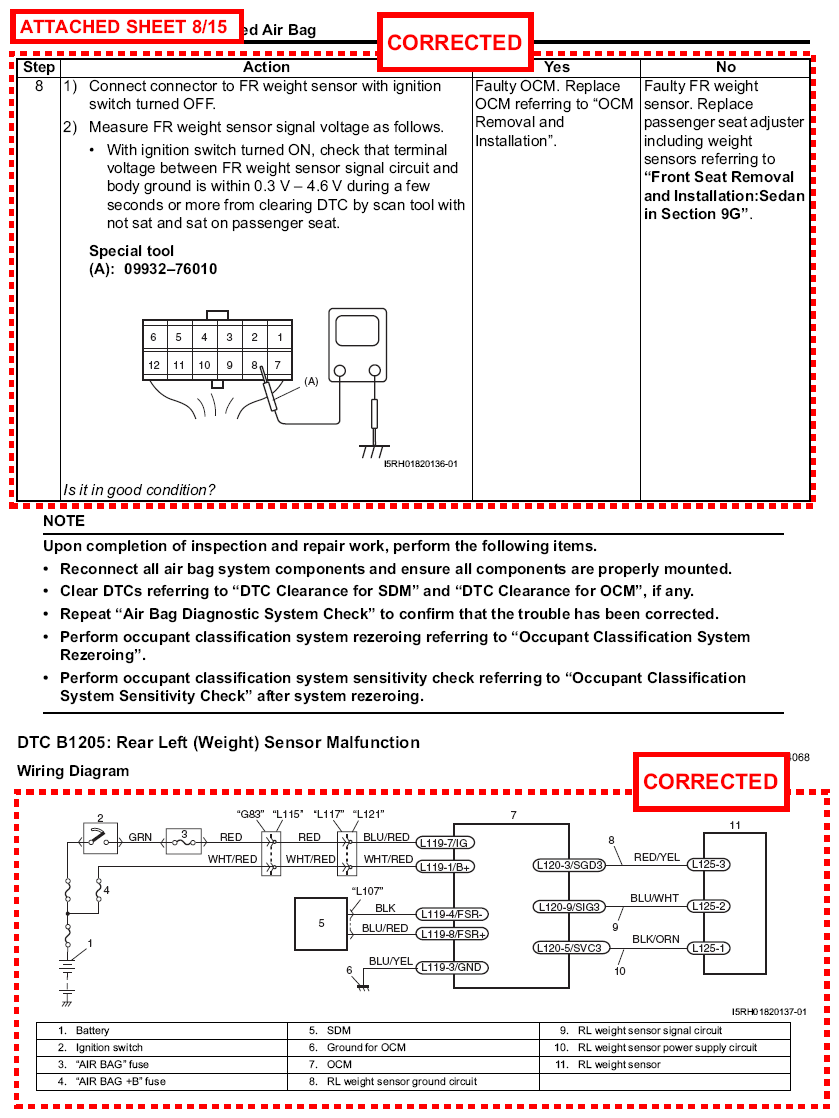

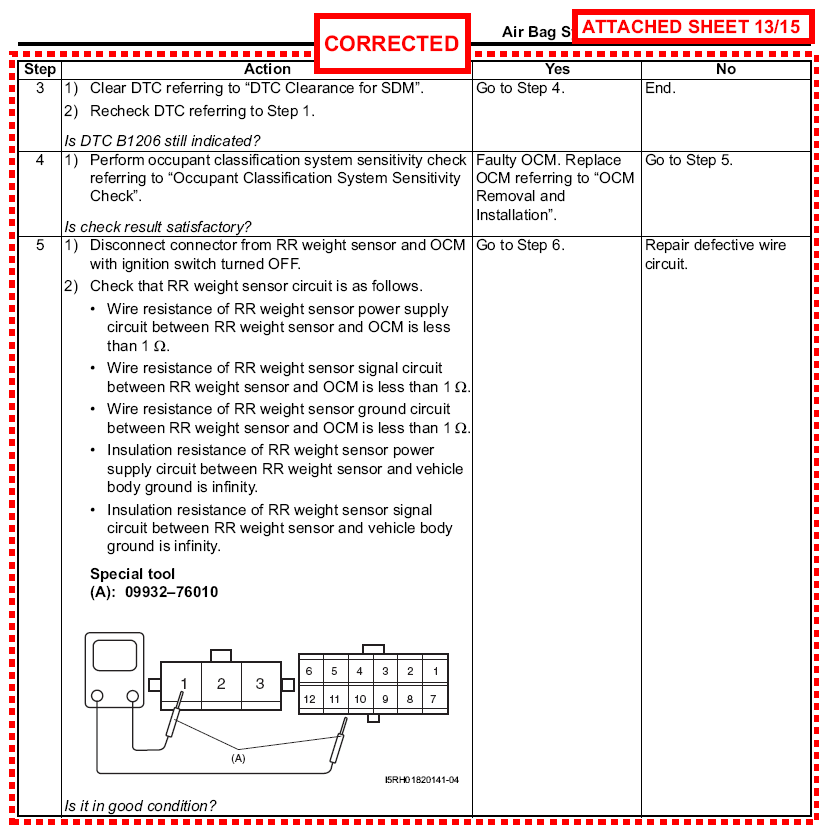

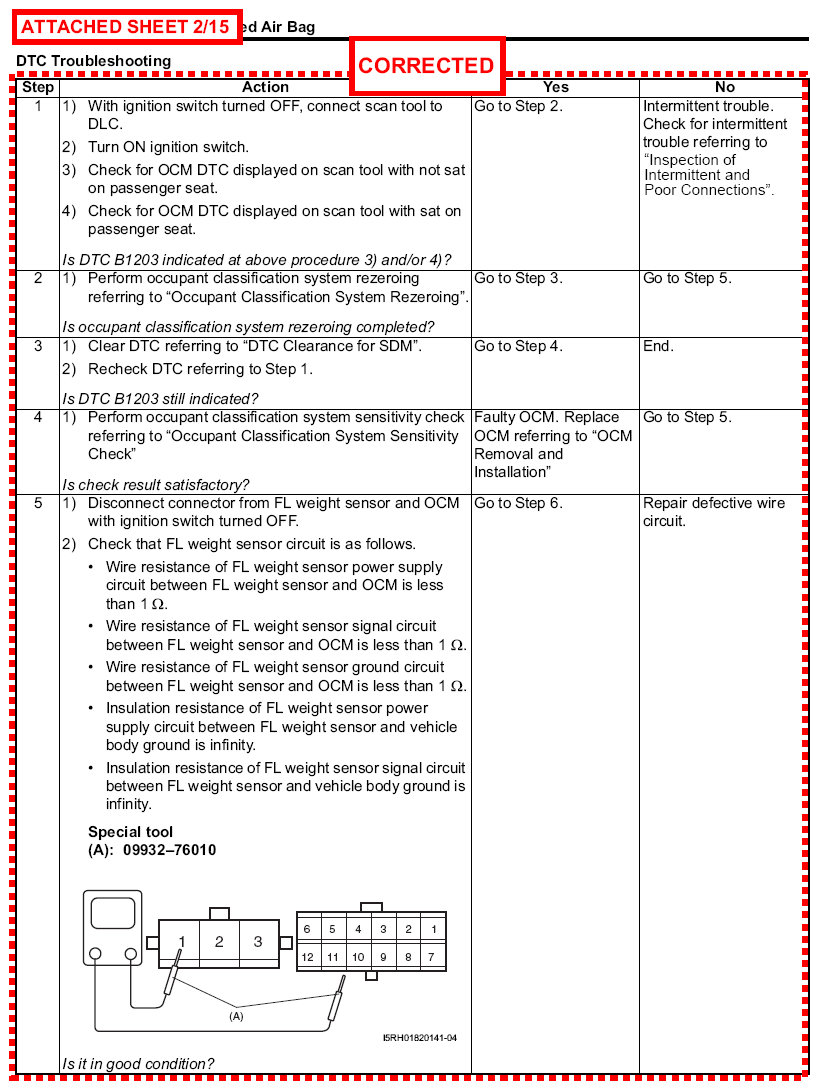

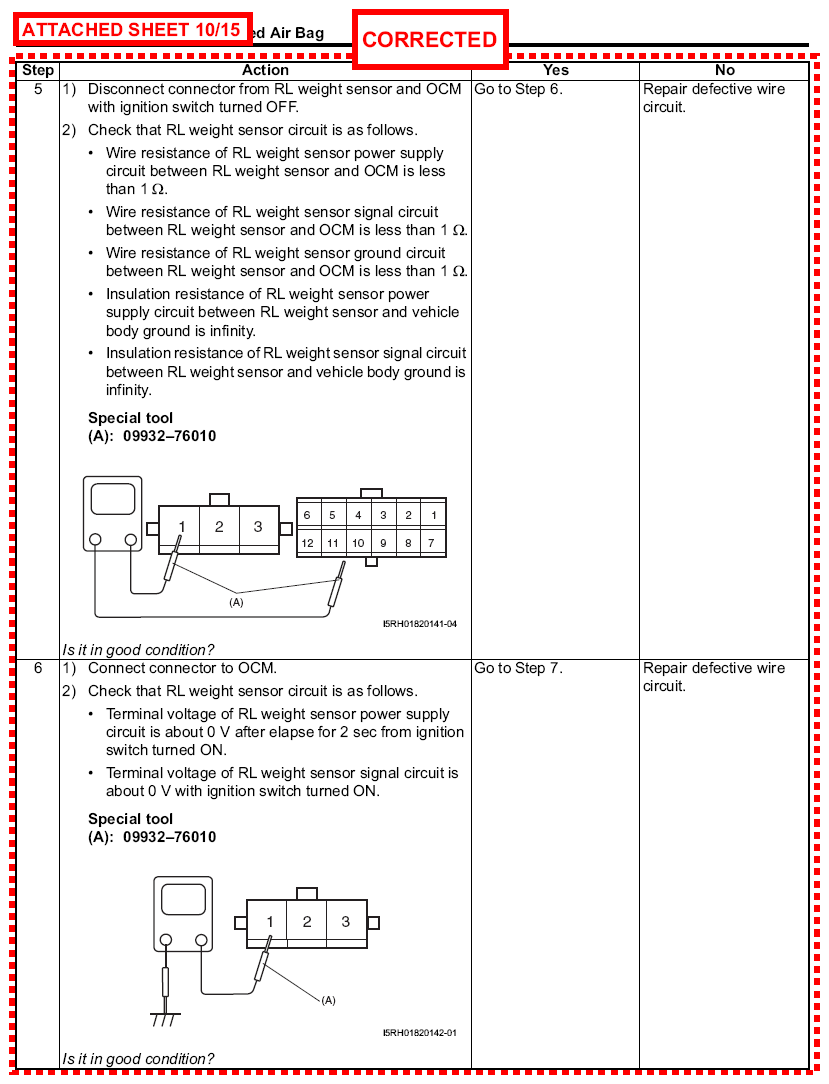

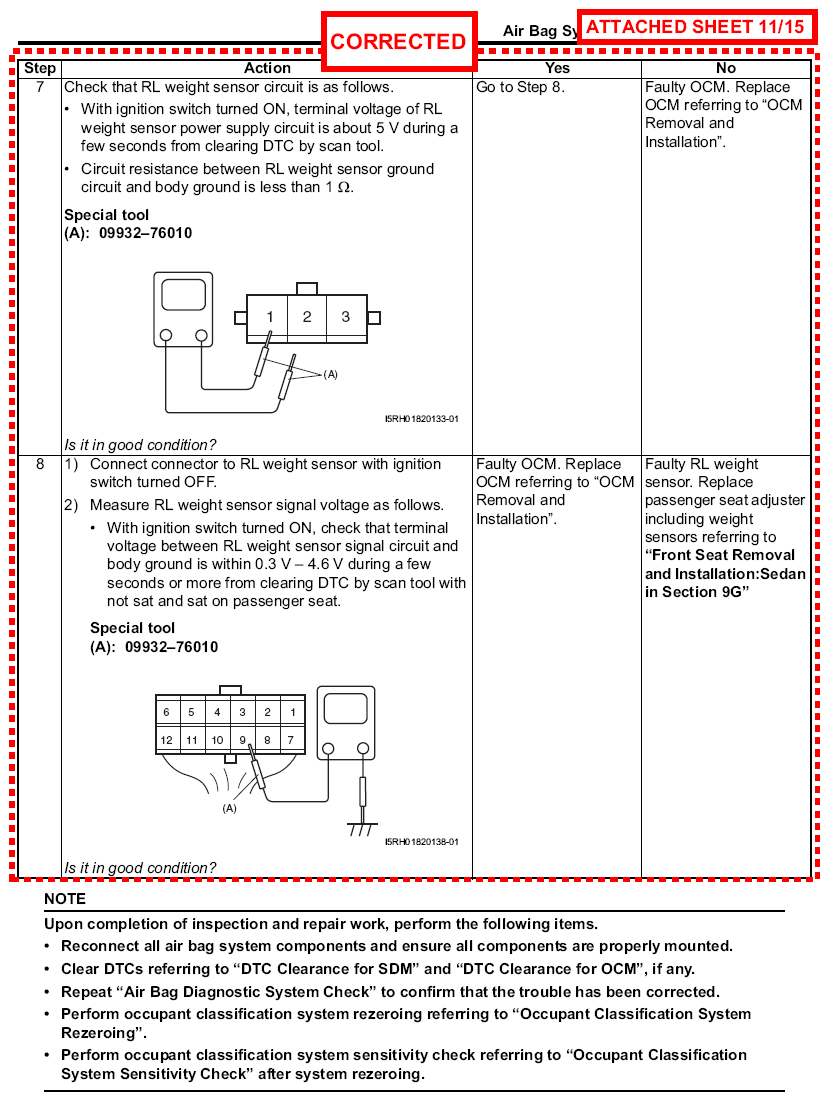

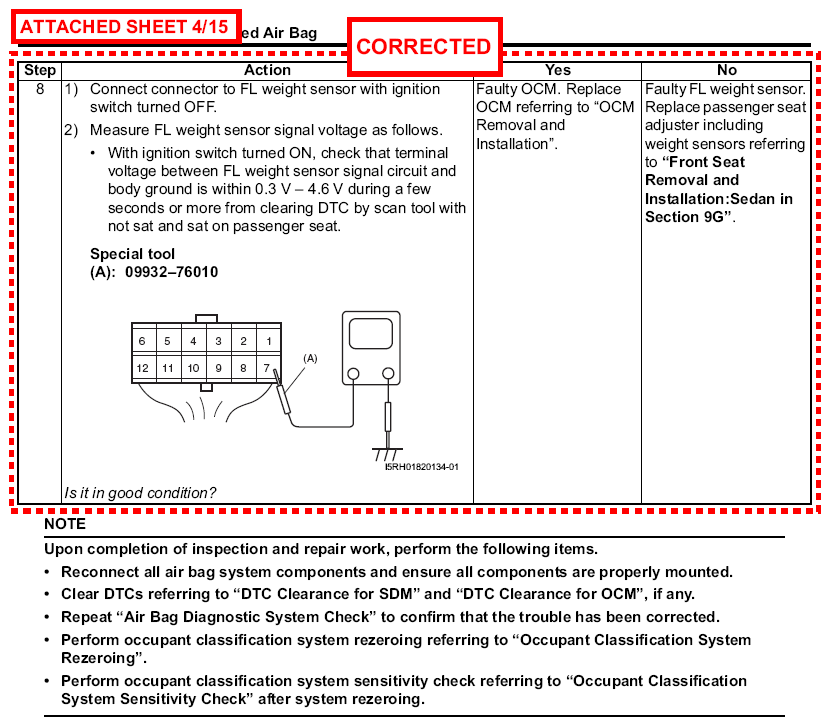

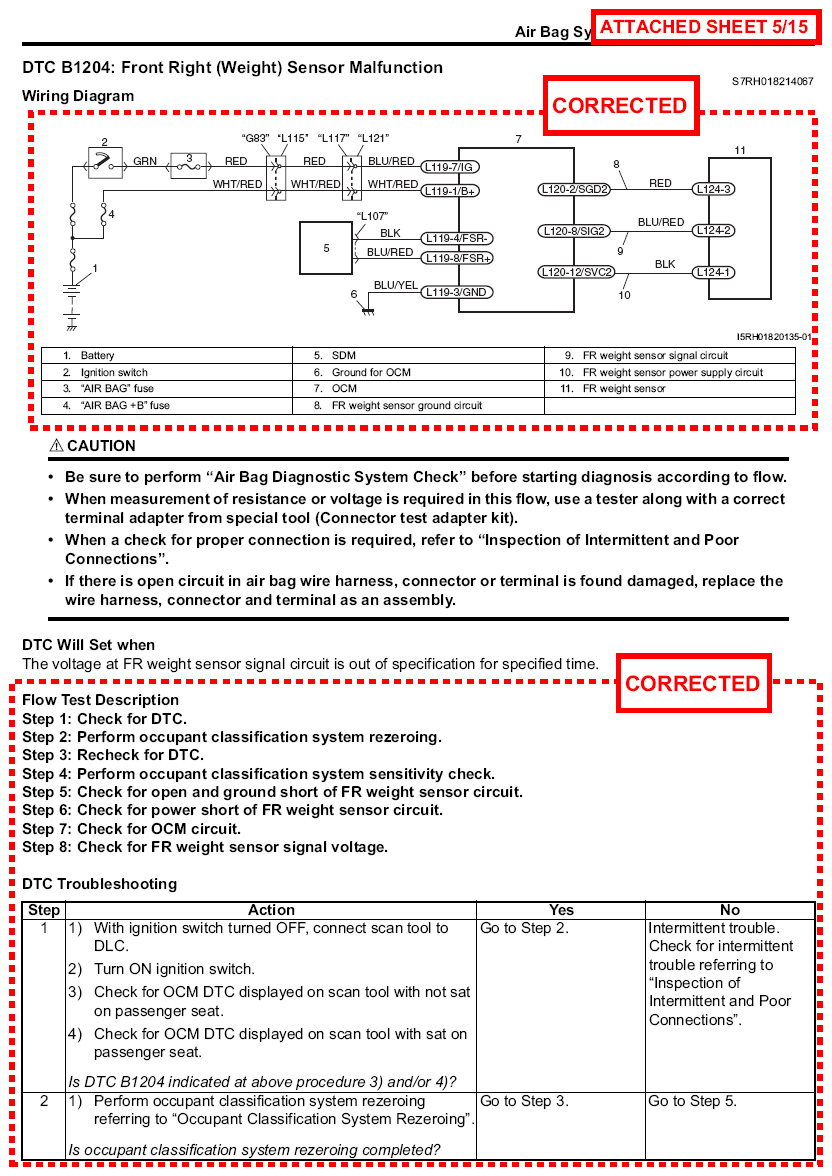

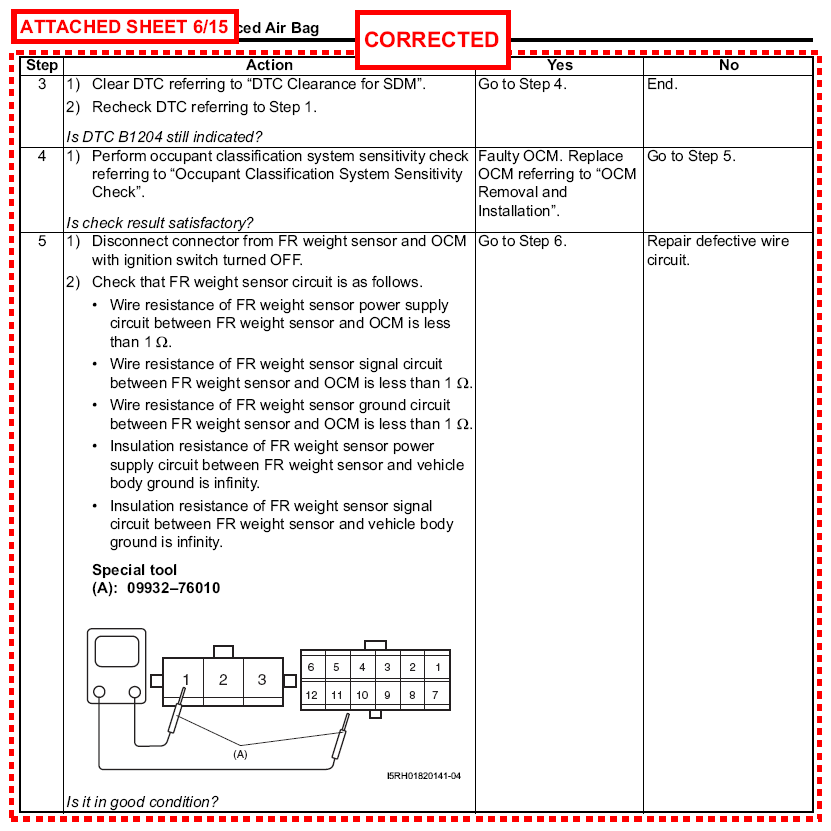

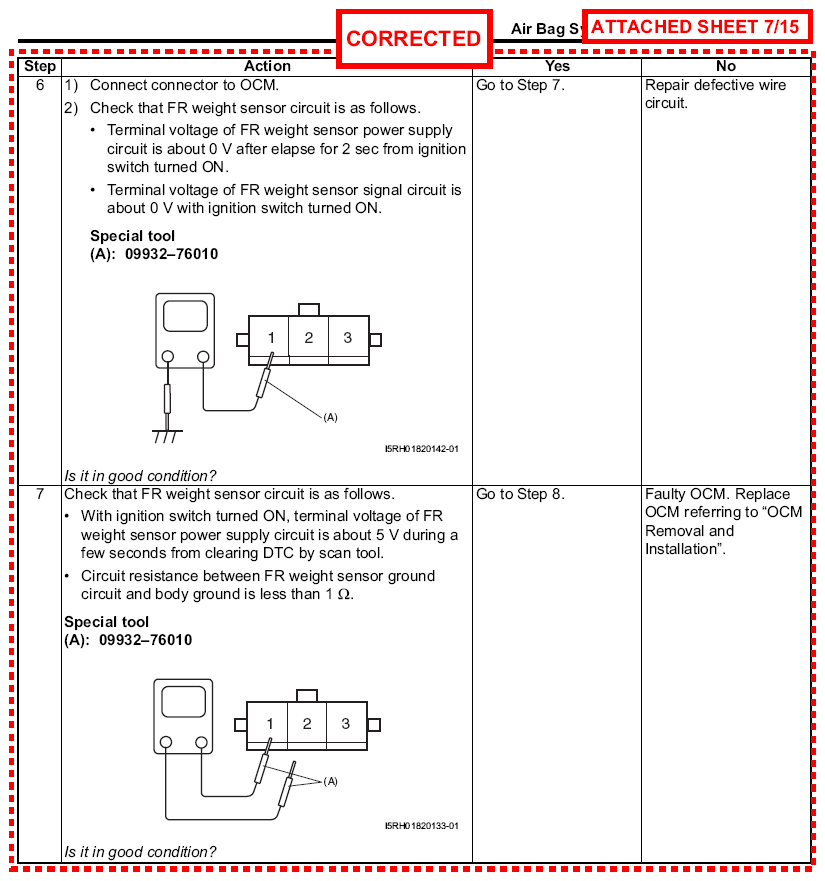

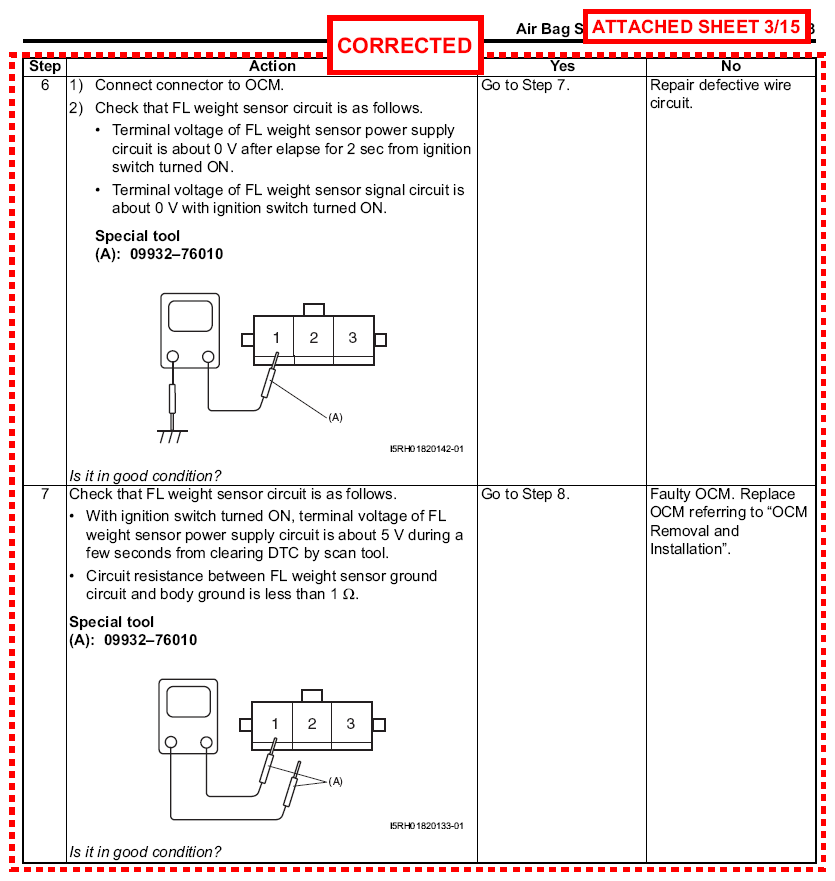

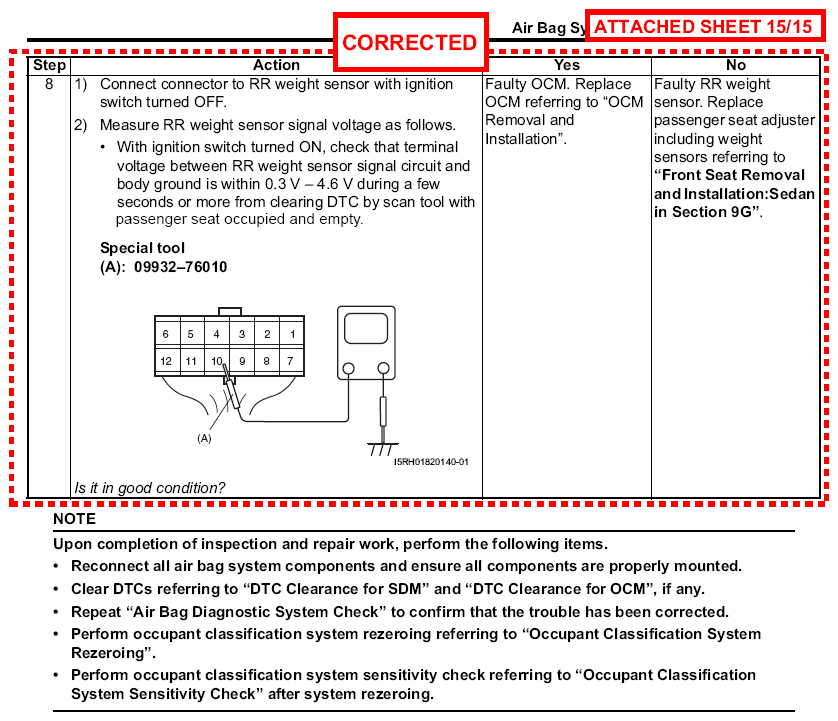

Please use attached pages when diagnosing DTCs B1203 thru B1206. Place the attached pages in your printed service manual. Due to the difference in page layout between the three service manual years, the attached pages will not replace current pages directly. Place them in the appropriate DTC number diagnostic section.

AFFECTED SERVICE MANUALS

Name of Manuals

Part Numbers

S/M Section

Corresponding Pages⁽¹⁾

2005 MY AERIO (RH423) Service Manual

99500S54G30-33E

Section 8B

From

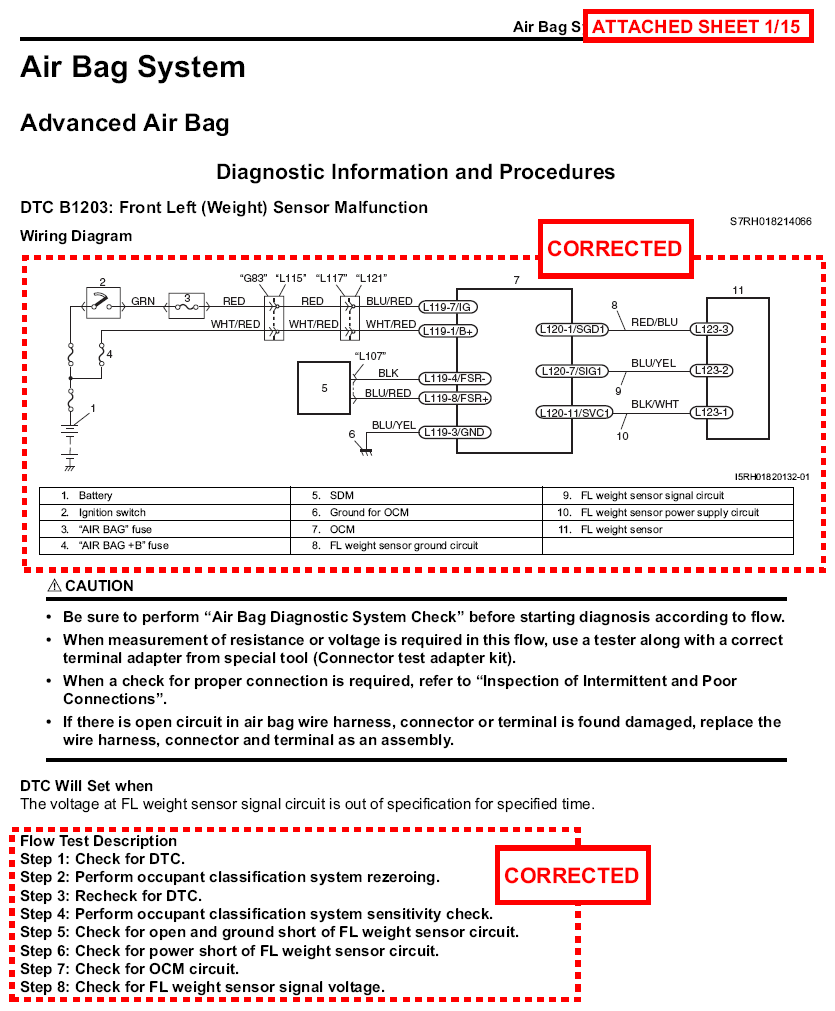

DTC B1203: Front Left (Weight) Sensor Malfunction
Thru

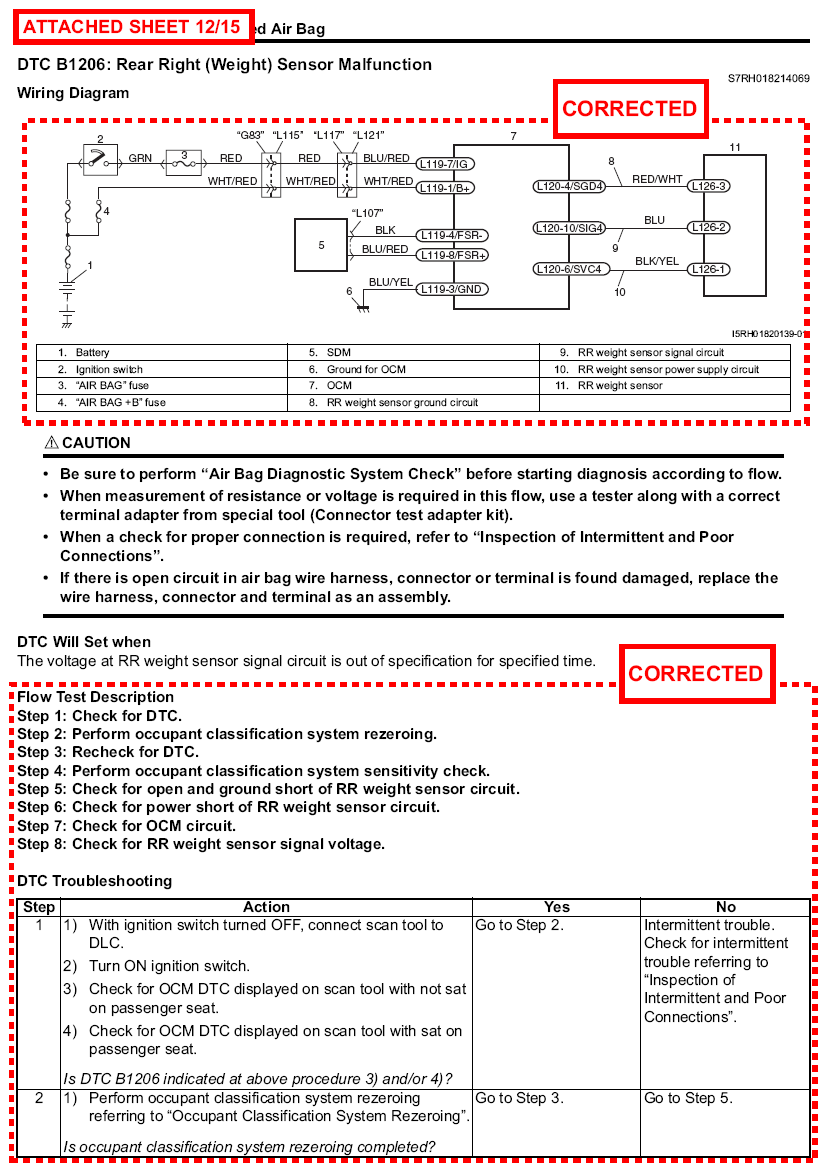

DTC B1206: Rear Right (Weight) Sensor Malfunction

2006 MY AERIO (RH423) Service Manual

99500S54G40-33E

2007 MY AERIO (RH423) Service Manual

99500S54G50-33E

⁽¹⁾	The page numbers of attached pages below may differ from the pages in the service manual.

NOTE: This update will reflect in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been corrected.
