Temperature Control Actuator Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Disconnect connector (1).
  3. Detach temperature control actuator rod (2) from linkage (3).
  4. Remove temperature control actuator (4) from heater unit.

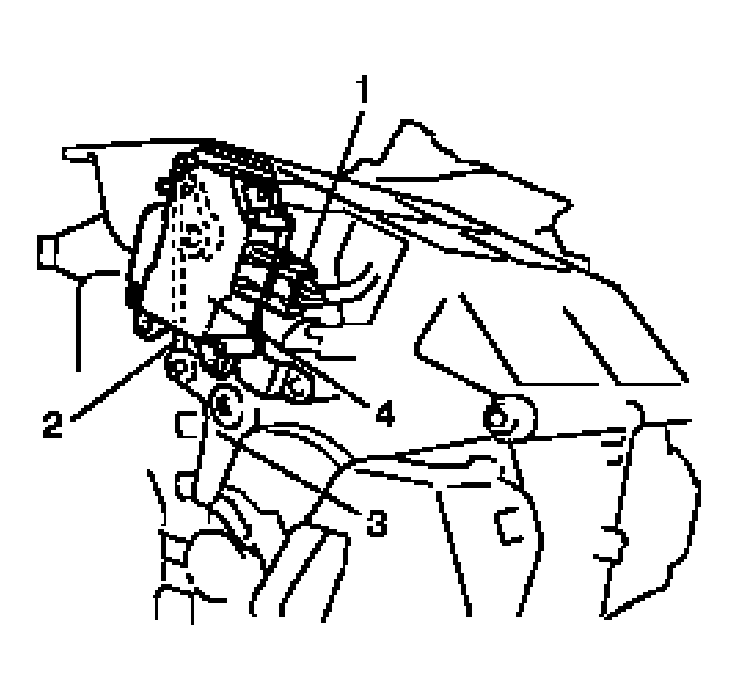

    Fig 1: Removing Temperature Control Actuator
    G04590815Courtesy of SUZUKI OF AMERICA CORP.
