Blower Unit Removal and Installation: Removal

  1. Set air intake switch to fresh air mode with ignition switch on, and then turn off ignition switch after three seconds. (It takes about three seconds to move over air intake selector door to fresh air position.)
  2. Disconnect negative (-) cable at battery.
  3. Remove glove box.
  4. Remove instrument panel passenger lower member (1).
    Fig 1: Removing Instrument Panel Passenger Lower Member
    G04590797Courtesy of SUZUKI OF AMERICA CORP.
  5. Disconnect main harness connector (1) and clamp, air intake control actuator connector (2) and blower motor connector (3).
  6. Remove blower motor relay (4) from blower unit.
    Fig 2: Removing Blower Motor Relay From Blower Unit
    G04590798Courtesy of SUZUKI OF AMERICA CORP.

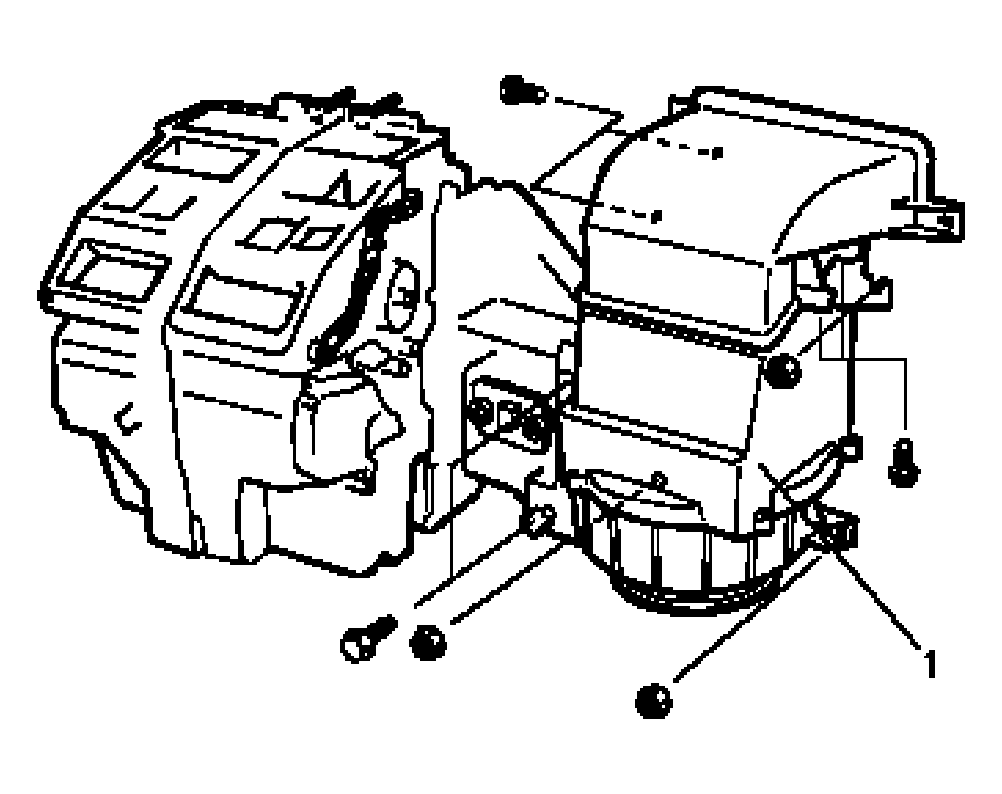

  7. Remove blower unit (1) from vehicle body.
    Fig 3: Removing Blower Unit From Vehicle Body
    G04590799Courtesy of SUZUKI OF AMERICA CORP.
