Blower Motor Relay Inspection
- Disconnect negative (-) cable at battery.
- Remove glove box.

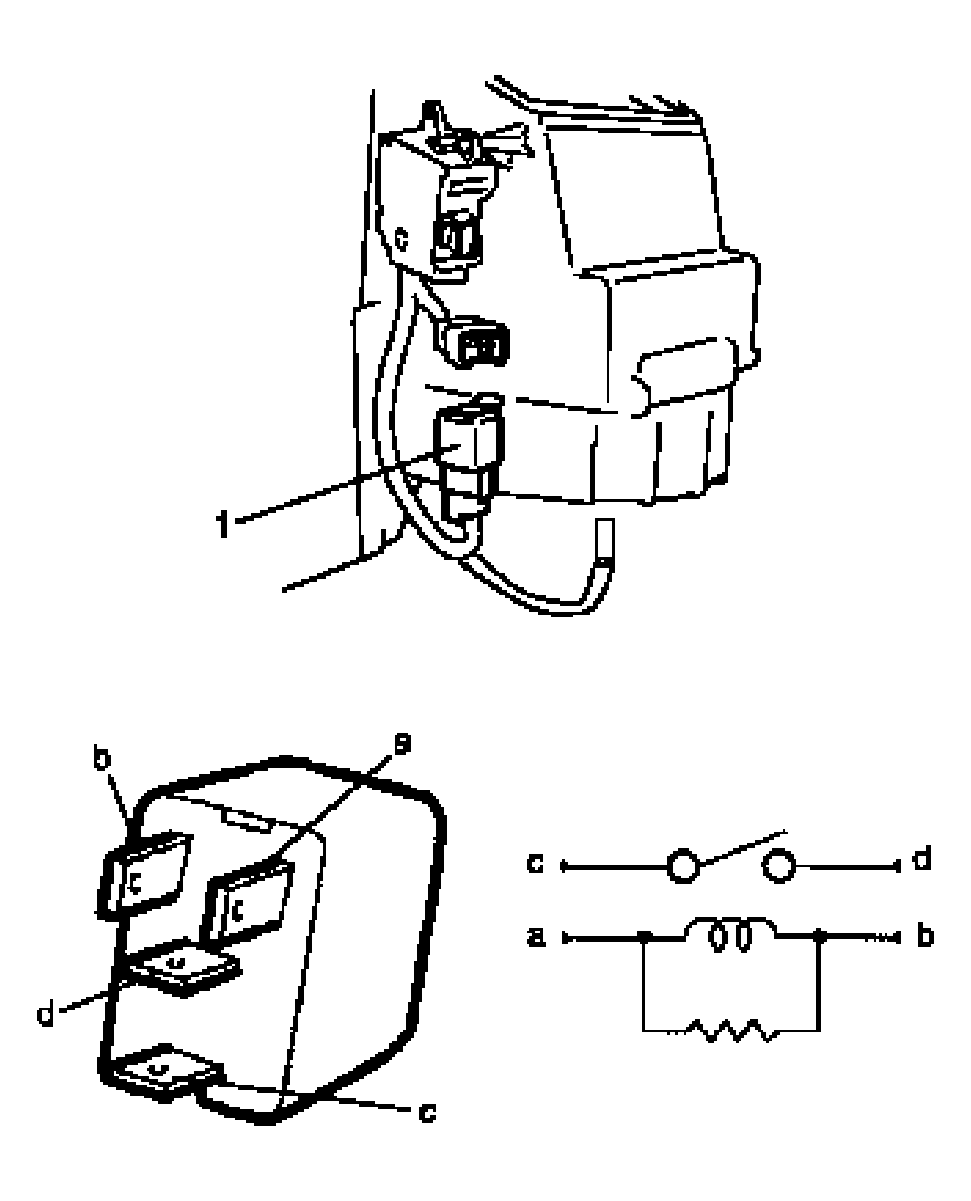

- Remove blower motor relay (1).
- Check if there is no continuity between terminal "c" and "d". If there is continuity, replace relay.
- Check if there is continuity between terminals "c" and "d" when a 12 V battery is connected to terminals "a" and "b".
If malfunction is found, replace it with a new one.
