Air Flow Control Actuator Removal and Installation: Removal

  1. Set air flow selector to DEF position.
  2. Disconnect negative cable at battery.
  3. Disconnect connector (2).
  4. Remove air flow control actuator (1) from heater unit, and then detach air flow actuator rod from clip on linkage (3).

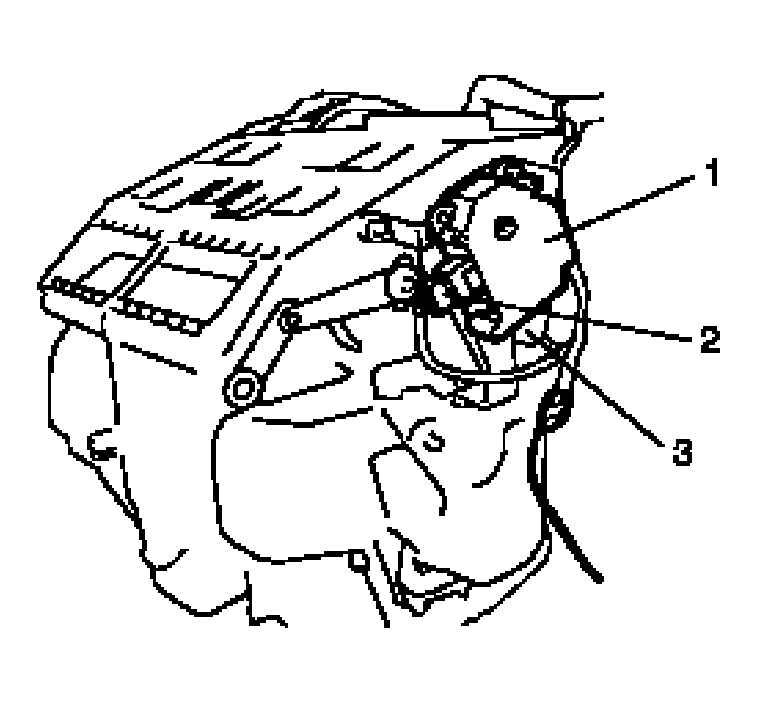

    Fig 1: Disconnecting Connector
    G04590819Courtesy of SUZUKI OF AMERICA CORP.
