Not Using SUZUKI Scan Tool
NOTE:
In case of malfunctions related to temperature selector, blower speed selector, and/or air flow selector on HVAC control module, the following procedure can not be used. However, SUZUKI scan tool can be used to perform DTC CLEARANCE .

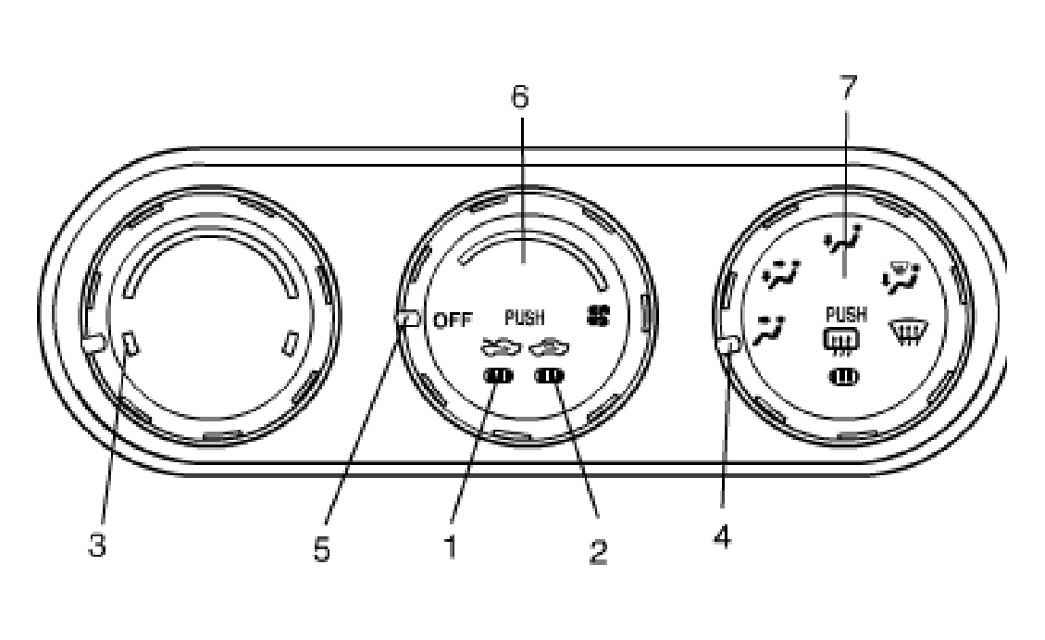

- Ensure that fresh air indicator (1) and recirculation air indicator (2) operate properly.
- Set the following selectors to the specified positions respectively.
- Temperature selector (3): Maximum cool position
- Air flow selector (4): Ventilation position
- Blower speed selector (5): OFF position
- Keep air intake switch (6) and rear defogger switch (7) pressed, and then turn ignition switch to ON position for indicating current DTC(s).
- Press rear defogger switch (7) for shifting to history DTC mode.
- To clear history DTC(s), press rear defogger switch (7) for more than 5 seconds.NOTE: To finish DTC clearance mode, rotate any one of temperature selector, air flow selector, and blower speed selector.
