Using SUZUKI Scan Tool

  1. Turn ignition switch to OFF position.
  2. Connect SUZUKI scan tool to data link connector (DLC) (1) located on underside of instrument panel at driver's seat side.

    Special Tool

    (A): SUZUKI scan tool

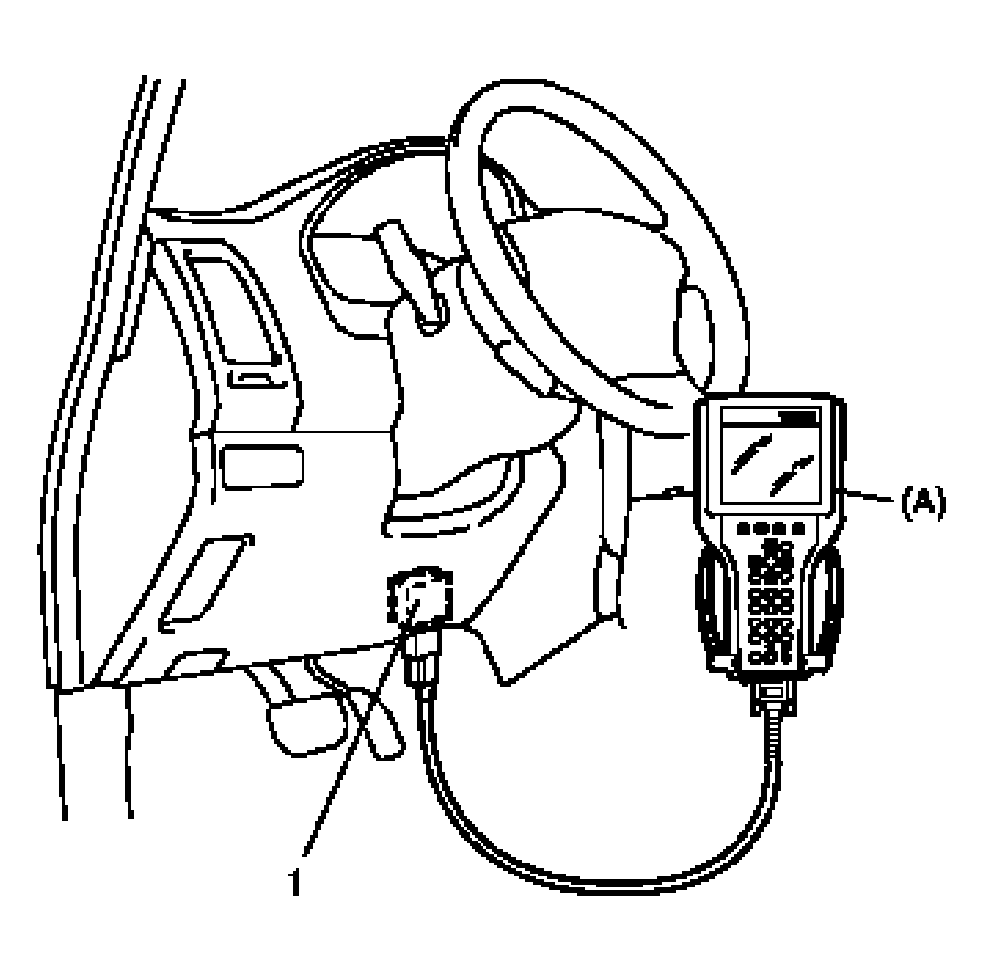

    Fig 1: Connecting Suzuki Scan Tool
    G04590778Courtesy of SUZUKI OF AMERICA CORP.
  3. Turn ignition switch to ON position.
  4. Read DTC displayed on SUZUKI scan tool.
    NOTE: To know how to use SUZUKI scan tool, refer to operator's manual for SUZUKI scan tool.
  5. After completing the check, turn ignition switch to OFF position, and then disconnect SUZUKI scan tool from DLC.
