Clutch Release System Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Remove release arm by loosening its nut and bolt.
Take out release bearing by turning release shaft.
Drive out No.2 bush by using special tool and hammer. Release shaft oil seal will also be pushed out.
Special Tool
1. 09922-46010
Remove release shaft (1).

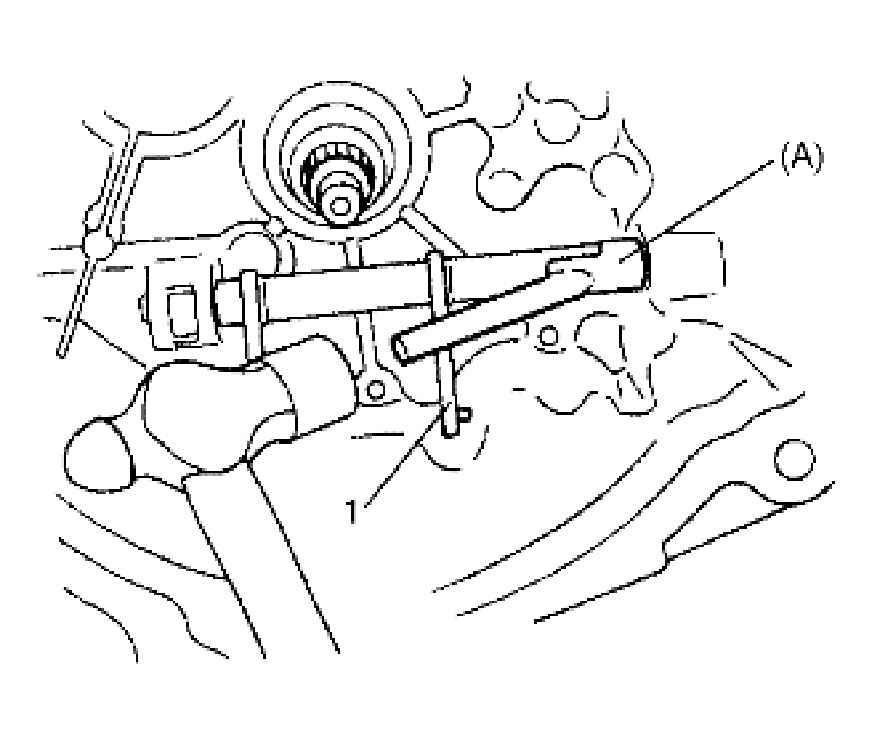

Fig 1: Removing Release Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Pull No.1 bush out by using special tools.
Special Tool
1. 09925-46010
2. 09930-30104

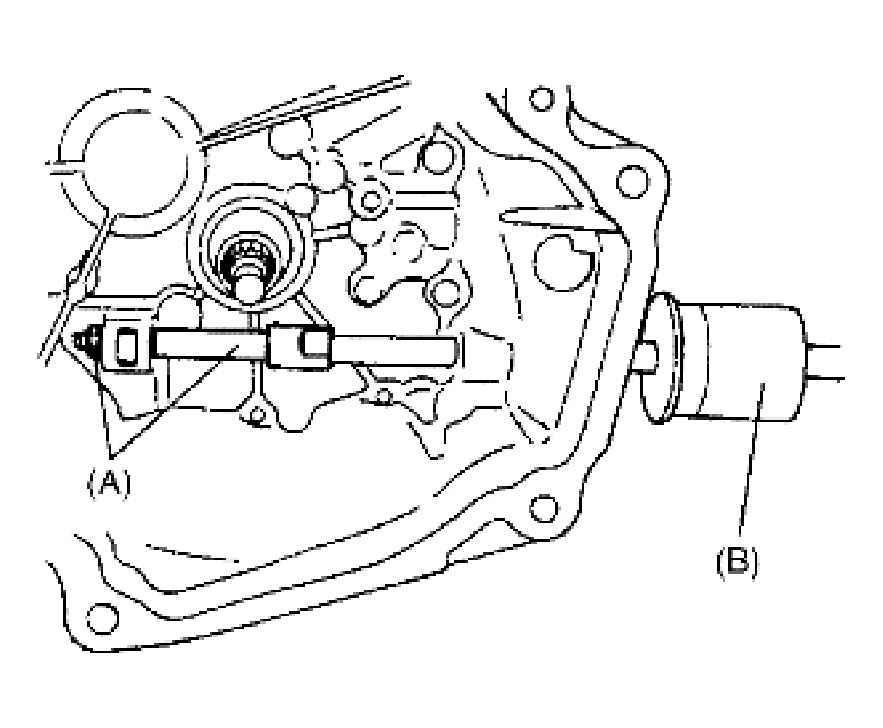

  Fig 2: Removing Bush
  Courtesy of SUZUKI OF AMERICA CORP.
