Clutch Operating Cylinder Removal and Installation: Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not allow fluid to get on painted surfaces.
- Clean around master cylinder reservoir cap and take out fluid with syringe or such.

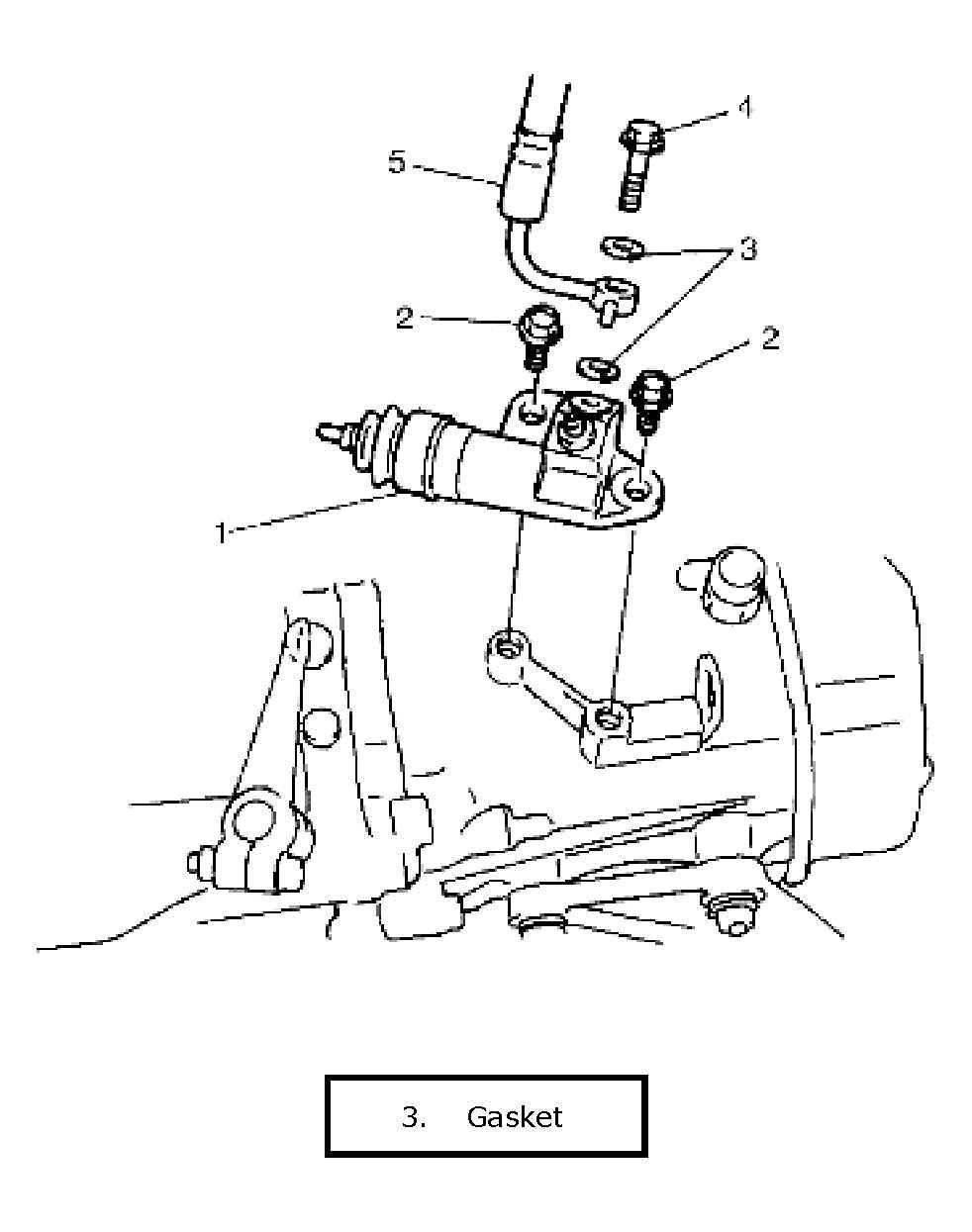

- Disconnect fluid hose (5) from operating cylinder by loosing union bolt (4).
- Remove operating cylinder attaching bolts (2) and operating cylinder assembly (1).
