Clutch Operating Cylinder Disassembly and Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Before installation, wash each part in specified brake fluid.

Apply brake fluid to piston assembly and inside of cylinder.
Install piston assembly (1) into cylinder. When inserting it, be careful not to cause damage to lip of piston cup (2).

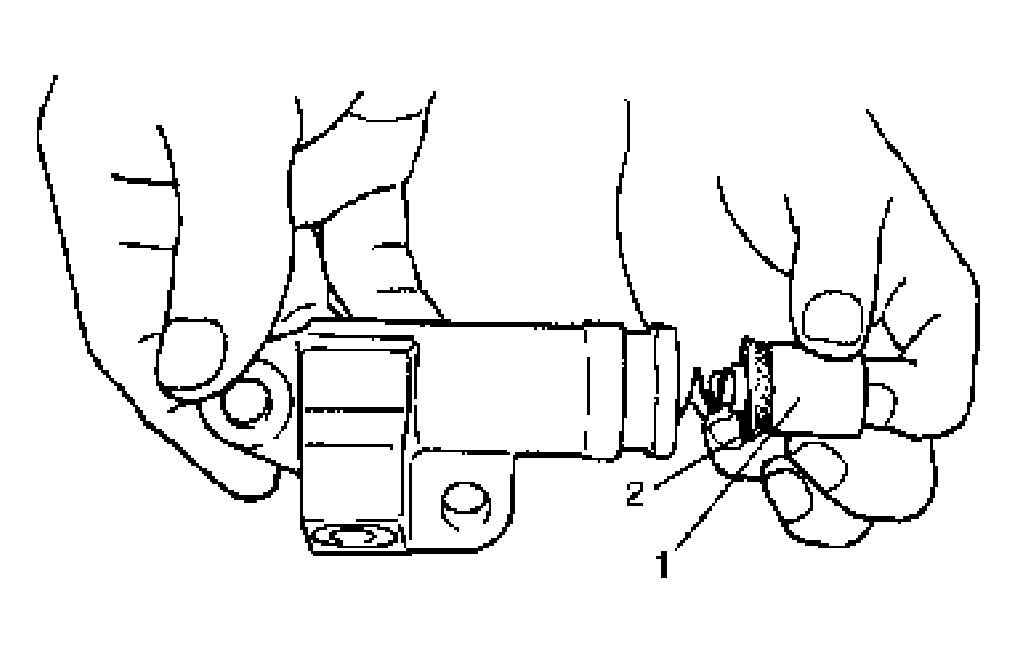

Fig 1: Installing Piston Assembly Into Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Install boot and push rod.
