Clutch Operating Cylinder Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove boot and then push rod.
  2. Remove piston (2) by blowing compressed air into bolt hole (1) where hose was connected, using care to prevent it from jumping out.

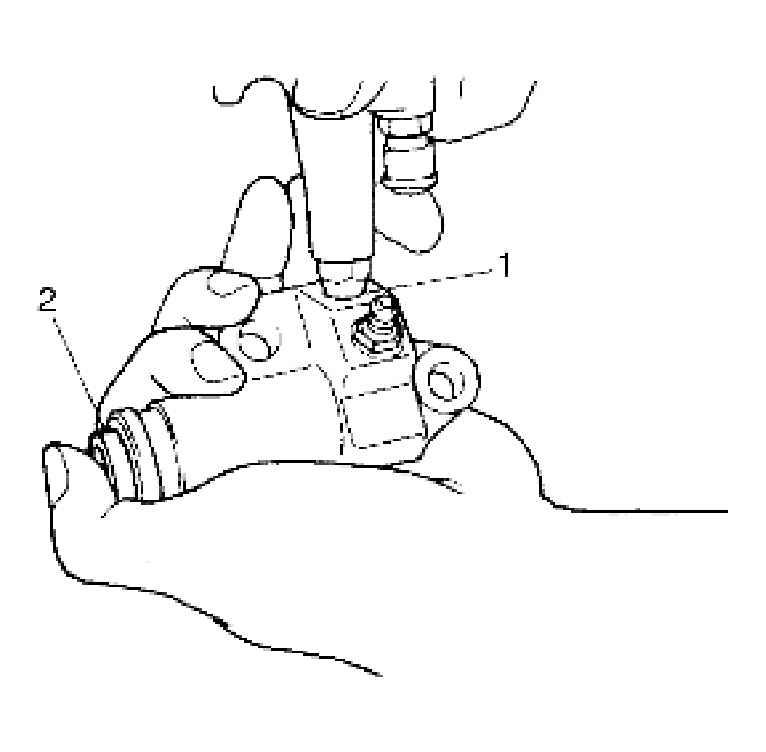

    Fig 1: Removing Piston Assembly Using Compressed Air
    G04592291Courtesy of SUZUKI OF AMERICA CORP.
