Clutch Operating Cylinder Components

WARNING: This page is about a different variant/trim than selected.

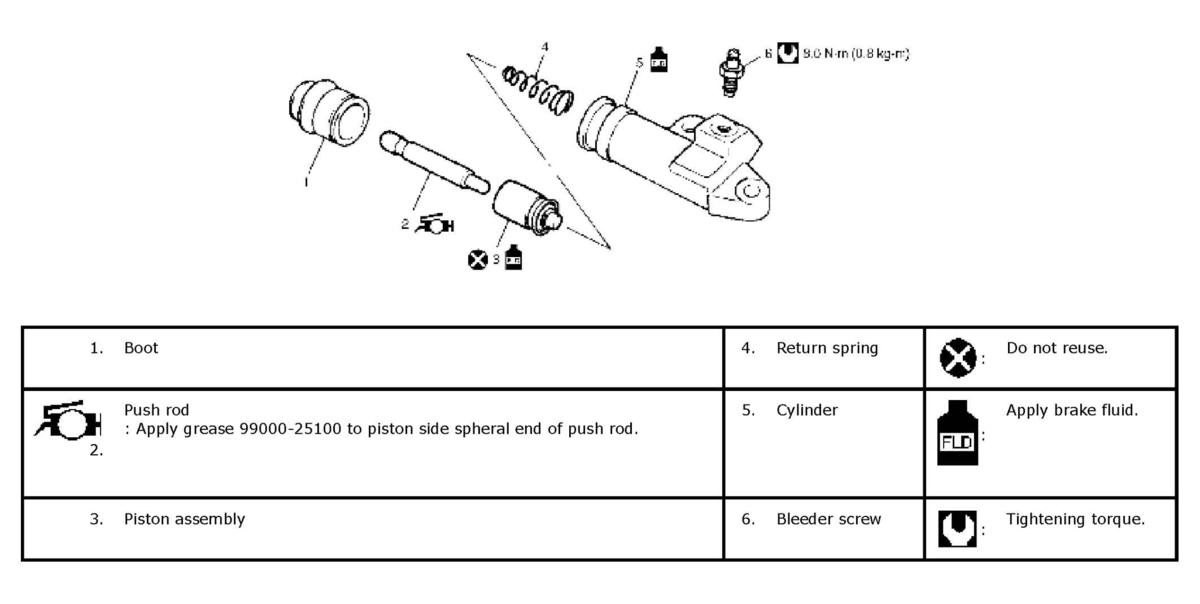

Fig 1: Identifying Clutch Operating Cylinder Components (With Tightening Torque)
G04592286Courtesy of SUZUKI OF AMERICA CORP.
