Clutch Master Cylinder Removal and Installation: Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not allow fluid to get on painted surfaces.

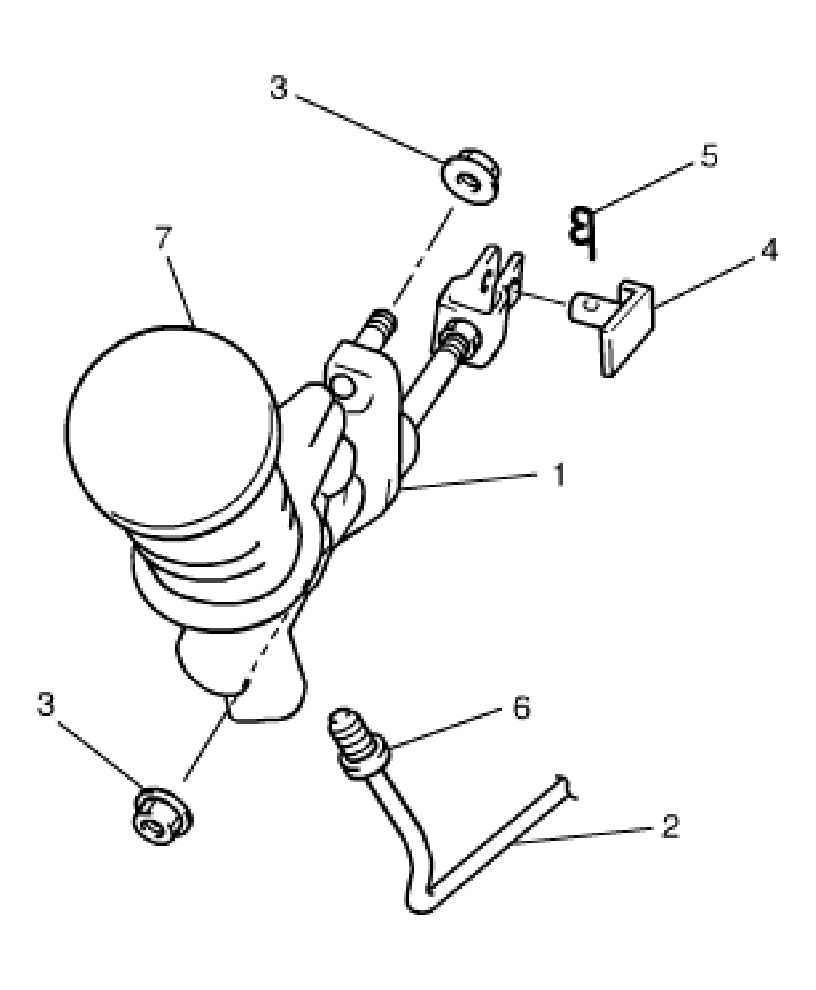

- Clean around reservoir cap (7) and take out fluid with syringe or such.
- Remove clevis b-pin (5) and clevis pin (4).
- Disconnect fluid pipe (2) from master cylinder assembly (1) by loosing flare nut (6).
- Remove master cylinder attaching nuts (3).
- Remove master cylinder assembly (1) and gasket.
