Clutch Master Cylinder Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

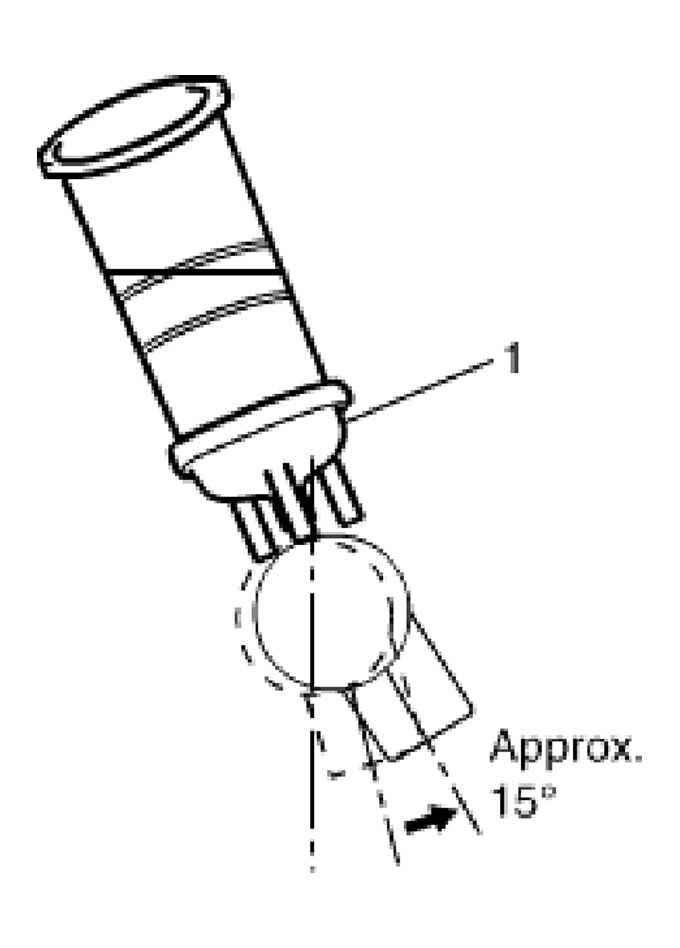

To bleed air from master cylinder (1) itself, tilt it as shown and add fluid into it.
NOTE: After bleeding air from master cylinder, plug pipe hole in it to prevent fluid from spilling out of it till pipe is connected.

Fig 1: Bleeding Air From Master Cylinder
Courtesy of SUZUKI OF AMERICA CORP.

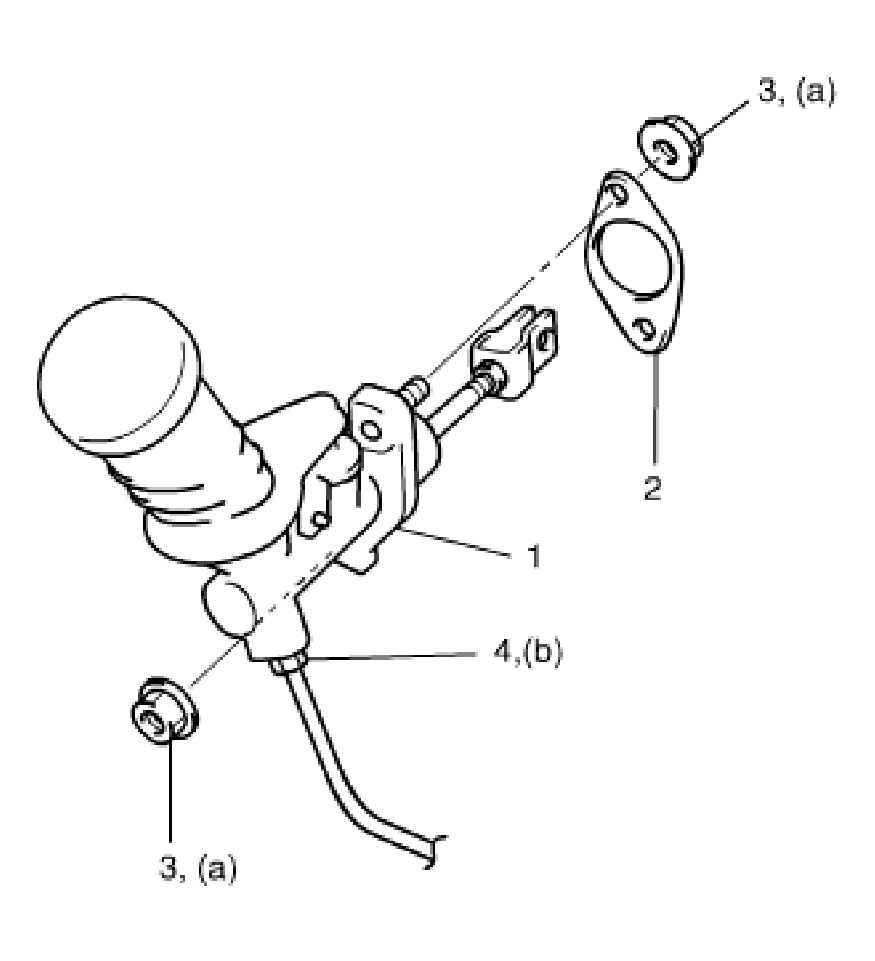

Install master cylinder assembly (1) and new gasket (2) to body, attaching nuts (3).
NOTE: Do not reuse gasket.
Tighten attaching nut (3) to specified torque.
Tightening torque

Clutch master cylinder attaching nut (a): 13 N.m (1.3 kg-m, 9.5 lb-ft)
Connect fluid pipe and tighten flare nut (4) to specified torque.
Tightening torque

Clutch pipe flare nut (b): 16 N.m (1.6 kg-m, 11.5 lb-ft)
Apply grease to clevis pin and install clevis pin.
: Grease 99000-25010
Install clevis b-pin.

Fig 2: Installing Master Cylinder Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Fill master cylinder reservoir with specified brake fluid and check fluid leakage.
After installation, bleed air from system. (Refer to AIR BLEEDING OF BRAKE SYSTEM .)

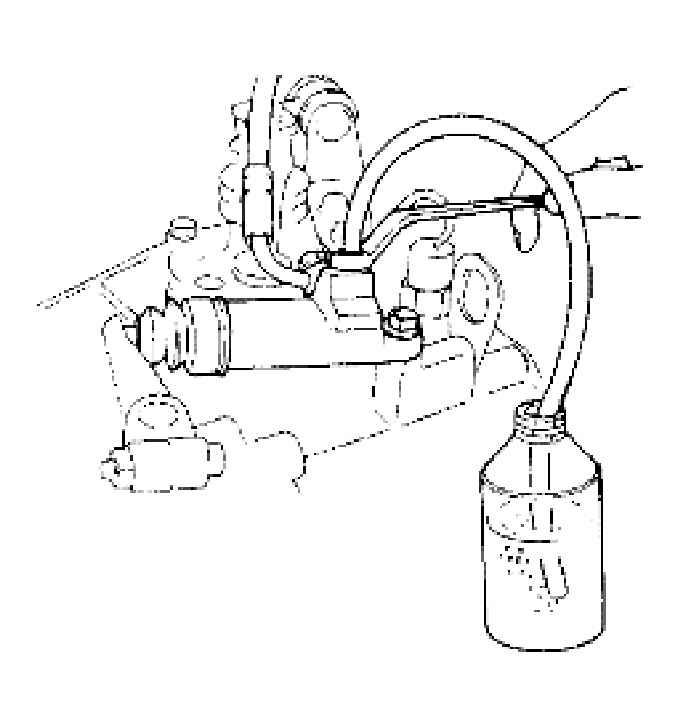

Fig 3: Bleeding Air From Brake System
Courtesy of SUZUKI OF AMERICA CORP.
Check clutch pedal free travel and clutch release margin. (Refer to CLUTCH PEDAL INSPECTION .)
