Clutch Master Cylinder Disassembly and Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Before installation, wash each part in specified brake fluid.

Apply brake fluid to piston assembly and inside of cylinder body.
Install piston assembly into cylinder.
With piston and push rod assembly (3) pushed down, install circlip (2) as shown.
Install boot (1).

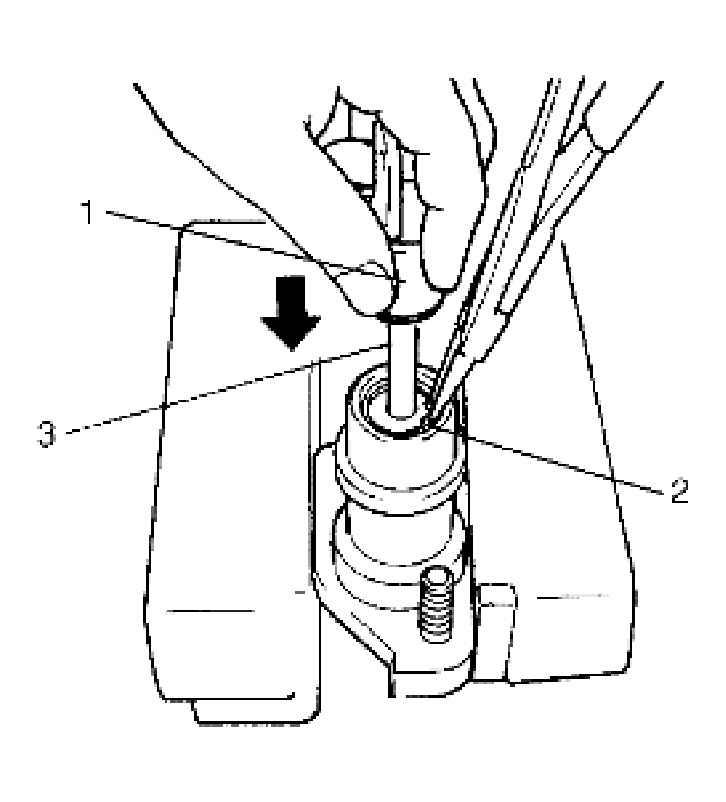

Fig 1: Installing Circlip
Courtesy of SUZUKI OF AMERICA CORP.
