Vehicle Speed Sensor (VSS) Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect negative cable at battery.
  2. Disconnect VSS coupler (1).
  3. Remove VSS (2).

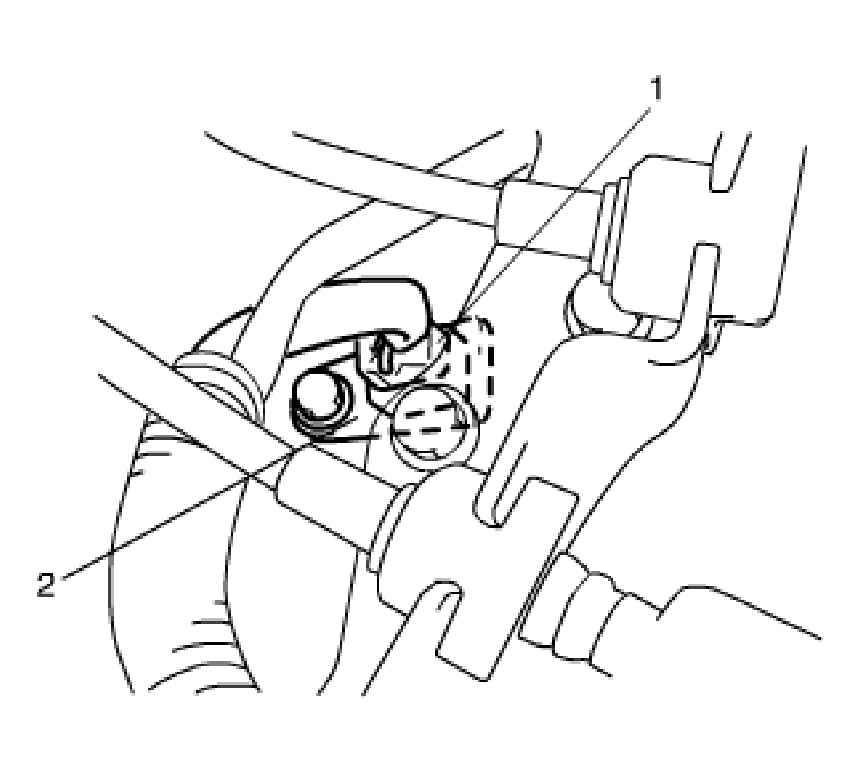

    Fig 1: Disconnecting VSS Coupler
    G04592153Courtesy of SUZUKI OF AMERICA CORP.
