Vehicle Speed Sensor (VSS) Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Check O-ring (1) and VSS surface for their flawlessness, apply oil to O-ring and then install VSS to transaxle.
Tightening torque

VSS bolt a: 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

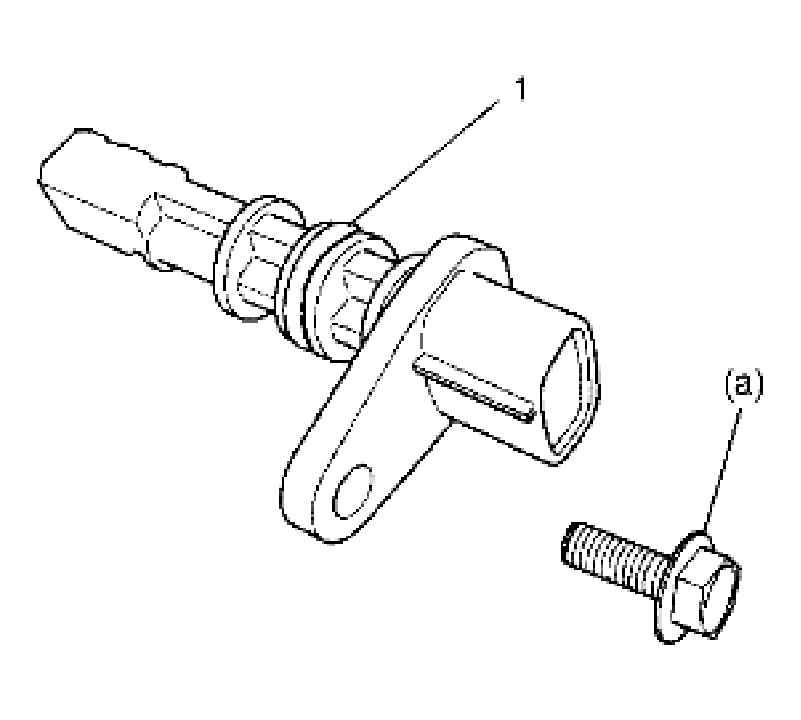

Fig 1: Identifying O-Ring
Courtesy of SUZUKI OF AMERICA CORP.
Connect VSS coupler (1).

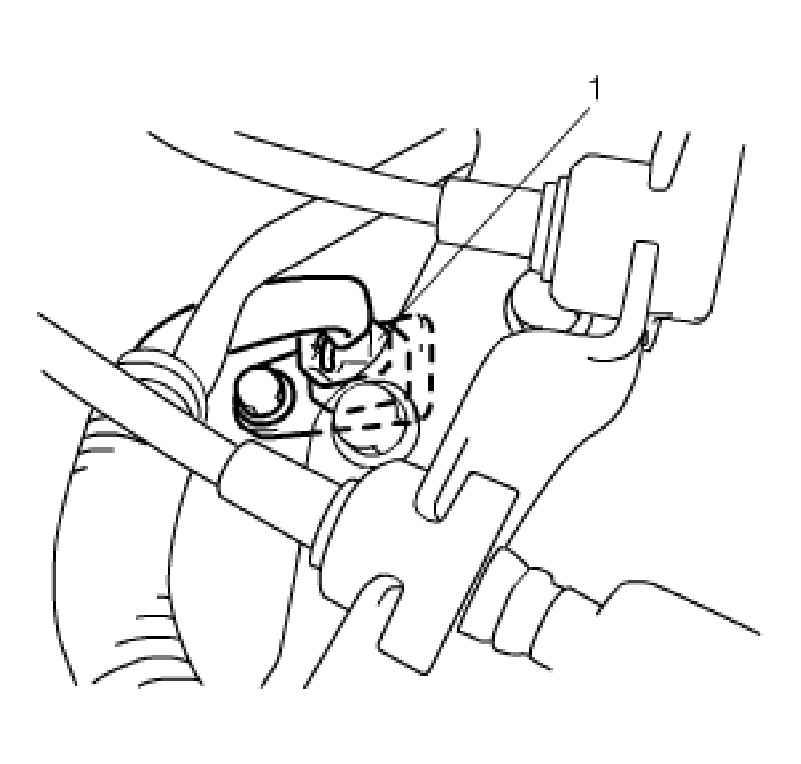

Fig 2: Connecting VSS Coupler
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative cable at battery.
