Gear Shift and Select Shaft Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove gear shift interlock bolt (1) and 5th to reverse interlock guide bolt (2) from transaxle case.
  2. Remove gear shift & select shaft assembly (3).

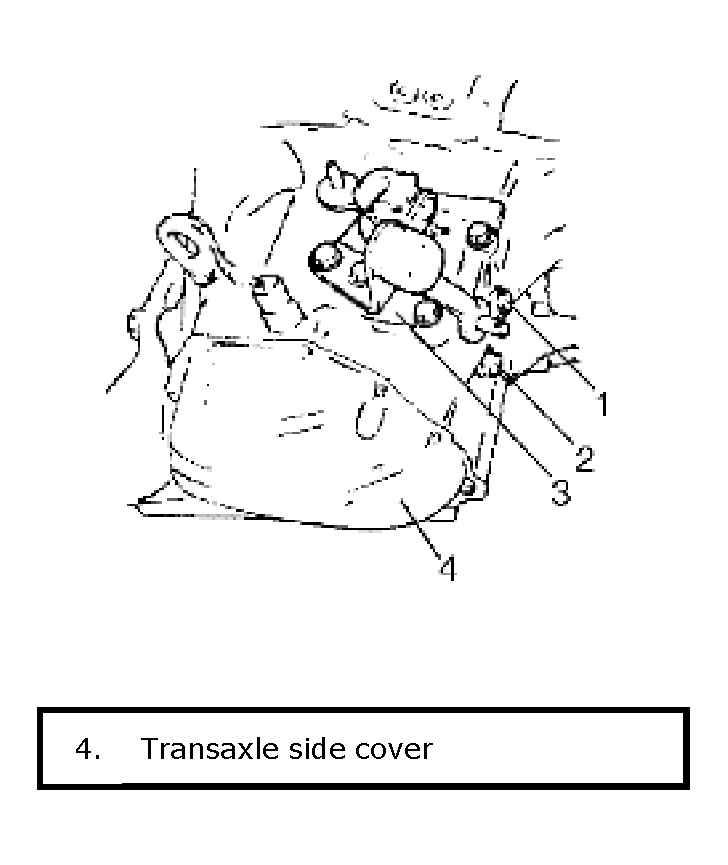

    Fig 1: Removing Gear Shift & Select Shaft Assembly
    G04592162Courtesy of SUZUKI OF AMERICA CORP.
