Gear Shift and Select Shaft Components

WARNING: This page is about a different variant/trim than selected.

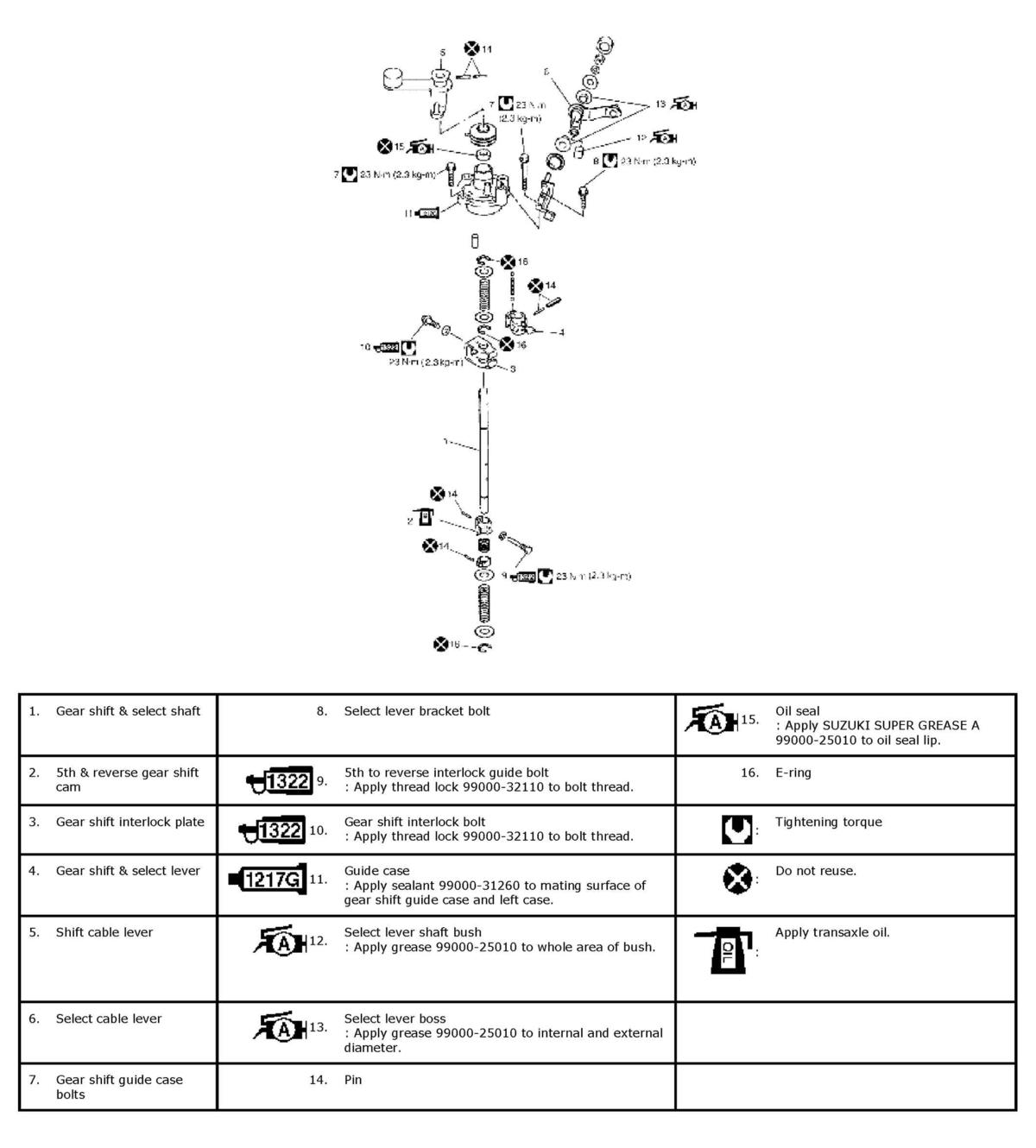

Fig 1: Identifying Gear Shift And Select Shaft Components (With Tightening Torques)
G04592161Courtesy of SUZUKI OF AMERICA CORP.
