Gear Shift Mechanism
WARNING: This page is about a different variant/trim than selected.

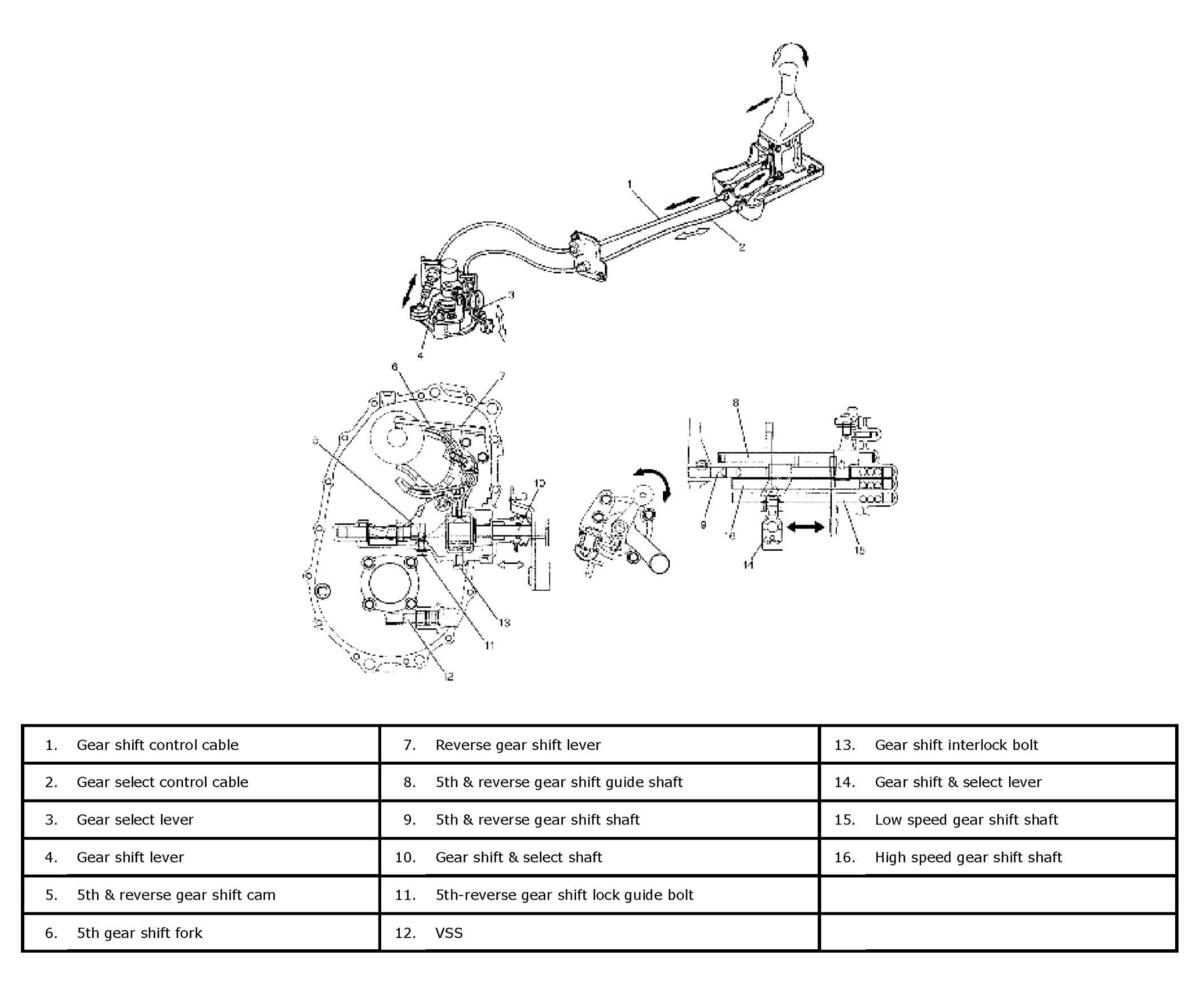

The gear shifting control system consists of the following main parts. Movement of gear shift control lever is transmitted to gear shift & select shaft through gear shift and gear select cables.
Courtesy of SUZUKI OF AMERICA CORP.
