Propeller Shaft Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure to install propeller shaft, noting following point.
- When installing propeller shaft, align the match marks (2). Otherwise, vibration may occur during driving.
- Use following specification to torque each bolt and nut.
  Tightening torque

  Propeller shaft No.1 bolts a: 23 N.m (2.3 kg-m, 17.0 lb-ft)

  Propeller shaft No.2 bolts b: 23 N.m (2.3 kg-m, 17.0 lb-ft)

  Center coupling bolts C: 23 N.m (2.3 kg-m, 17.0 lb-ft)

  Center support nuts B: 50 N.m (5.0 kg-m, 36.5 lb-ft)

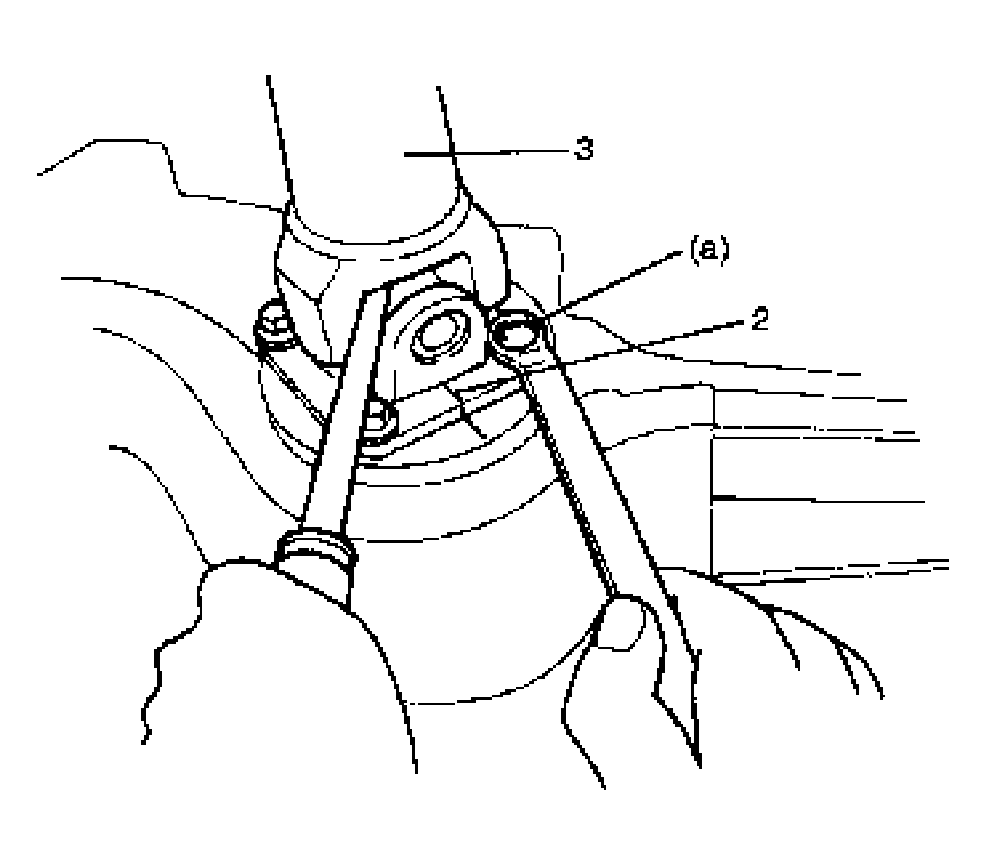

  Fig 1: Installing No 1 Propeller Shaft To Transfer Output Flange
  Courtesy of SUZUKI OF AMERICA CORP.

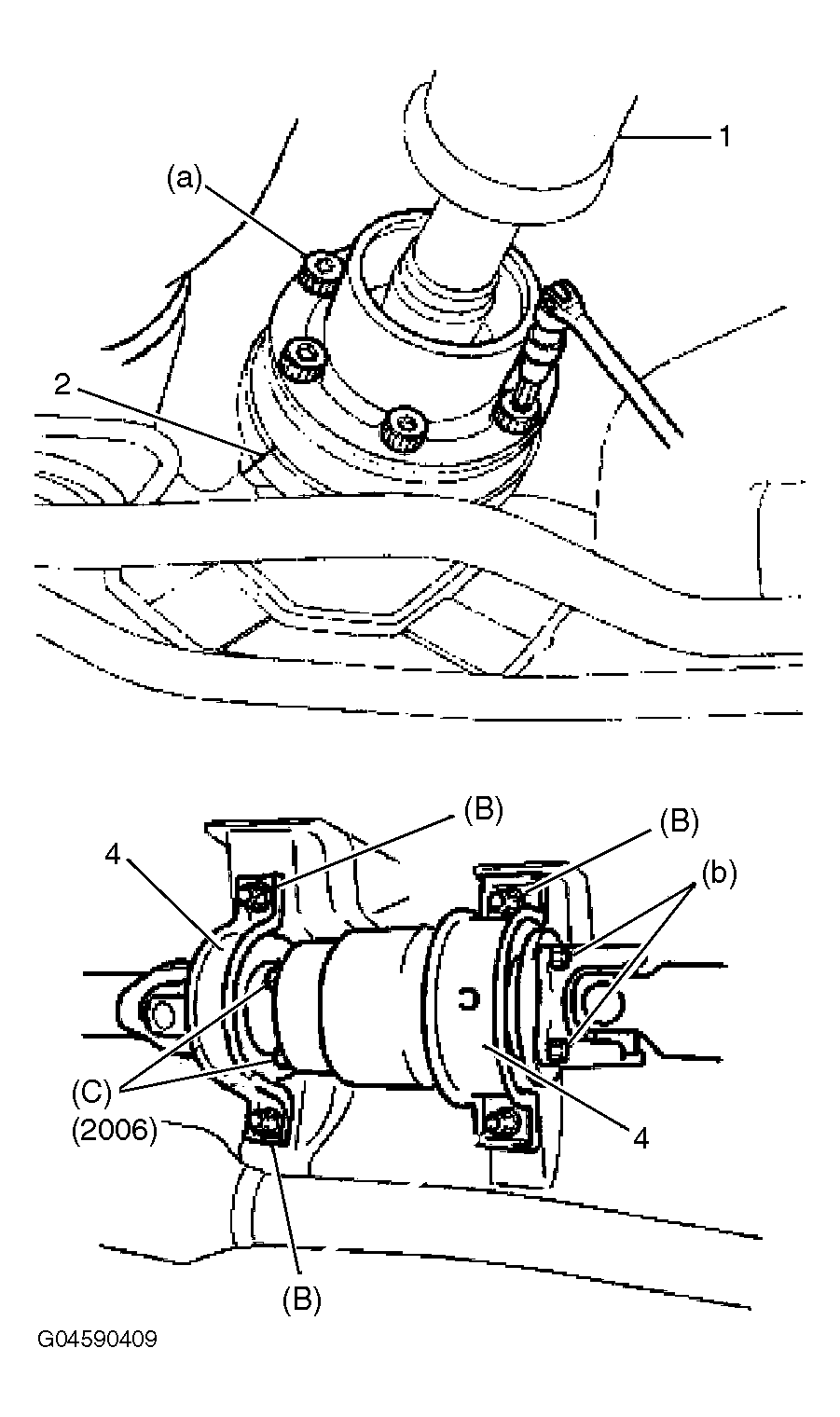

Fig 2: Installing Propeller Shaft Center Support Brackets

Courtesy of SUZUKI OF AMERICA CORP.
