Oil Pan and Oil Pump Strainer Removal and Installation: Installation

Reference: OIL PAN AND OIL PUMP STRAINER CLEANING

1. Apply sealant to oil pan (1) mating surface continuously as shown in figure.

   "A": Sealant 99000-31260

   Sealant amount for oil pan

   Width "a": 3 mm (0.12 in.)

   Height "b": 2 mm (0.08 in.)

   Fig 1: Applying Sealant To Oil Pan Mating Surface

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install O-rings (2) to oil pump strainer (1) securely as shown in figure.

   Tighten strainer bolts to specified torque.

   Tightening torque

   Oil pump strainer bolt a: 11 N.m (1.1 kg-m, 8.0 lb-ft)

3. After fitting oil pan (3) to cylinder block, run in securing bolts and start tightening at the center: move wrench outward, tightening one bolt at a time.

   Tighten bolts and nuts to specified torque.

   Tightening torque

   Oil pan bolt and nut b: 11 N.m (1.1 kg-m, 8.0 lb-ft)

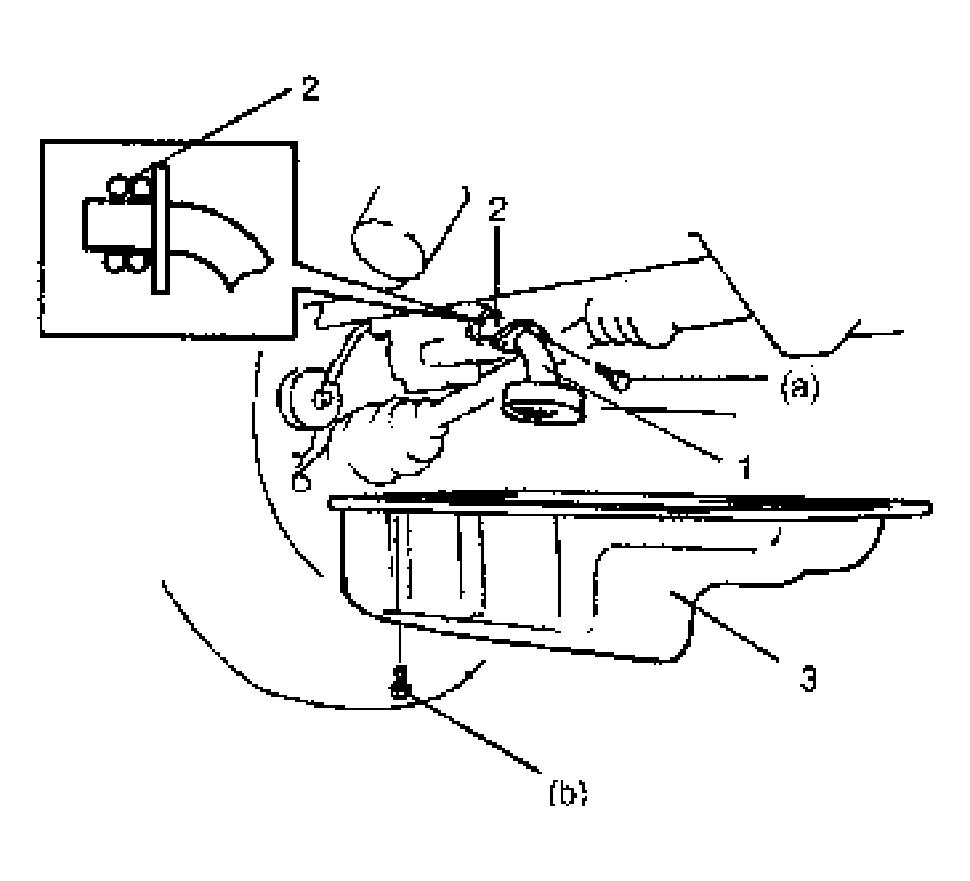

   Fig 2: Installing Oil Pump Strainer

   Courtesy of SUZUKI OF AMERICA CORP.
4. Install gasket and drain plug (1) to oil pan after applying engine oil.

   Tighten drain plug to specified torque.

   Tightening torque

   Oil drain plug a: 50 N.m (5.5 kg-m, 36.5 lb-ft)

   Fig 3: Installing Drain Plug

   Courtesy of SUZUKI OF AMERICA CORP.
5. Install transmission lower stiffener referring to MANUAL TRANSAXLE UNIT DISMOUNTING AND REMOUNTING or AUTOMATIC TRANSAXLE UNIT DISMOUNTING AND REMOUNTING .
6. Install mounting member for 2WD vehicle.

   Tighten bolts and nuts to specified torque.

   Tightening torque

   Engine mounting bolt and nut a: 55 N.m (5.5 kg-m, 40.0 lb-ft)

   Engine front and rear mounting nut b: 45 N.m (4.5 kg-m, 32.5 lb-ft)

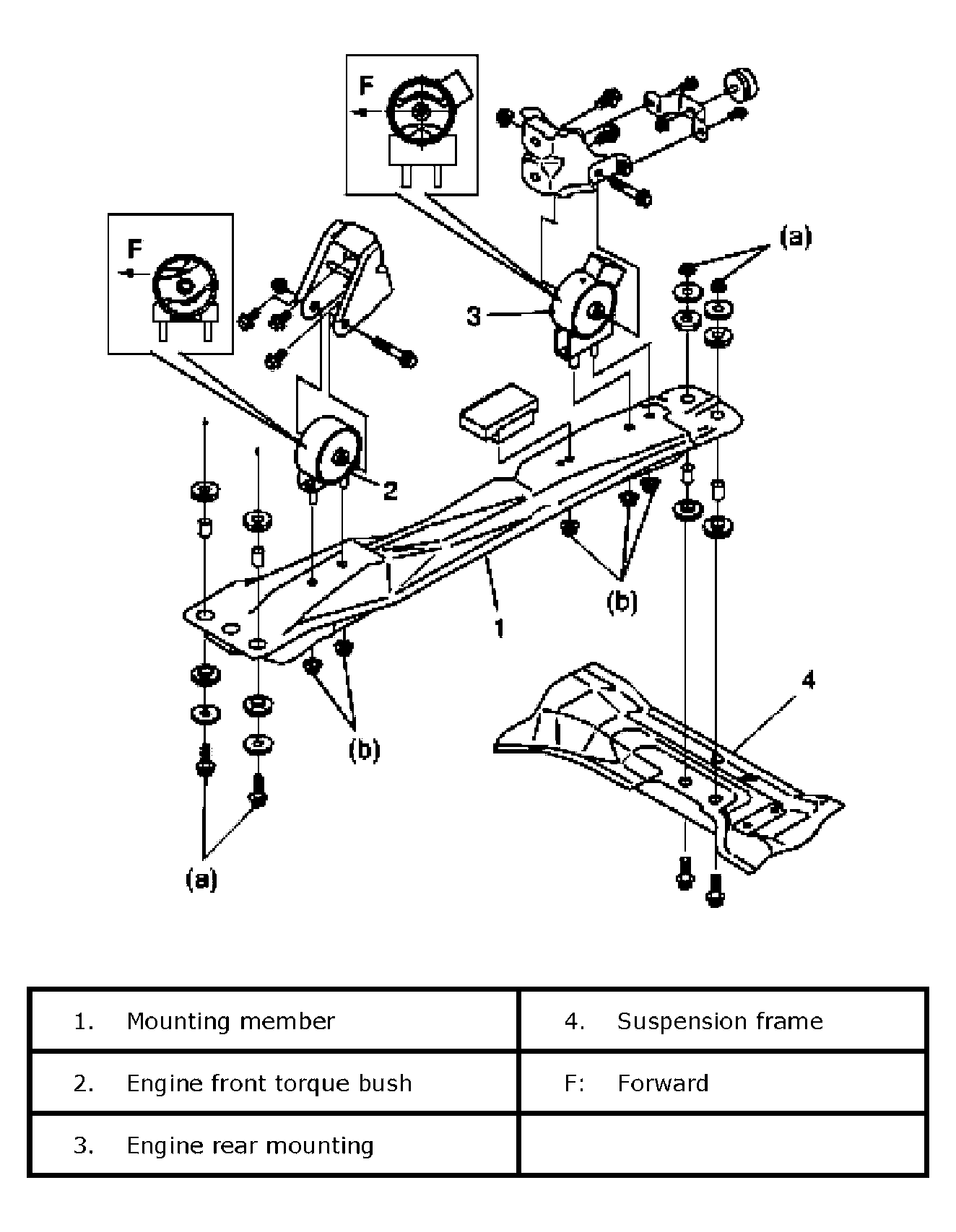

   Fig 4: Tightening Engine Mounting Bolt And Nut

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove engine support jack for 2WD vehicle.
8. Install exhaust No.1 pipe (1).

   Tighten bolts and nuts to specified torque.

9. Install exhaust No.1 pipe referring to EXHAUST SYSTEM COMPONENTS .
10. Install engine under cover(s).
11. Install oil level gauge.
12. Refill engine with engine oil referring to ENGINE OIL AND FILTER CHANGE .
