Thermostat Removal and Installation: Removal

  1. Drain coolant and tighten drain plug.
  2. Remove radiator outlet hose at thermostat cap.
  3. Remove thermostat cap (1).
  4. Remove thermostat.

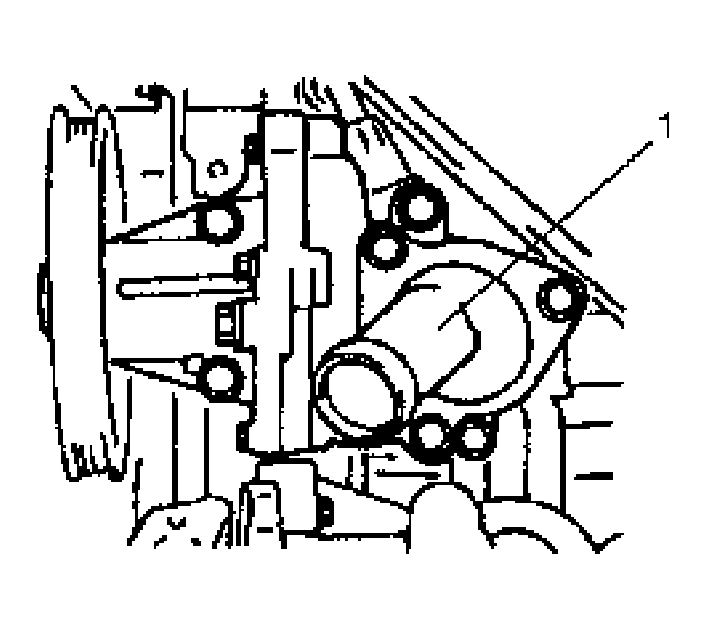

    Fig 1: Identifying Thermostat Cap
    G04589952Courtesy of SUZUKI OF AMERICA CORP.
