Radiator Cooling Fan Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Remove condenser cooling fan (if equipped with A/C).
  3. Disconnect connector of radiator cooling fan motor.
  4. Remove radiator cooling fan motor (1) from radiator (2).

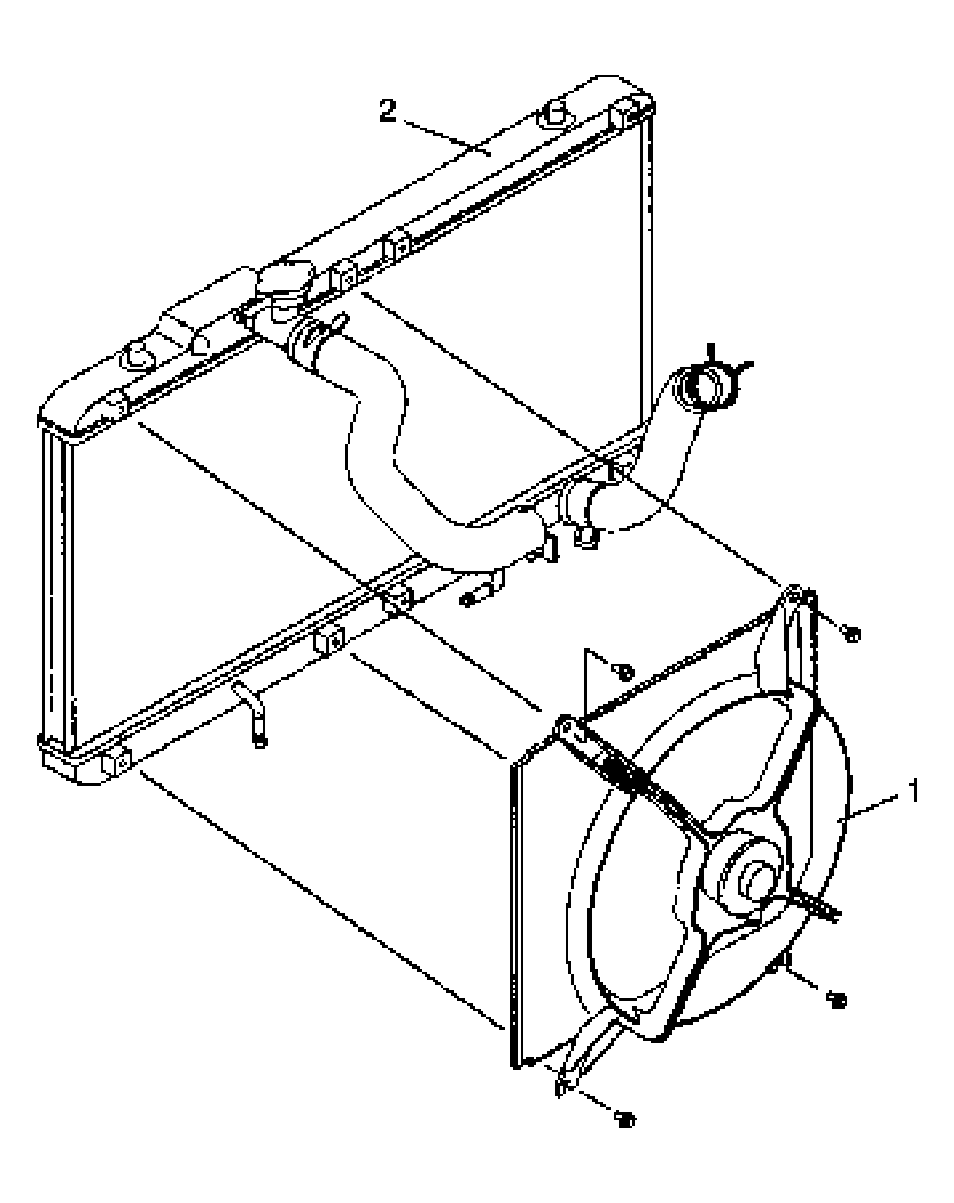

    Fig 1: Removing Radiator Cooling Fan Motor From Radiator
    G04589959Courtesy of SUZUKI OF AMERICA CORP.
