Woofer Speaker Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Remove driver side front seat referring to FRONT SEAT REMOVAL AND INSTALLATION: SEDAN or FRONT SEAT REMOVAL AND INSTALLATION: WAGON .
  3. Remove 4 speaker mounting screws (1).
  4. Disconnect speaker coupler (2) from woofer speaker (3).

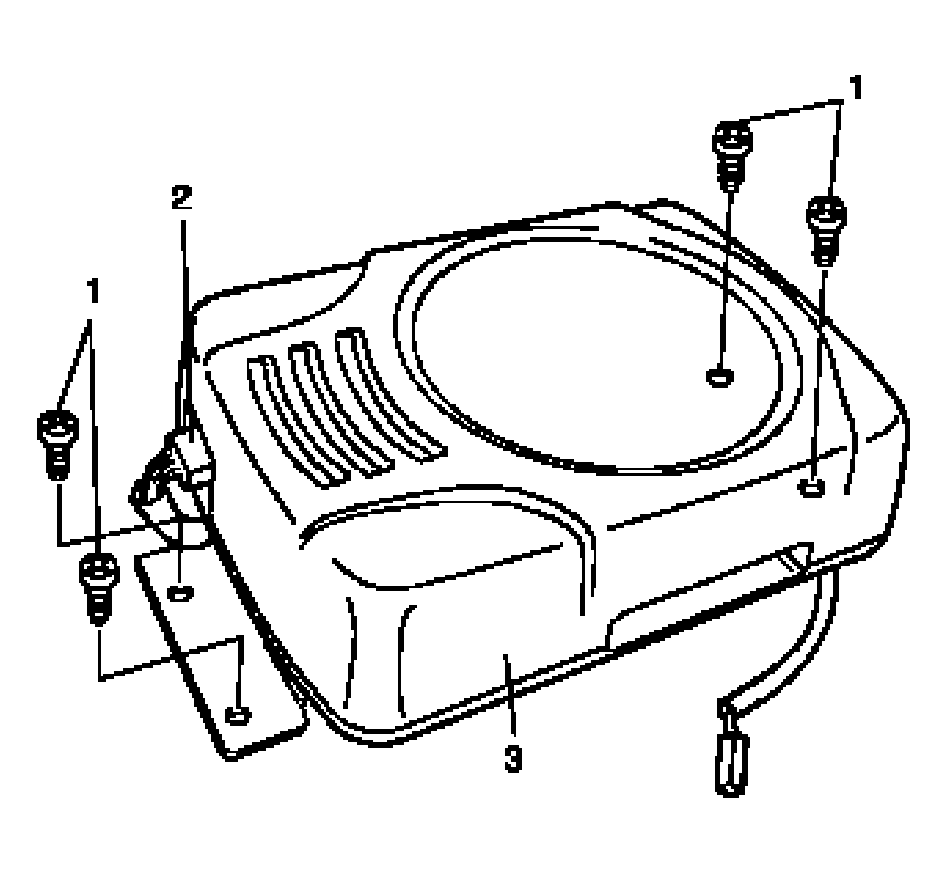

    Fig 1: Removing Speaker Mounting Screws (1)
    G04591608Courtesy of SUZUKI OF AMERICA CORP.
