Rearend Door Switch (for Wagon Model) Inspection

Check for continuity between terminal "a" and "b" shown in the following.

If check result is not as specified, replace switch.

Rearend door switch (for 5 door model) specification

Rearend door closed: No continuity

Rearend door opened: Continuity

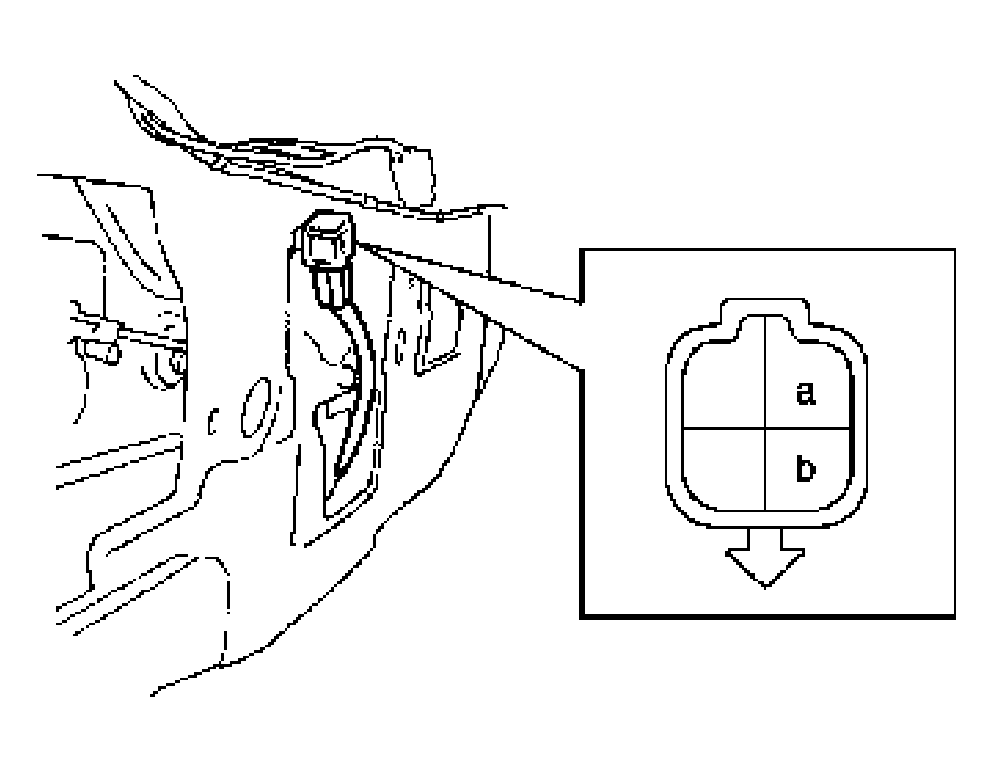

Fig 1: Locating Rearend Door Switch (For Wagon Model) Terminals "a" And "b"

Courtesy of SUZUKI OF AMERICA CORP.
