Information Display Removal and Installation: Removal

  1. Remove information display garnish (1) from instrument panel (2) pulling it arrow direction as shown.
  2. Remove 2 mounting screws of information display (3).
  3. Remove information display (3) from instrument panel (2).
  4. Disconnect information display coupler.

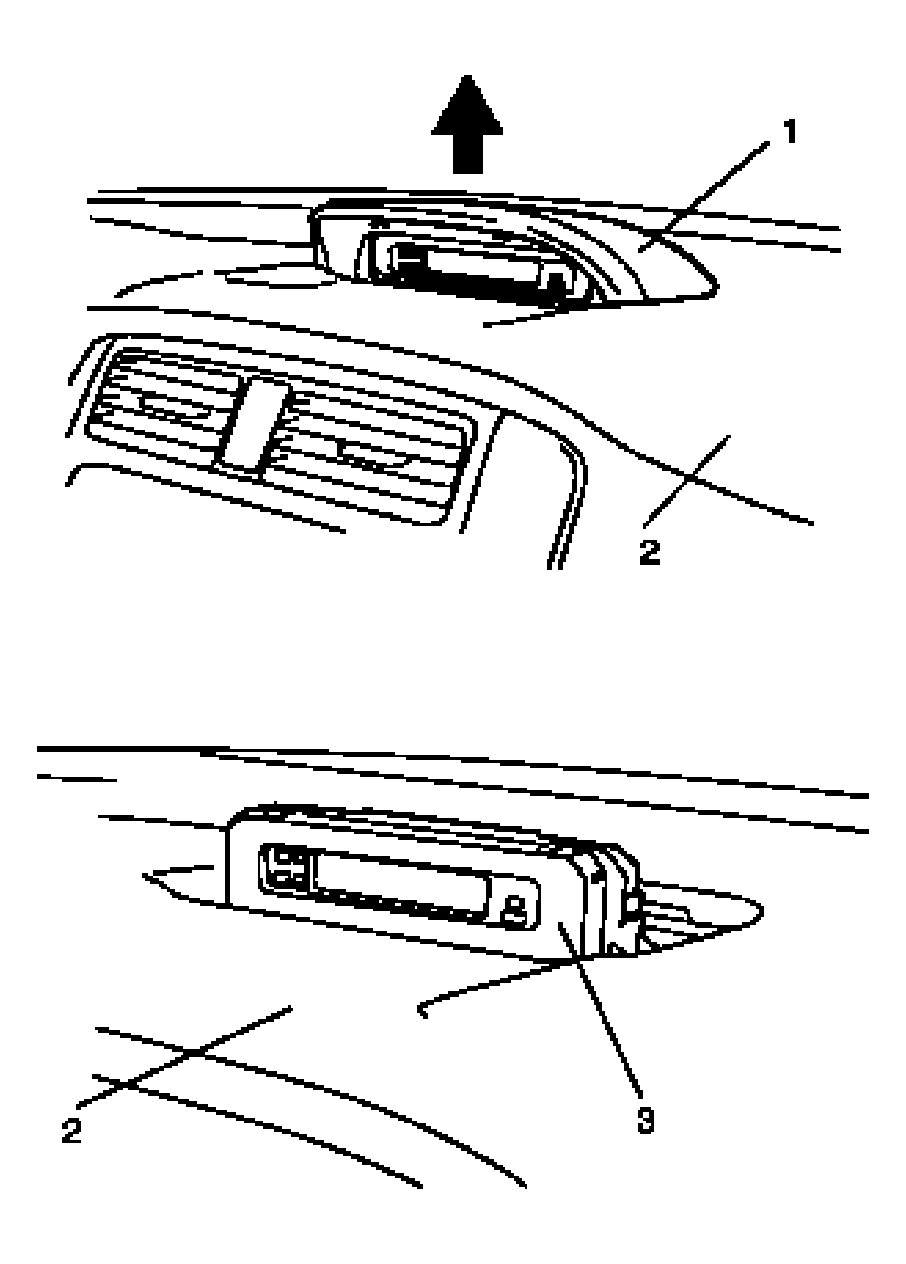

    Fig 1: Identifying Information Display Garnish (1) From Instrument Panel (2) Removal Directions
    G04591598Courtesy of SUZUKI OF AMERICA CORP.
