Propeller Shaft Disassembly And Reassembly: Reassembly
- Reverse disassembly procedure to reassemble propeller shaft, noting following point:

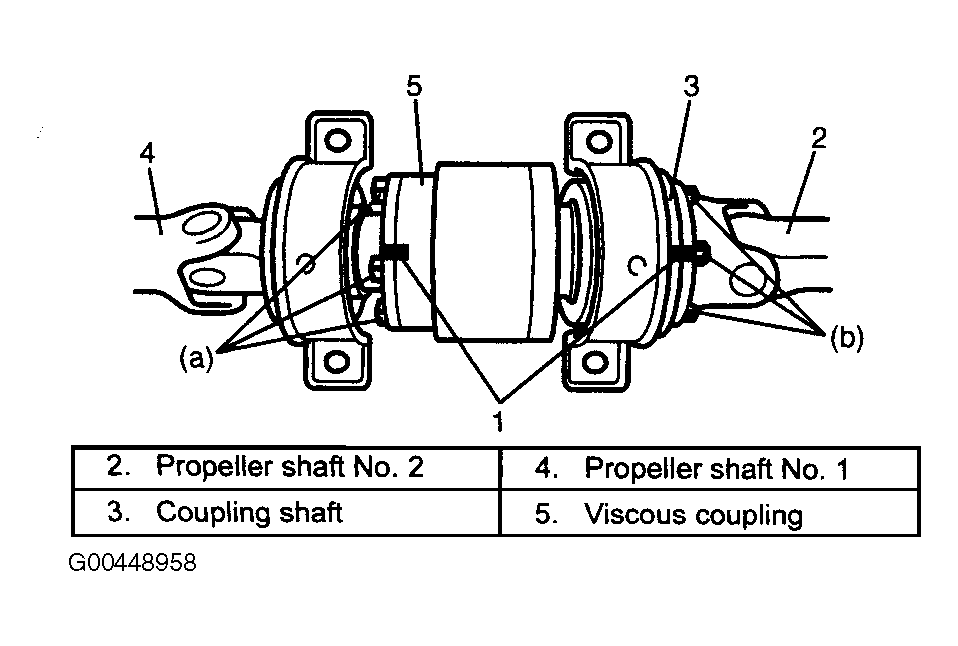

- When installing propeller shaft, align match marks (1), otherwise vibration may occur during driving. Use following specification to torque bolts and nut.
- Tightening torque: Center coupling bolt (a): 23 N.m (2.3kgf-m, 17 ft. lbs.), Propeller shaft No. 2 bolt (b): 23 N.m (2.3 kgf-m, 10 ft. lbs)
