Rear Differential Front Mounting Removal and Installation: Removal

  1. Hoist vehicle.
  2. Remove mounting bracket bolts (1), mounting bolt (2), nut (3) and differential front mounting (4).

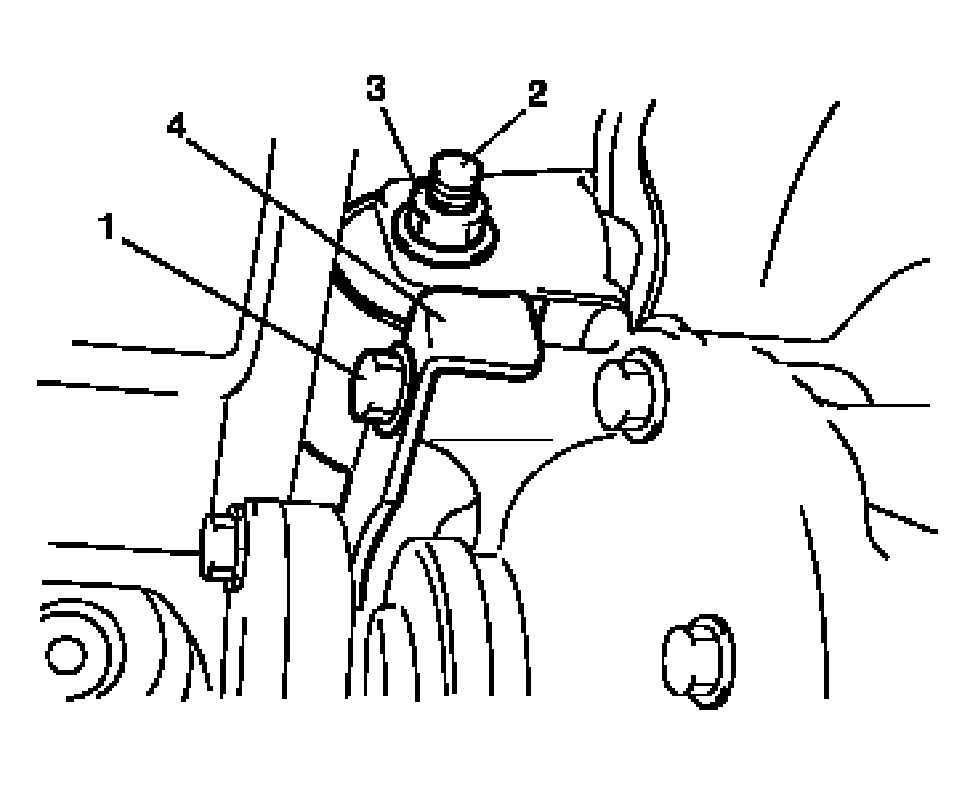

    Fig 1: Removing Mounting Bracket Bolts
    G04590333Courtesy of SUZUKI OF AMERICA CORP.
  3. Drive mounting out with special tools and hydraulic press (1).

    Special Tool

    1. 09951-16080
    2. 09951-26020
      Fig 2: Pressing Drive Mounting
      G04590334Courtesy of SUZUKI OF AMERICA CORP.
