Differential Case

1. After applying differential oil to side gears (4), pinions (5), pinion shaft (3), side washers (1) and pinion washers (2), install them in differential case (6).
   NOTE: Used left and right differential side washers are not interchangeable.
   Fig 1: Locating Differential Case Components Location

   Courtesy of SUZUKI OF AMERICA CORP.
2. Check pinion gear (1) for smooth rotation.
   Fig 2: Checking Pinion Gear Rotation

   Courtesy of SUZUKI OF AMERICA CORP.
3. Align pinion shaft hole position with differential case and drive in differential pinion shaft pin till they are flush with end surface of case.

   Special Tool

   1. 09922-85811
      Fig 3: Aligning Pinion Shaft Hole Position With Differential Case

      Courtesy of SUZUKI OF AMERICA CORP.

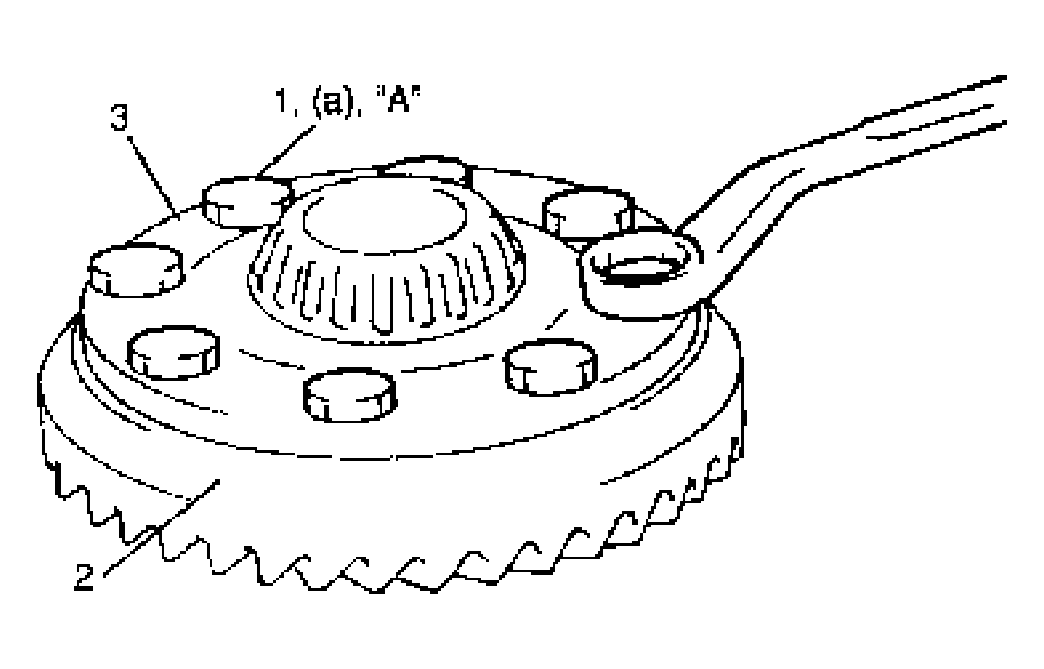

4. Apply thread lock cement to thread of bevel gear bolts (1).
5. Put bevel gear (2) on differential case (3) and fasten them with 8 bolts (1) by tightening them to specified torque.
   CAUTION: Use of any other bolts than that specified is prohibited.

"A": Thread lock cement 99000-32110

Tightening torque

Bevel gear bolts (a): 73 N.m (7.3 kg-m, 52.0 lb-ft)

Fig 4: Checking Thread Lock Cement

Courtesy of SUZUKI OF AMERICA CORP.
