Differential Carrier

  1. Press-fit bevel pinion bearing outer races to differential carrier (1) by using special tools as shown in figure.

    Special Tool

    1. 09924-74510
    2. 09951-16090

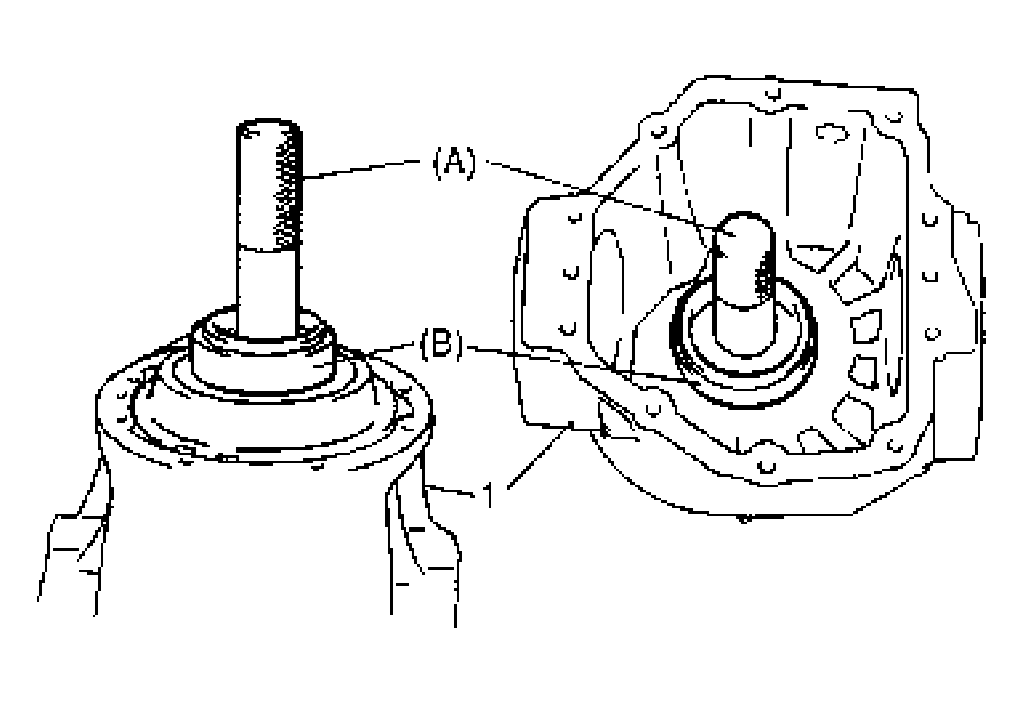

      Fig 1: Identifying Bevel Pinion Bearing Outer Races To Differential Carrier
      G04590357Courtesy of SUZUKI OF AMERICA CORP.
