Front Drive Shaft Disassembly and Assembly: Disassembly

For tripod joint type drive shaft

  1. Remove differential side boot big band, and then take out joint housing (1).
    Fig 1: Removing Differential Side Boot Big Band
    G04590287Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove grease from shaft and snap ring (1) by using special tool, and then pull out spider (2) from shaft.

    Special Tool

    1. 09900-06107
      CAUTION: To prevent degreasing of spider needle bearing, do not wash it if it is to be reused.

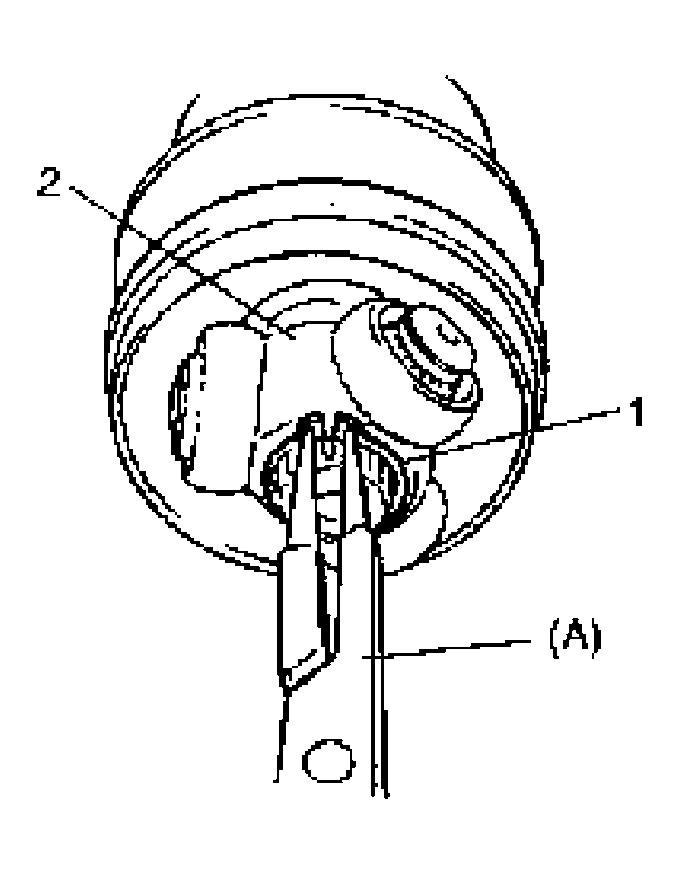

      Fig 2: Removing Snap Ring
      G04590288Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove differential side boot small band, and then pull out differential, transfer, or center shaft side boot from shaft.
  4. Remove damper band, and then pull out damper through shaft.
  5. Remove boot bands of wheel side boot.
  6. Pull out wheel side boot from shaft.
    CAUTION:
    • Disassembly of wheel side joint is not allowed. If any noise or damage exists in it, replace it as assembly.
    • Do not disassemble spider. If any malcondition is found in it, replace it as differential side joint assembly.

For DOJ type drive shaft

  1. Remove boot big band (1) of differential side boot.
    Fig 3: Removing Boot Big Band
    G04590289Courtesy of SUZUKI OF AMERICA CORP.
  2. Slide boot (1) toward the center of shaft and remove circlip (2) from outer race, and then take shaft out of joint housing (3).

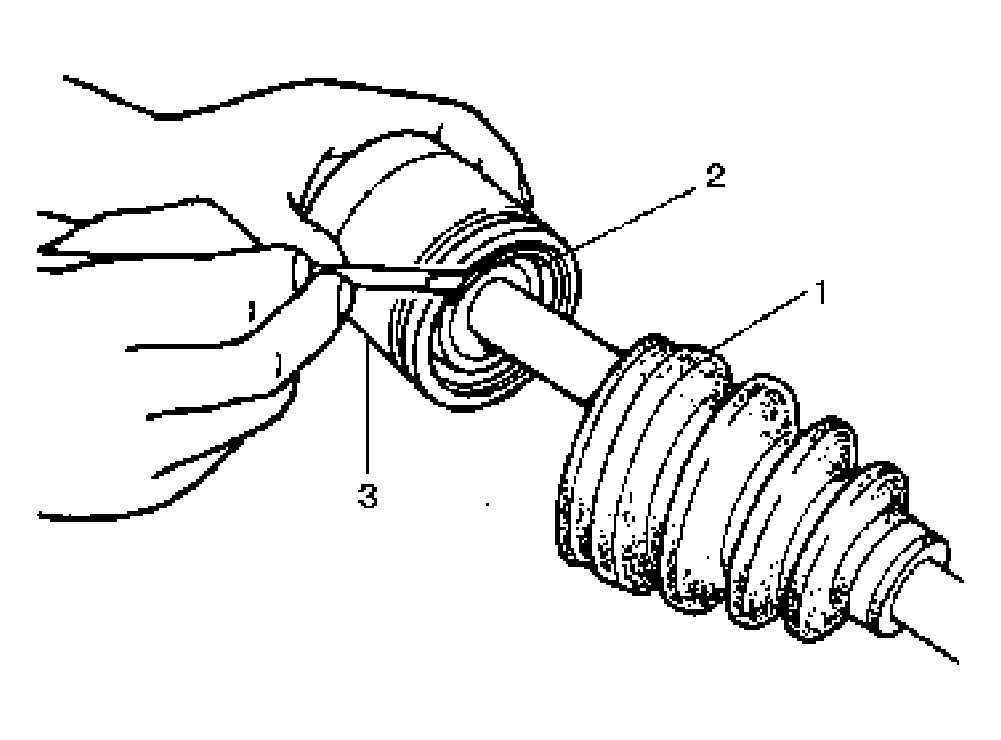

    Fig 4: Removing Circlip
    G04590290Courtesy of SUZUKI OF AMERICA CORP.
  3. Wipe off grease and remove snap ring (1) used to fix cage (2) by using special tool (A).

    Special Tool

    1. 09900-06107

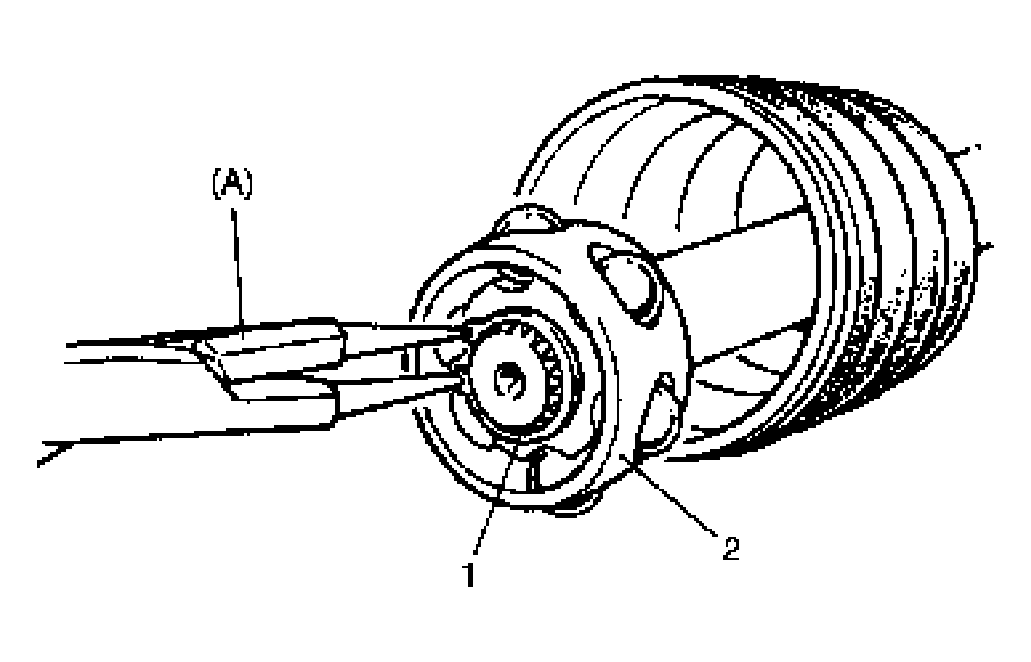

      Fig 5: Removing Snap Ring
      G04590291Courtesy of SUZUKI OF AMERICA CORP.
  4. Pull out cage (1) from shaft by using bearing puller (2).
    Fig 6: Pulling Out Cage From Shaft
    G04590292Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove differential side boot small band, and then pull out differential side boot from shaft.
  6. Pull out damper through shaft. (if equipped)
  7. Remove boot bands of wheel side boot, and then pull out wheel side boot through shaft.
    CAUTION: Do not disassemble wheel side joint. If any abnormality is found, replace it as assembly.

For center shaft and center bearing support

  1. By using hydraulic press (1), draw out center shaft (2) from center shaft support bracket (3).
  2. Remove oil seals (4) from center shaft support bracket.
    Fig 7: Removing Oil Seals
    G04590293Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove circlip (1) using special tool.

    Special Tool

    1. 09900-06108
    2. Remove center shaft support bearing from center shaft support bracket (2).
      Fig 8: Removing Center Shaft Support Bearing From Center Shaft Support Bracket
      G04590294Courtesy of SUZUKI OF AMERICA CORP.
