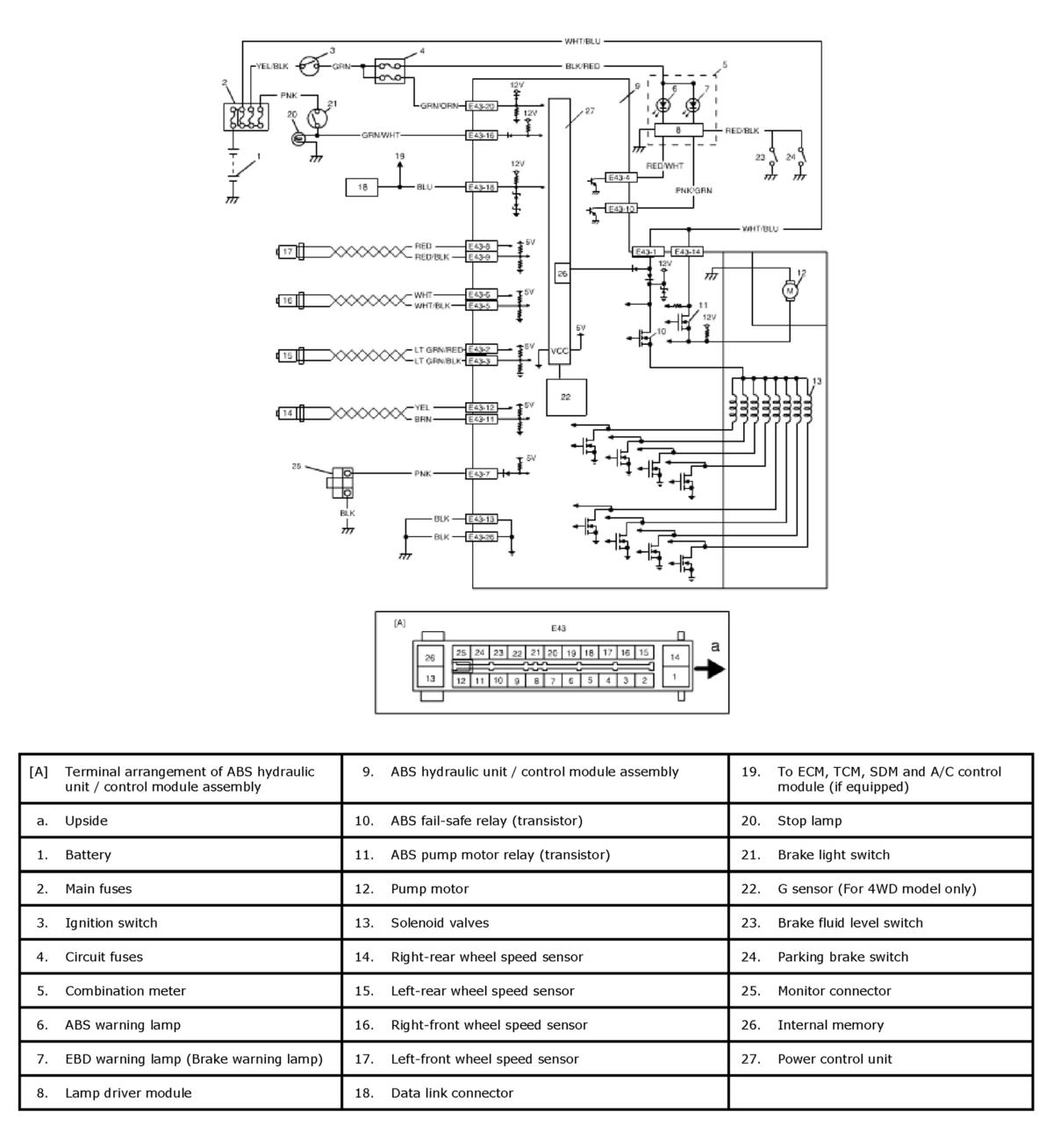

ABS Wiring Circuit Diagram
TERMINAL CIRCUIT DESCRIPTION
| Terminal | Circuit | |
|---|---|---|
| E43 | 1 | ABS fail-safe relay (transistor) |
| 2 | Left-rear wheel speed sensor (+) | |
| 3 | Left-rear wheel speed sensor (-) | |
| 4 | ABS warning lamp | |
| 5 | Right-front wheel speed sensor (-) | |
| 6 | Right-front wheel speed sensor (+) | |
| 7 | Monitor connector | |
| 8 | Left-front wheel speed sensor (+) | |
| 9 | Left front wheel speed sensor (-) | |
| 10 | EBD warning lamp (Brake warning lamp) | |
| 11 | Right-rear wheel speed sensor (-) | |
| 12 | Right-rear wheel speed sensor (+) | |
| 13 | Ground | |
| 14 | ABS pump motor relay (transistor) | |
| 15 | - | |
| 16 | Brake light switch | |
| 17 | - | |
| 18 | Data link connector | |
| 19 | - | |
| 20 | Ignition switch | |
| 21 | - | |
| 22 | - | |
| 23 | - | |
| 24 | - | |
| 25 | - | |
| 26 | Ground | |
