Rear Wheel Speed Sensor Ring On-Vehicle Inspection

Reference: REAR WHEEL SPEED SENSOR REMOVAL AND INSTALLATION

• Check ring serration (teeth) for being missing, damaged or deformed.
• Turn wheel and check if ring rotation is free from eccentricity and looseness.
• Check that no foreign material is attached.

  If any faulty is found, repair or replace.

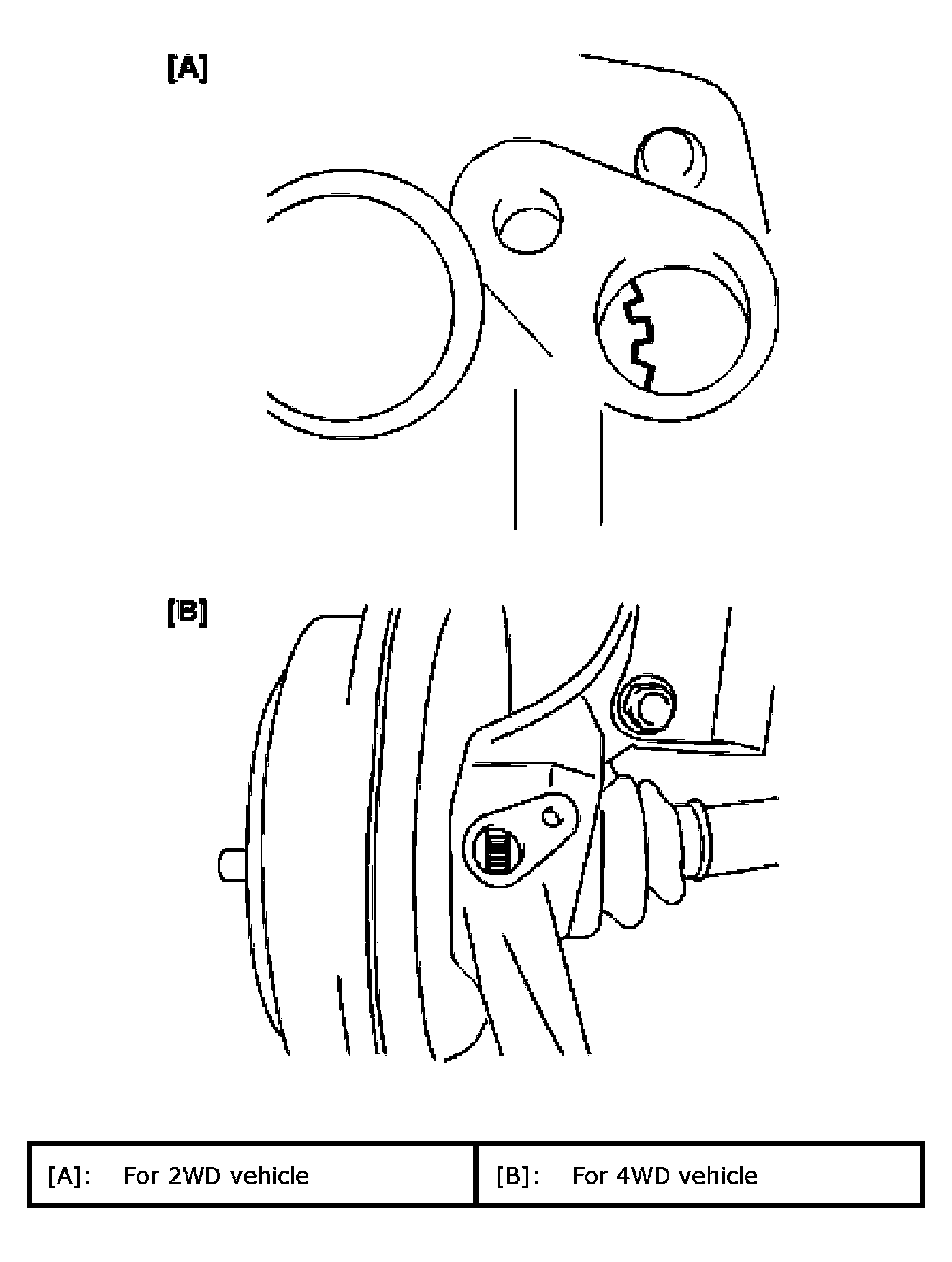

  Fig 1: Checking Rear Wheel Speed Sensor Ring

  Courtesy of SUZUKI OF AMERICA CORP.
