Rear Wheel Speed Sensor Removal and Installation: Installation

Reference: REAR WHEEL SPEED SENSOR INSPECTION

Reverse removal procedure for installation noting the following.

• Check that no foreign material is attached to sensor and ring (1).

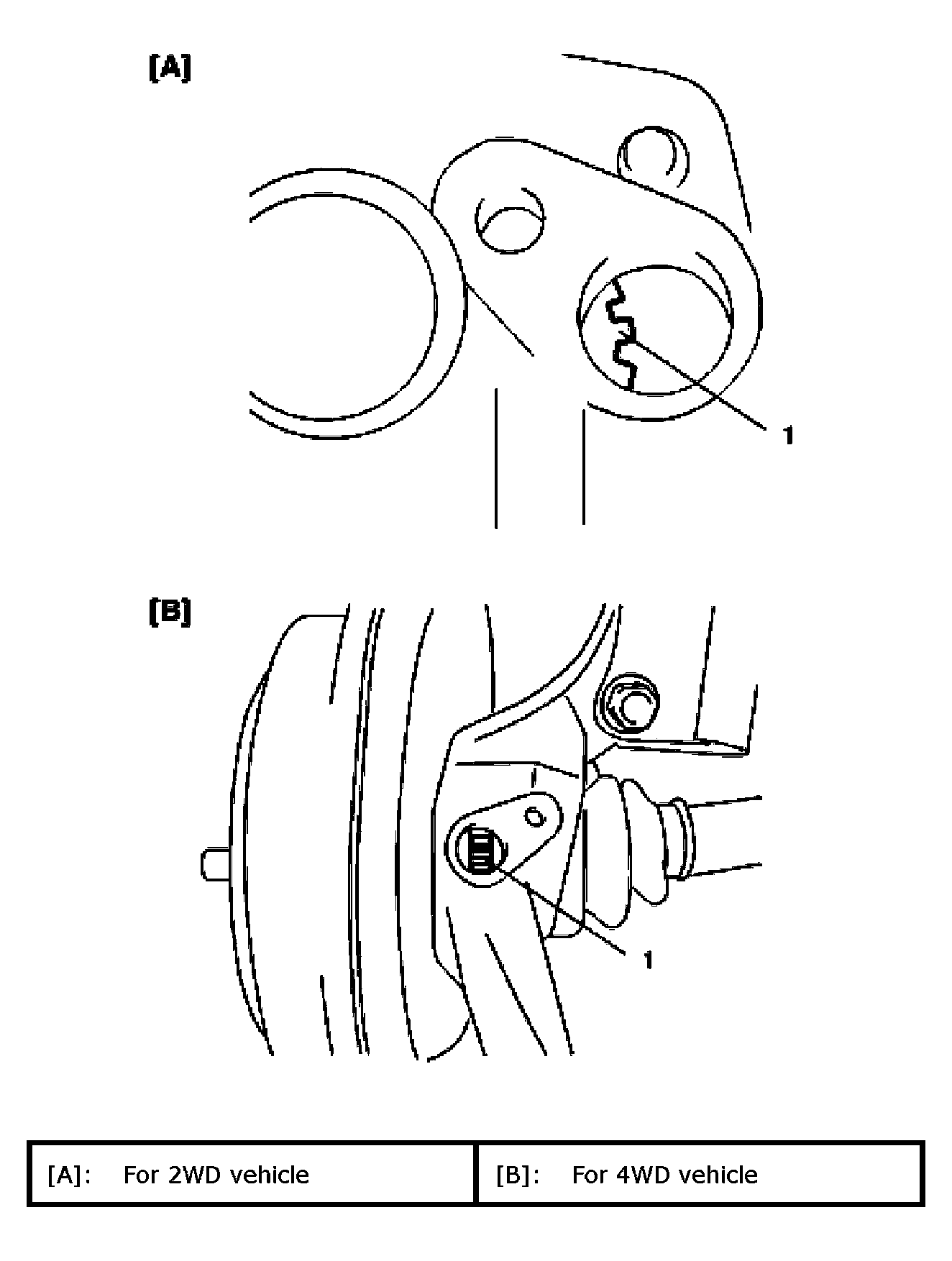

  Fig 1: Checking Rear Wheel Speed Sensor Ring

  Courtesy of SUZUKI OF AMERICA CORP.
• Be sure to install wheel speed sensor (2) and its bolt at the correct (upper) position as shown in figure. Tighten sensor bolt (1) to specified torque.

  Tightening torque

  Rear wheel speed sensor bolt a: 23 N.m (2.3 kg-m, 17.0 lb-ft)

  CAUTION: Do not pull or twist wire harness more than necessary when installing rear wheel speed sensor.
• Check that there is no clearance between sensor and knuckle.

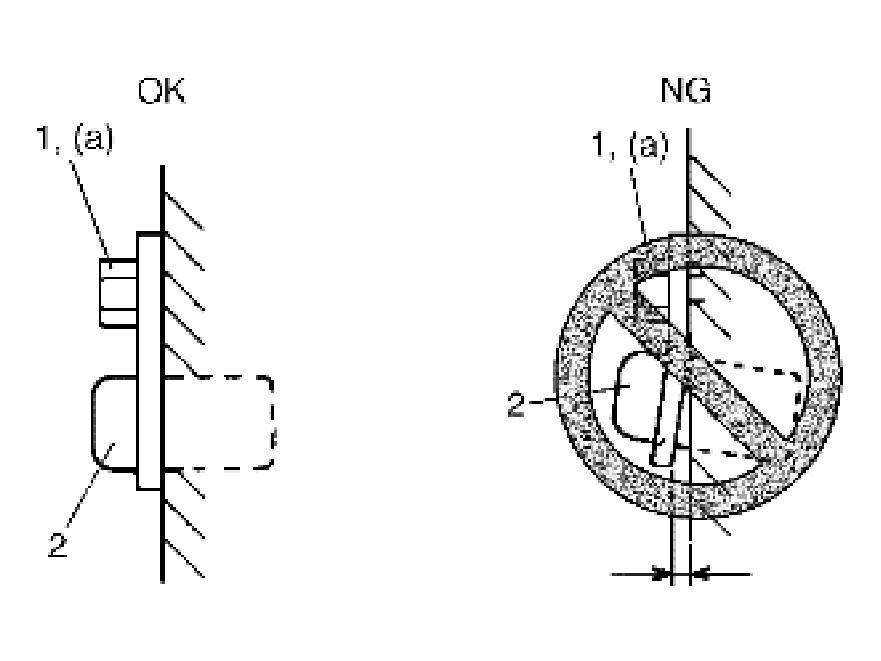

  Fig 2: Checking Clearance Between Sensor And Knuckle

  Courtesy of SUZUKI OF AMERICA CORP.
