ABS Warning Lamp Flashes Continuously while Ignition Switch Is ON: Wiring Diagram

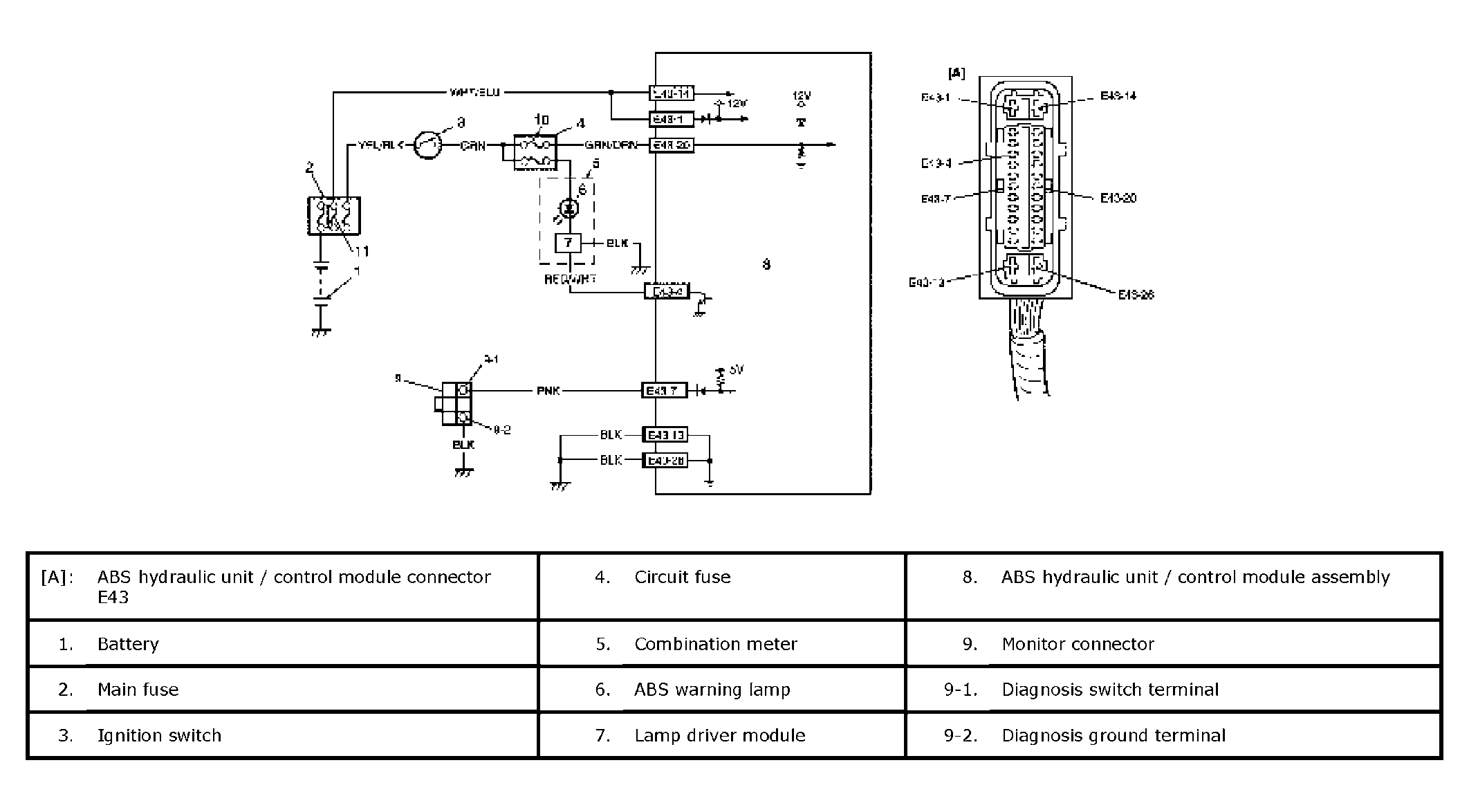

Fig 1: Wiring Diagram - ABS Warning Lamp Flashes Continuously While Ignition Switch ON
G04590511Courtesy of SUZUKI OF AMERICA CORP.
